Parts Location: Illustration

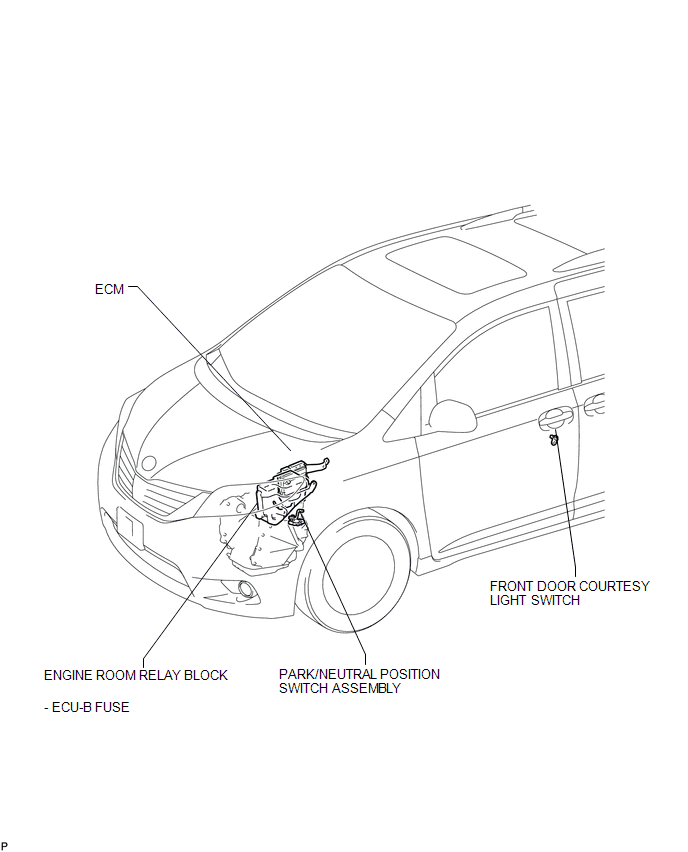

Fig 1: Front Power Seat Control System (w/ Memory) Components Location (1 Of 4)
GTY301669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

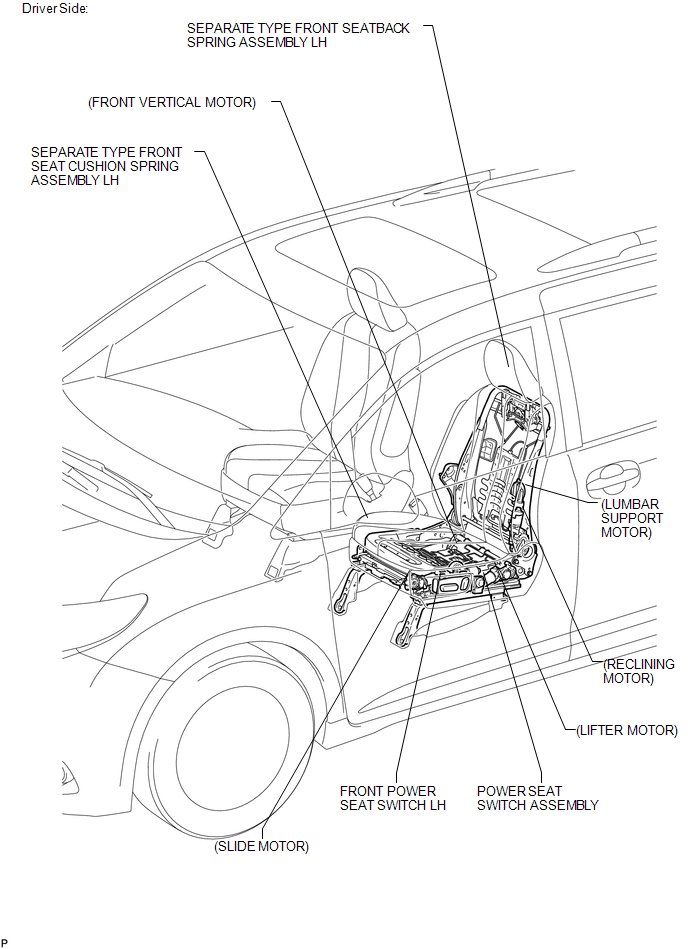

Fig 1: Front Power Seat Control System (w/ Memory) Components Location (2 Of 4)
GTY298950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

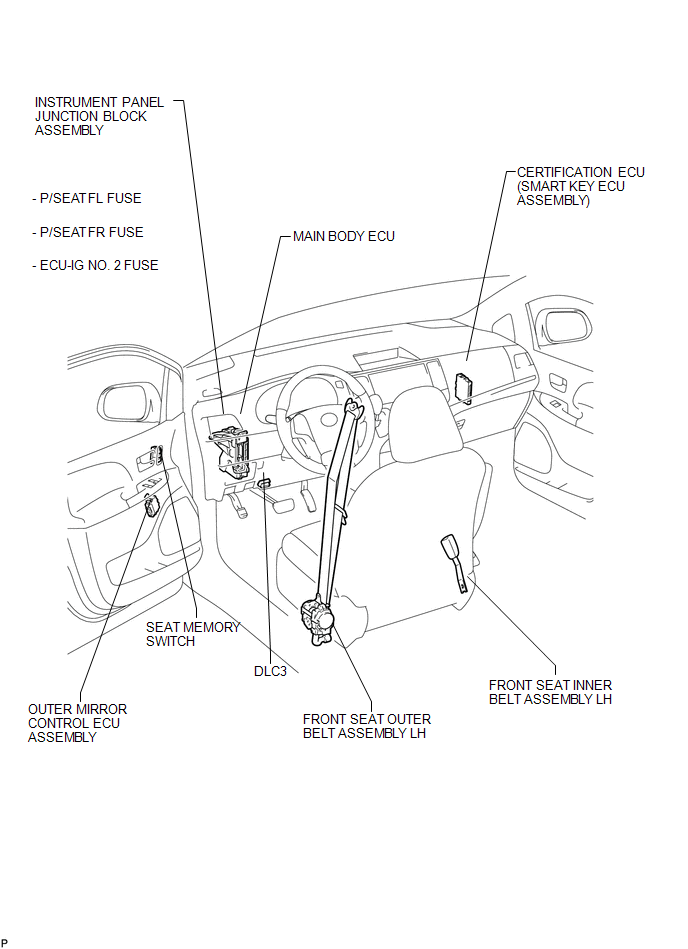

Fig 1: Front Power Seat Control System (w/ Memory) Components Location (3 Of 4)
GTY296313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

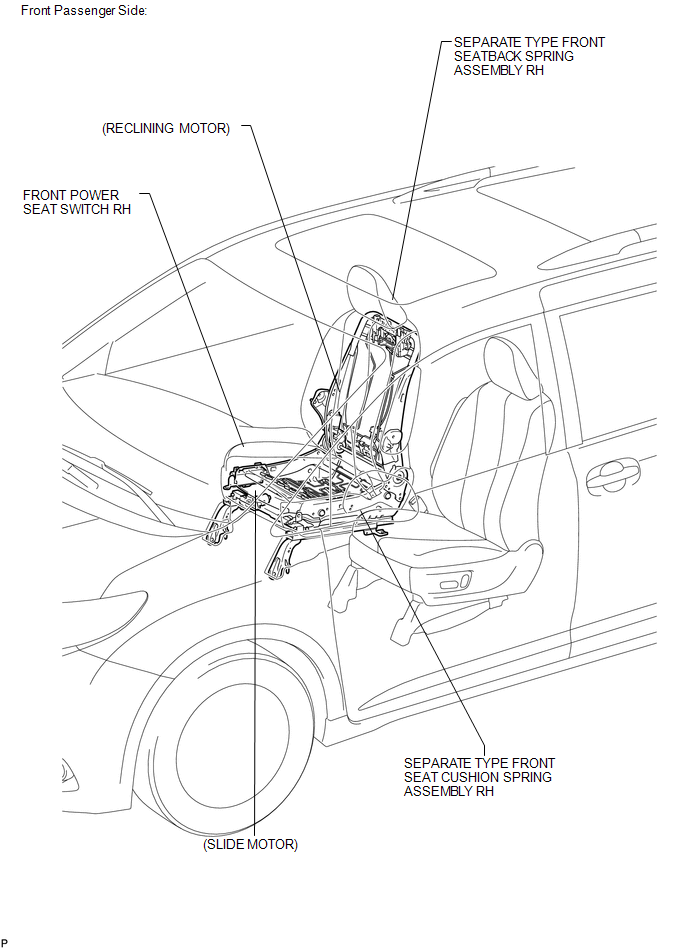

Fig 1: Front Power Seat Control System (w/ Memory) Components Location (4 Of 4)
GTY304261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
