Parts Location: Illustration

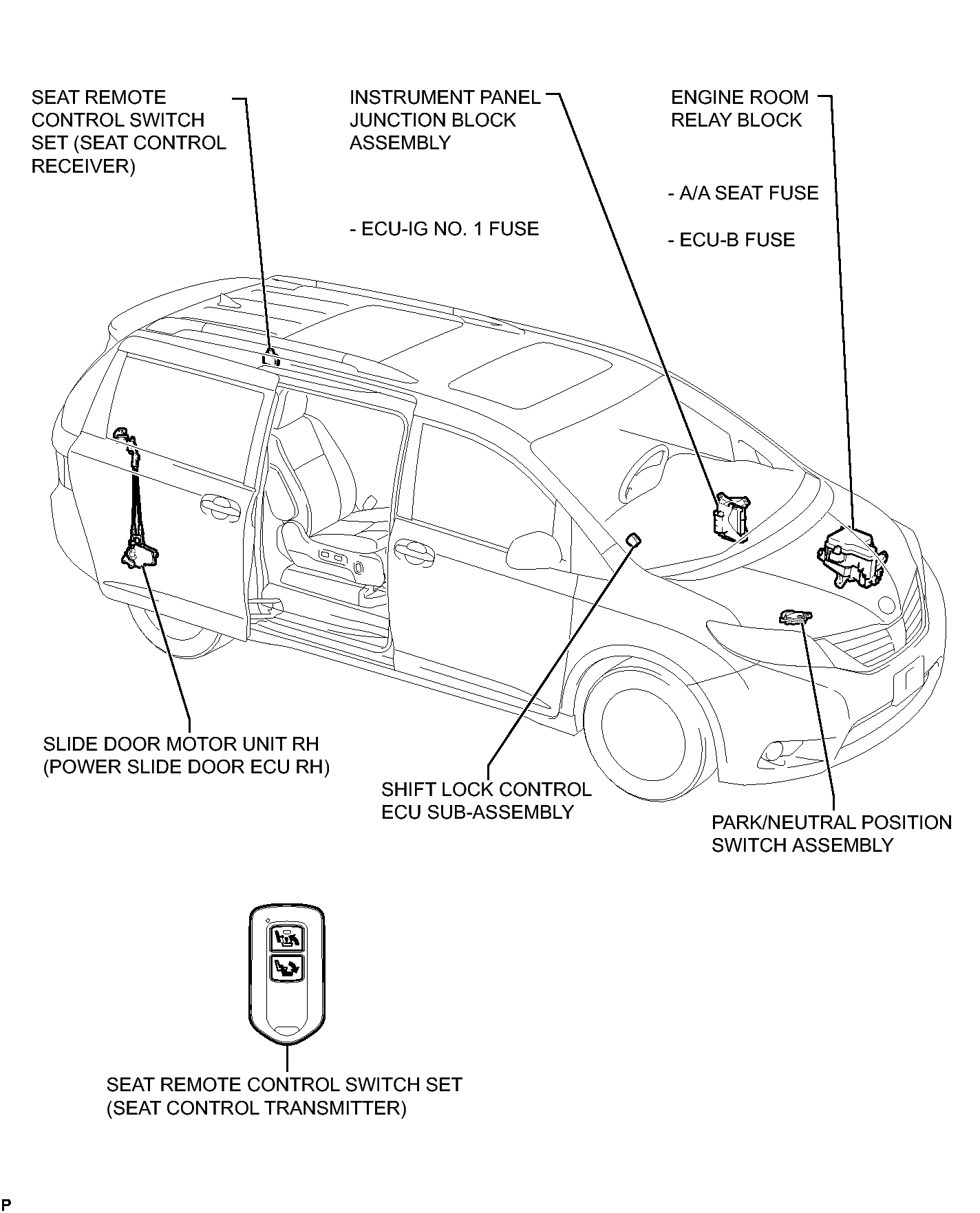

Fig 1: Auto Access Seat System Components Location (1 Of 3)
GTY302694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

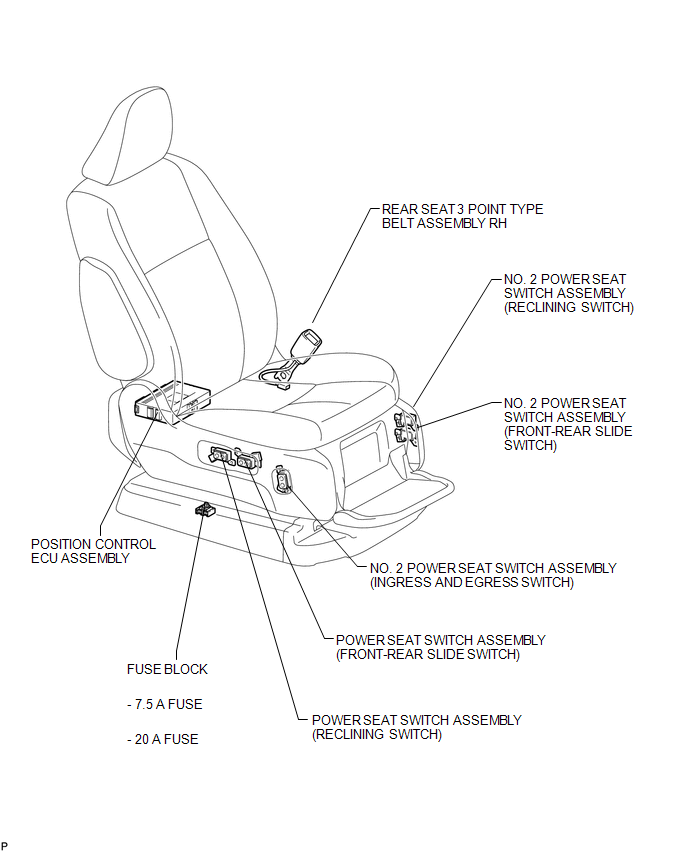

Fig 1: Auto Access Seat System Components Location (2 Of 3)
GTY305767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

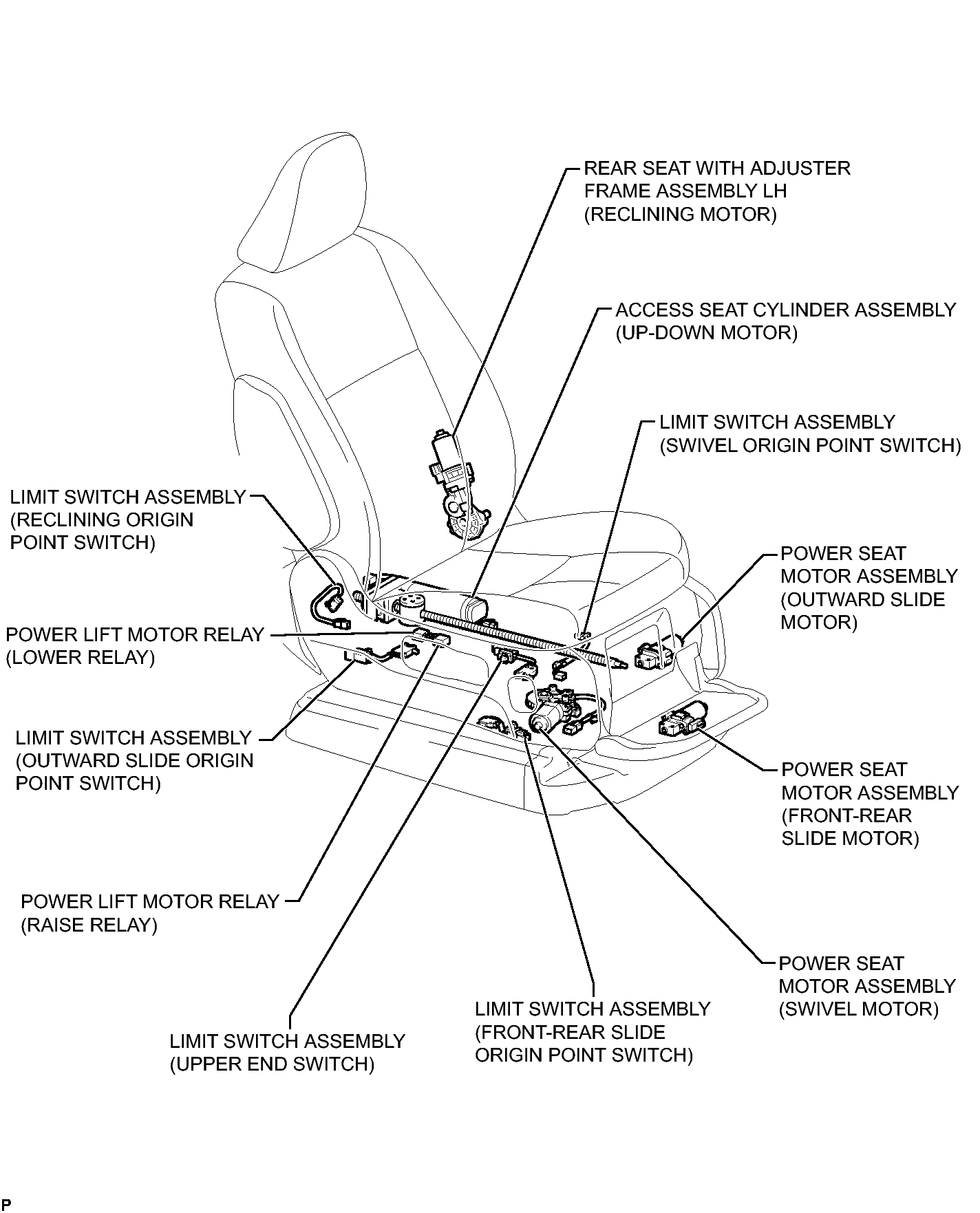

Fig 1: Auto Access Seat System Components Location (3 Of 3)
GTY299918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
