Parts Location: Illustration

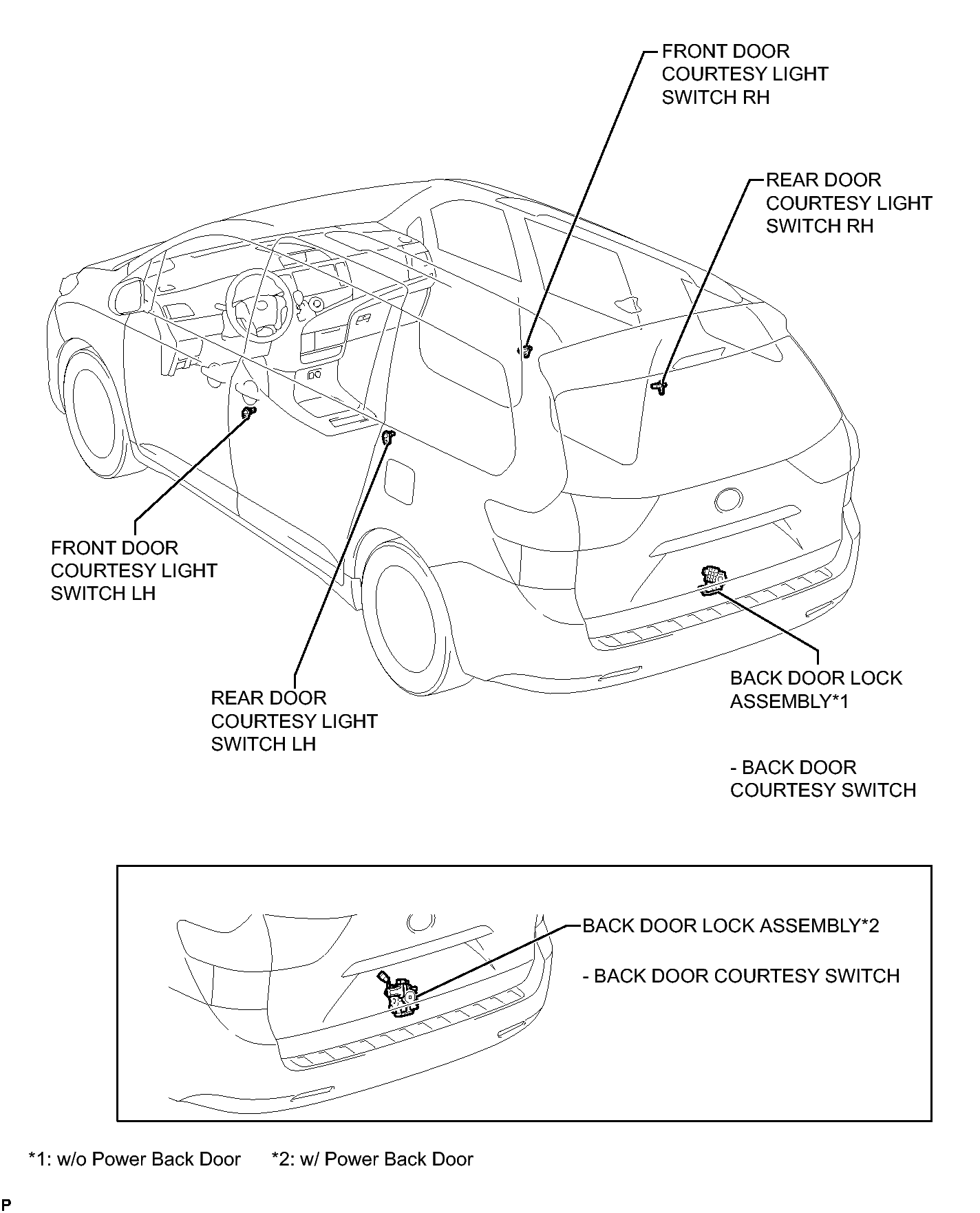

Fig 1: Lighting System Components Location (1 Of 5)
GTY302054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

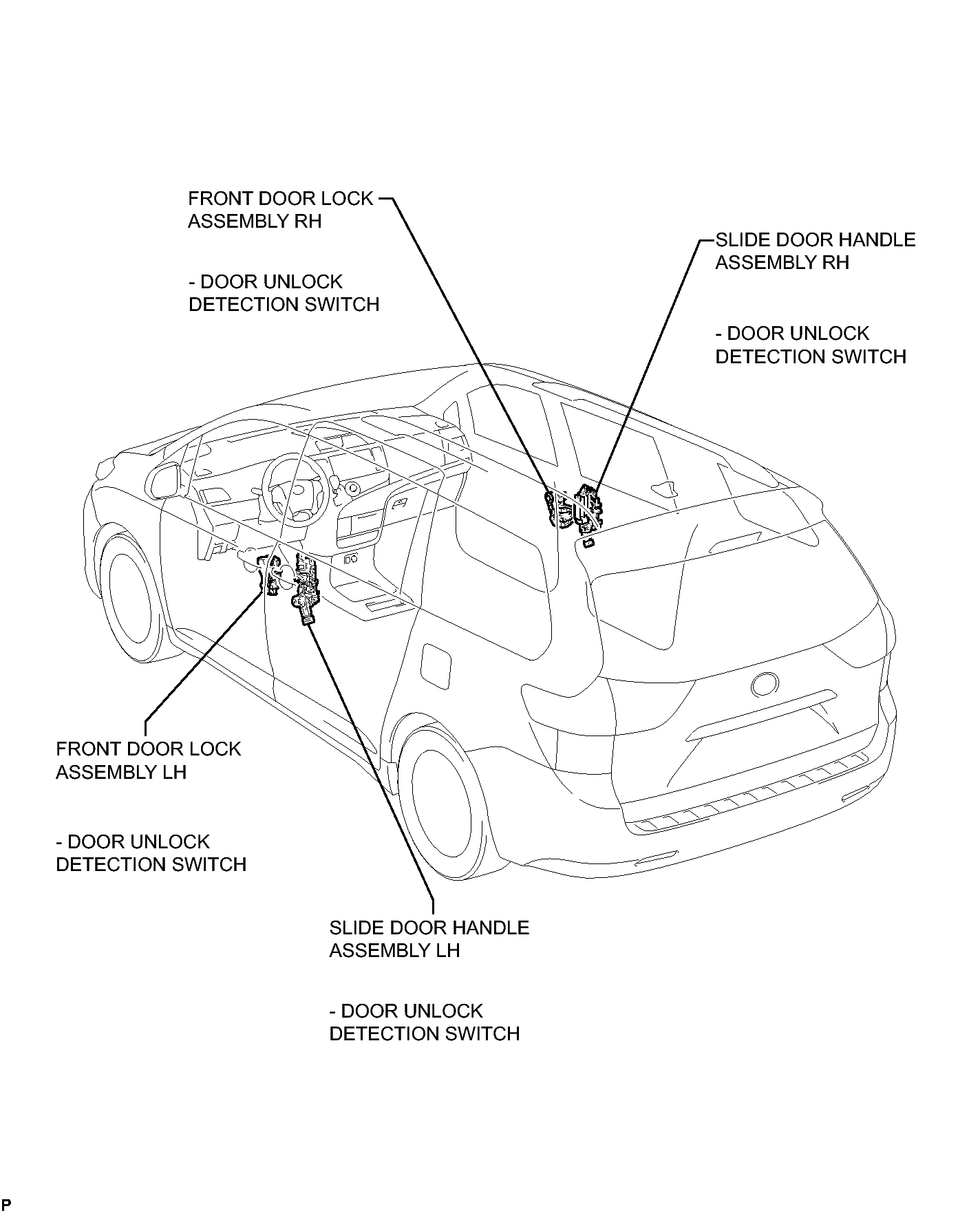

Fig 1: Lighting System Components Location (2 Of 5)
GTY304992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

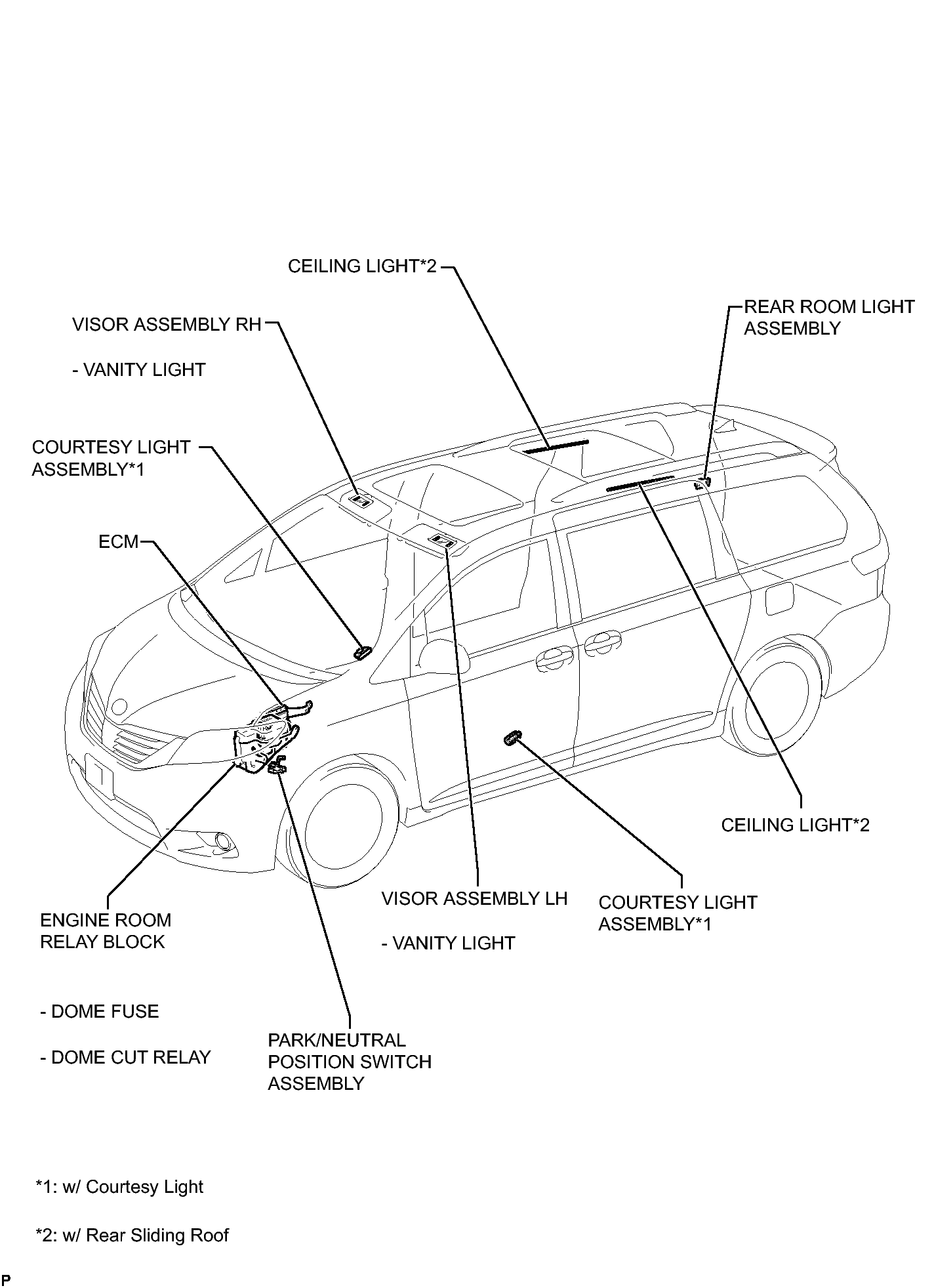

Fig 1: Lighting System Components Location (3 Of 5)
GTY296443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

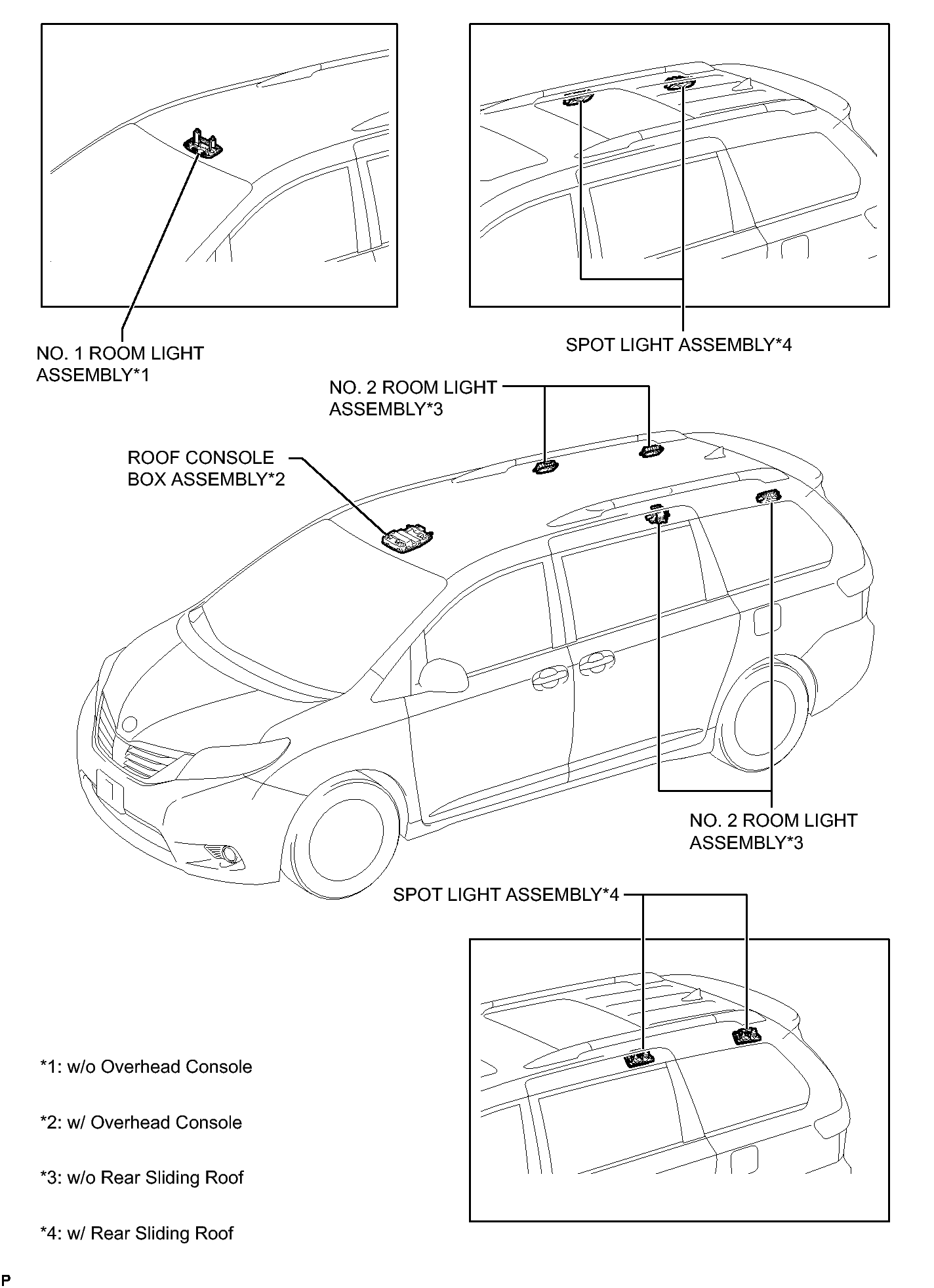

Fig 1: Lighting System Components Location (4 Of 5)
GTY302070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

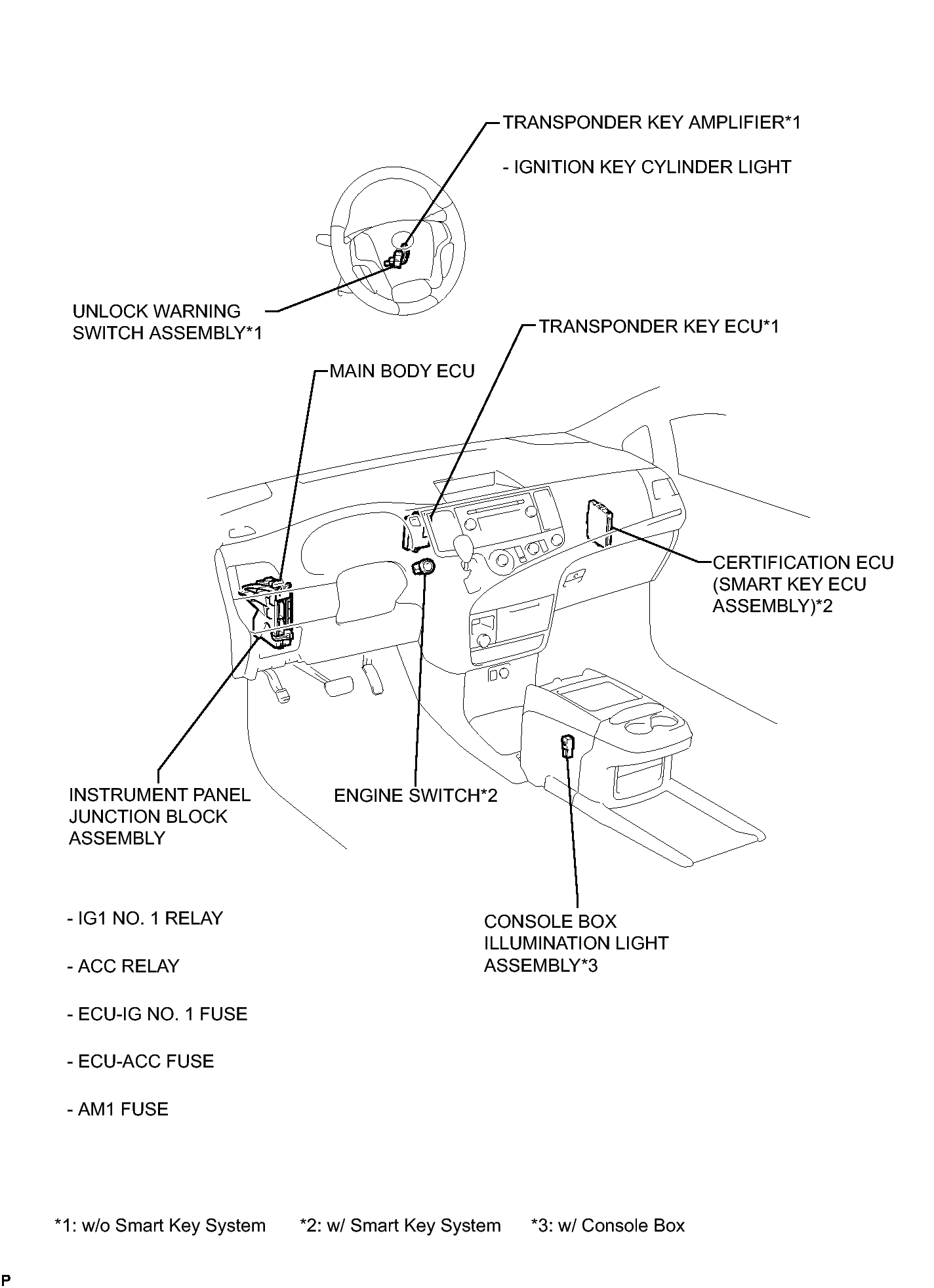

Fig 1: Lighting System Components Location (5 Of 5)
GTY307675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
