ROOM LIGHT (w/o Rear Sliding Roof): Components: Illustration

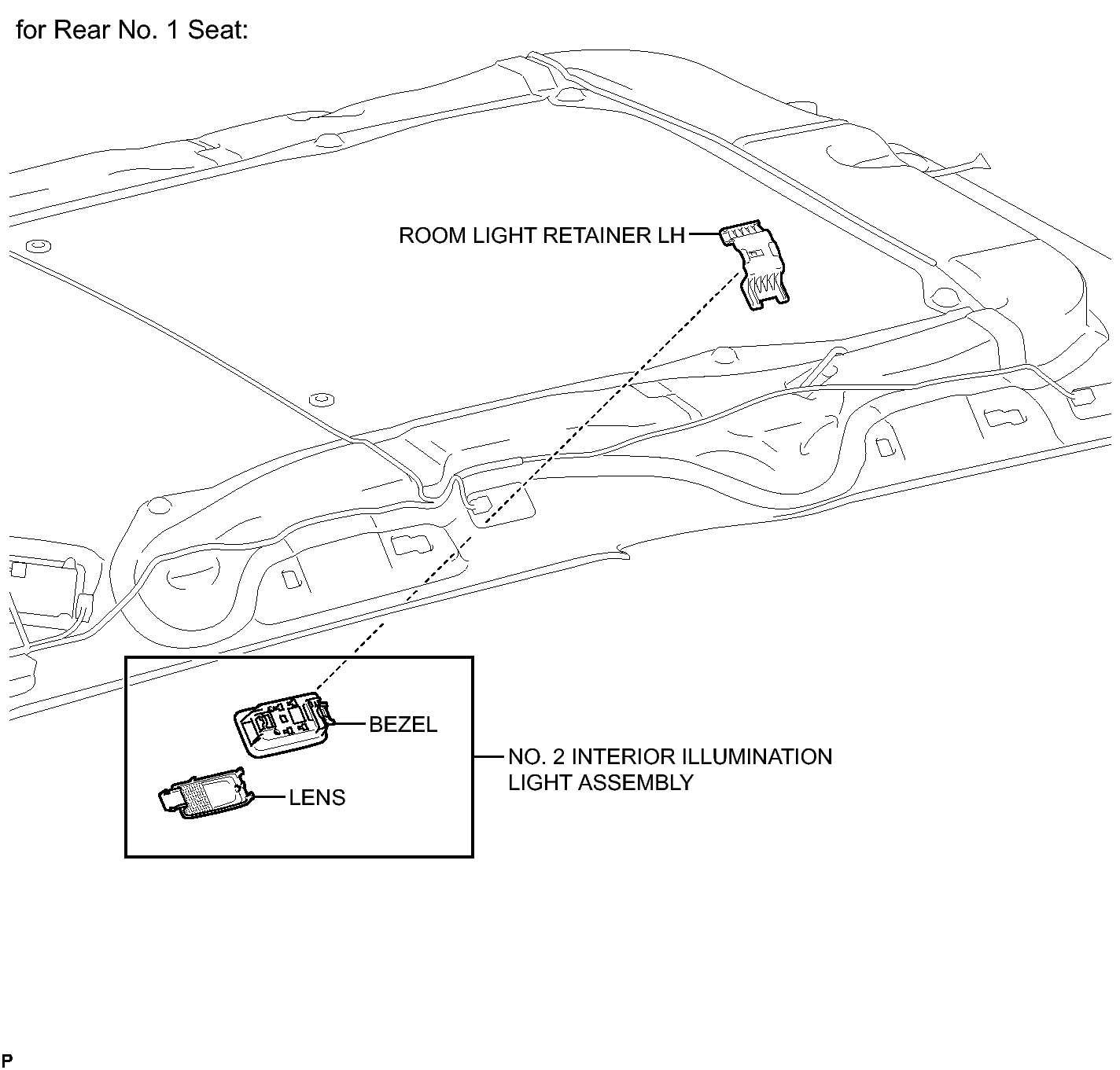

Fig 1: Room Light Replacement Components (1 of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

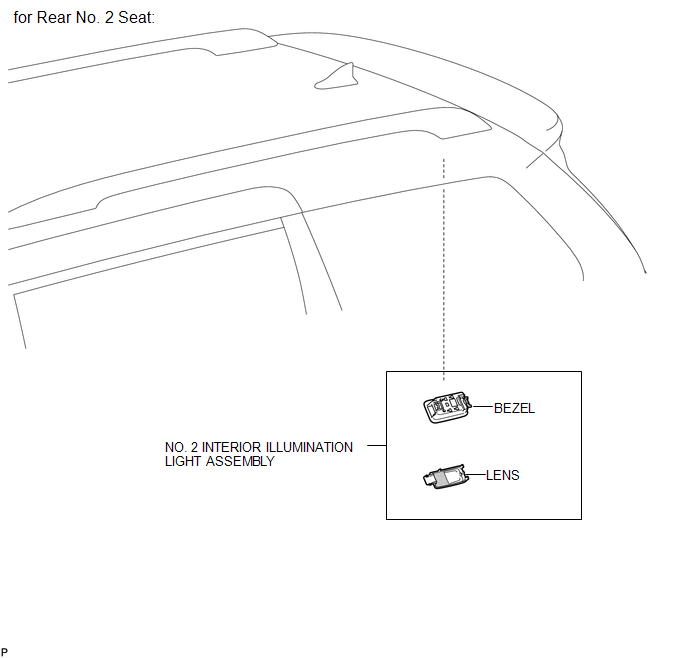

Fig 1: Room Light Replacement Components (2 of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

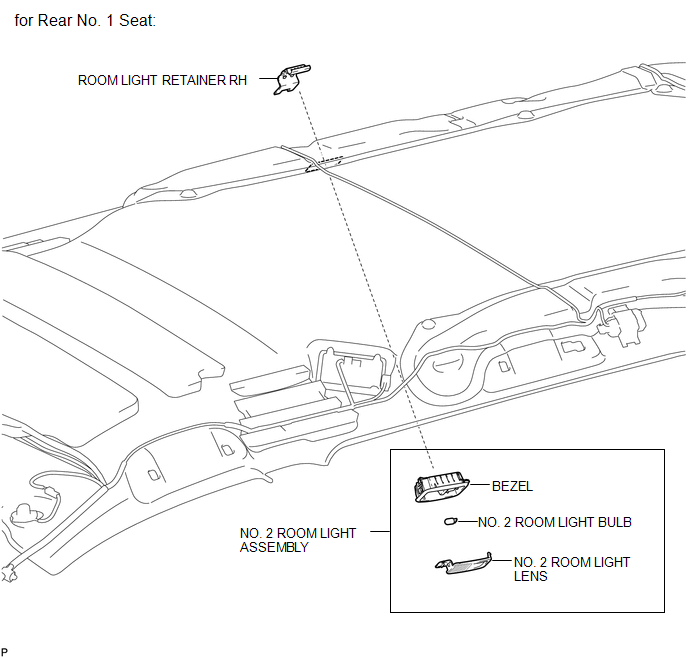

Fig 1: Room Light Replacement Components (3 of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

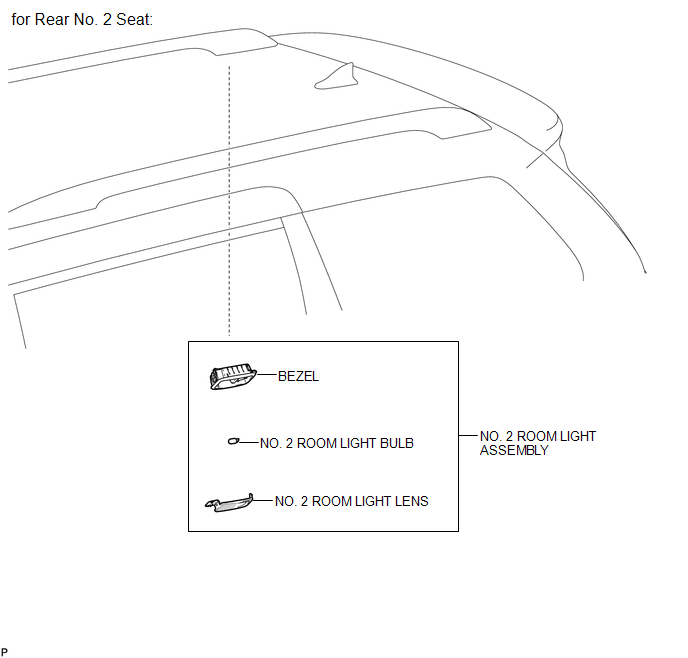

Fig 1: Room Light Replacement Components (4 of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
