Parts Location: Illustration

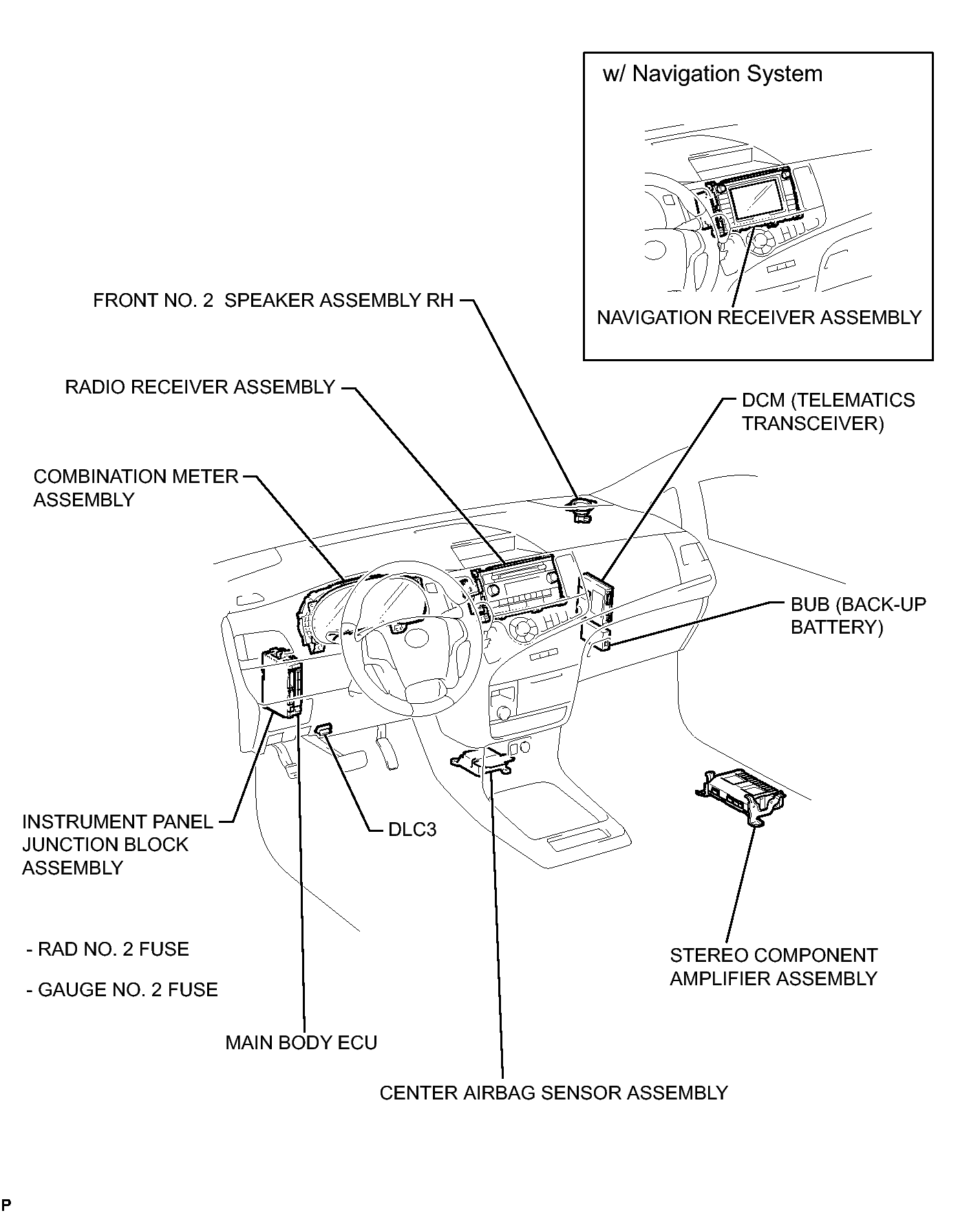

Fig 1: Safety Connect System Components Location (1 Of 2)
GTY298626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

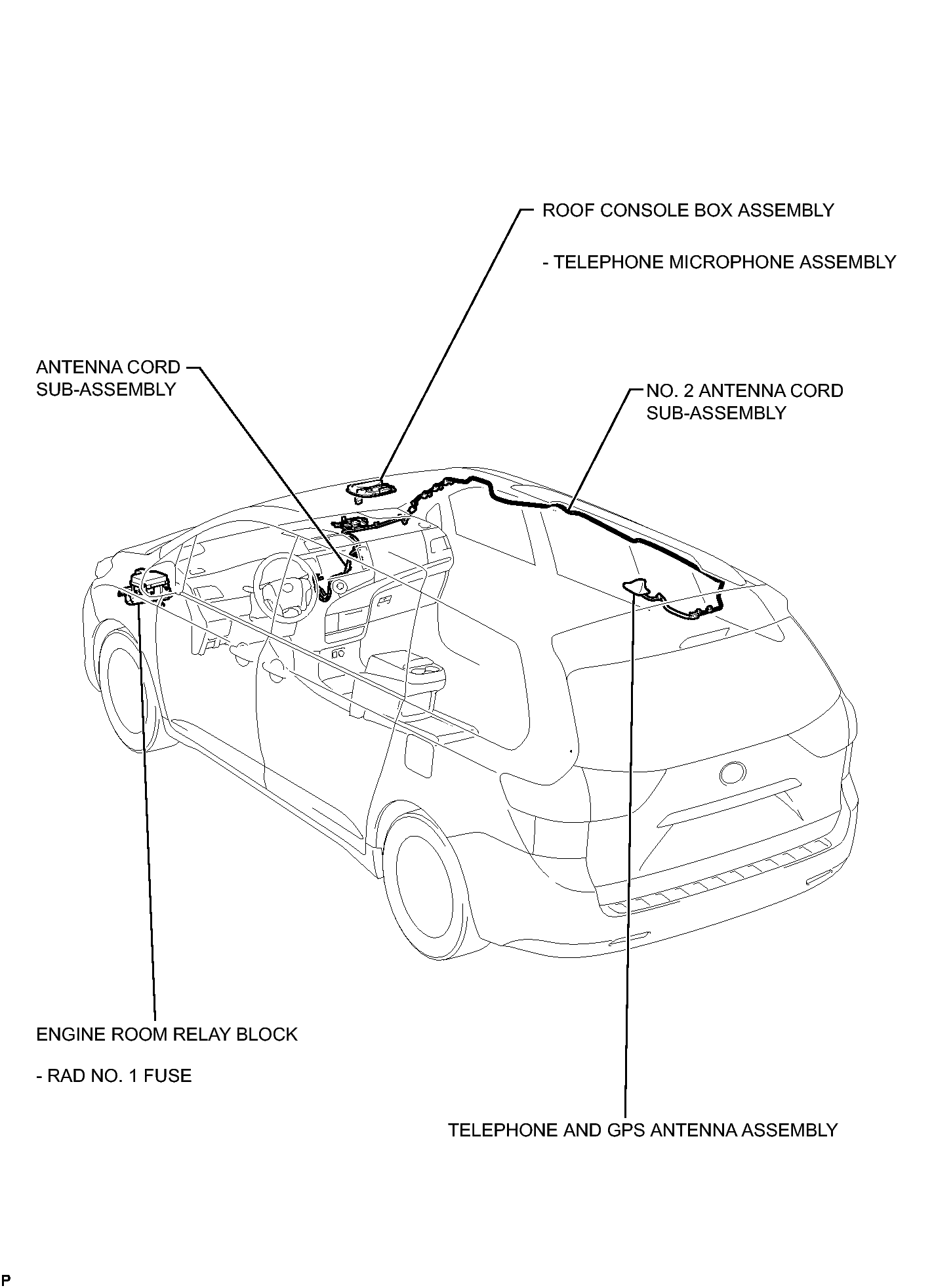

Fig 1: Safety Connect System Components Location (2 Of 2)
GTY296328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
