Parts Location: Illustration

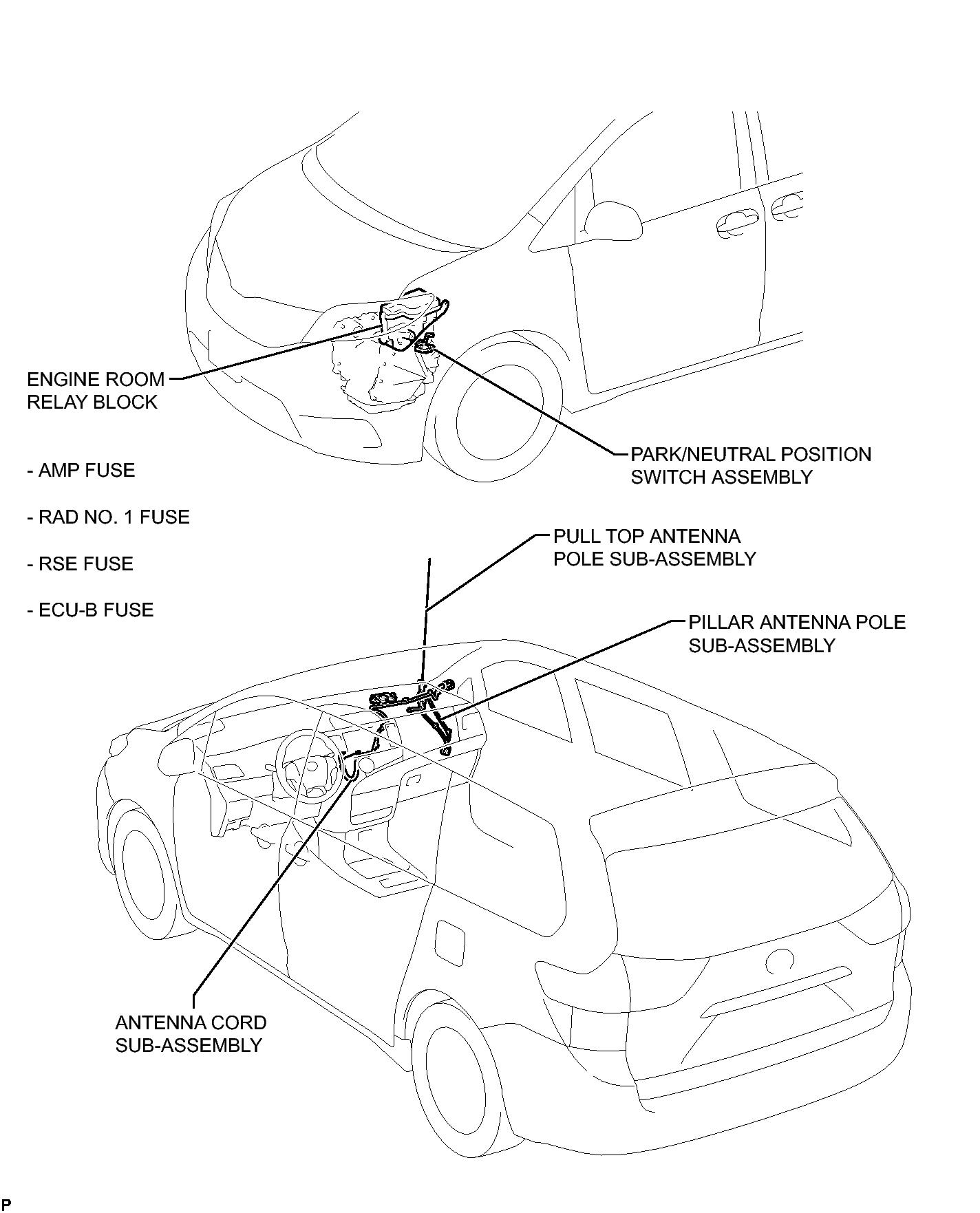

Fig 1: Navigation System Component Location (1 Of 3)
GTY338583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

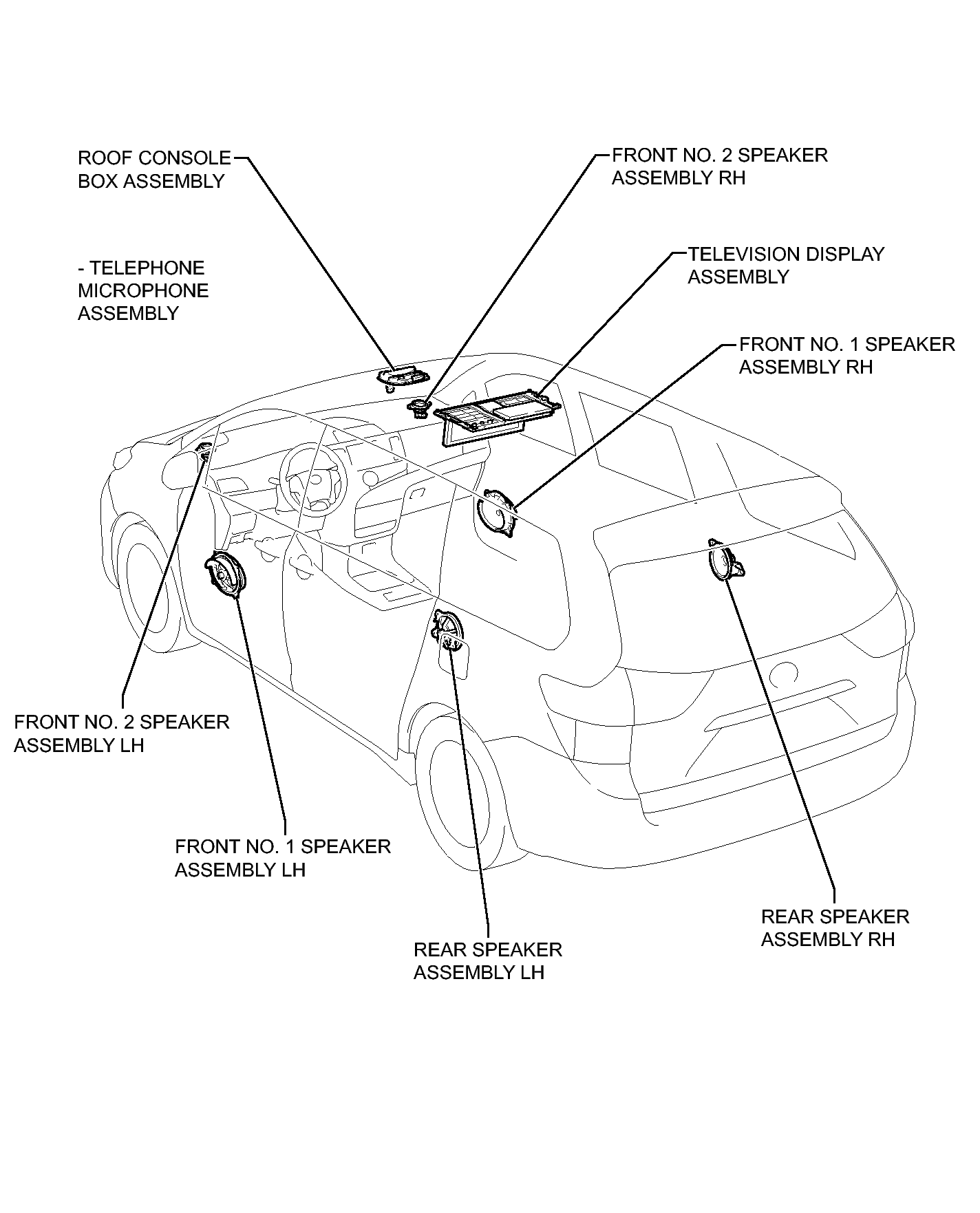

Fig 1: Navigation System Component Location (2 Of 3)
GTY337207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

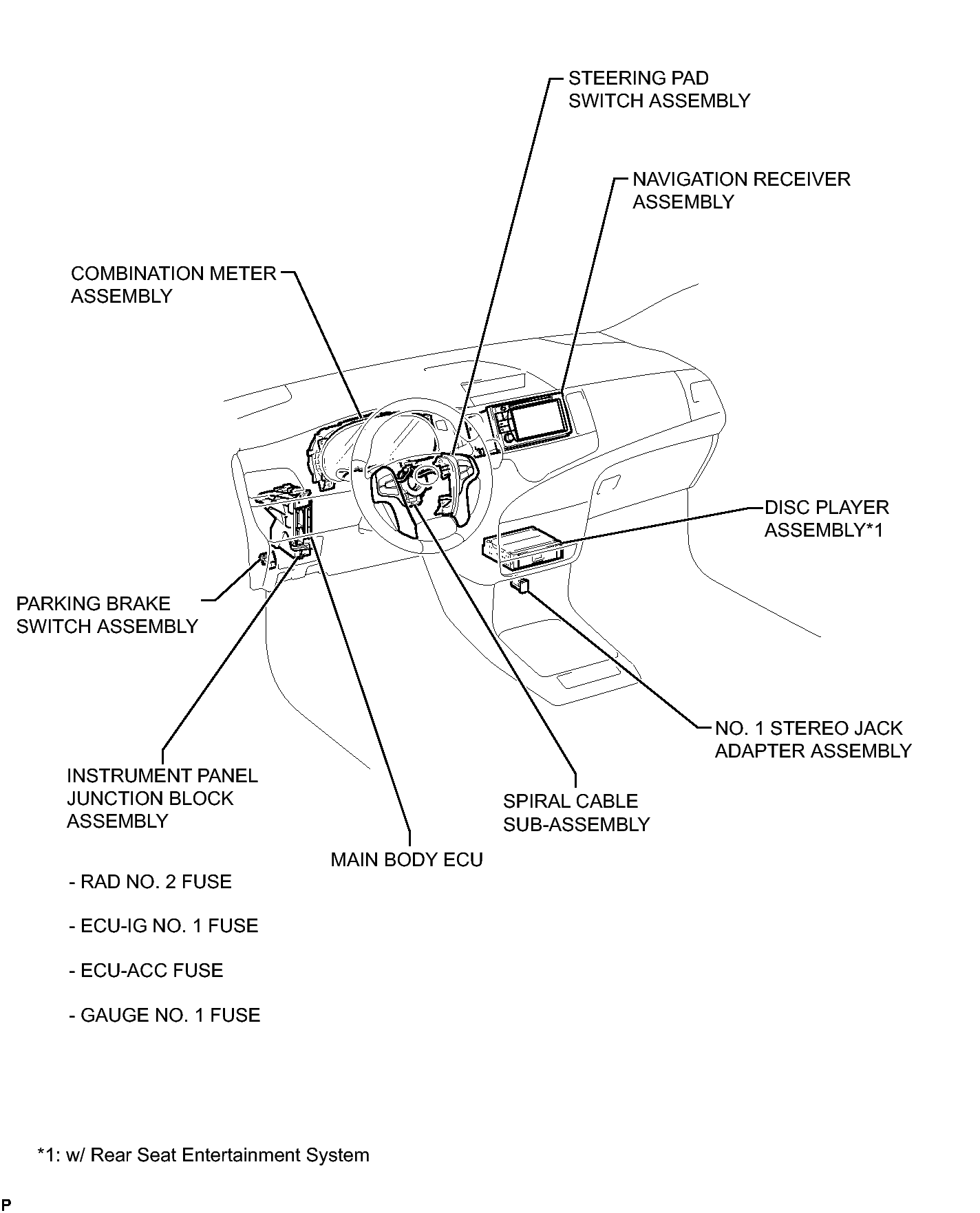

Fig 1: Navigation System Component Location (3 Of 3)
GTY333441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
