DTC B15C3: Speaker Output Short: Wiring Diagram

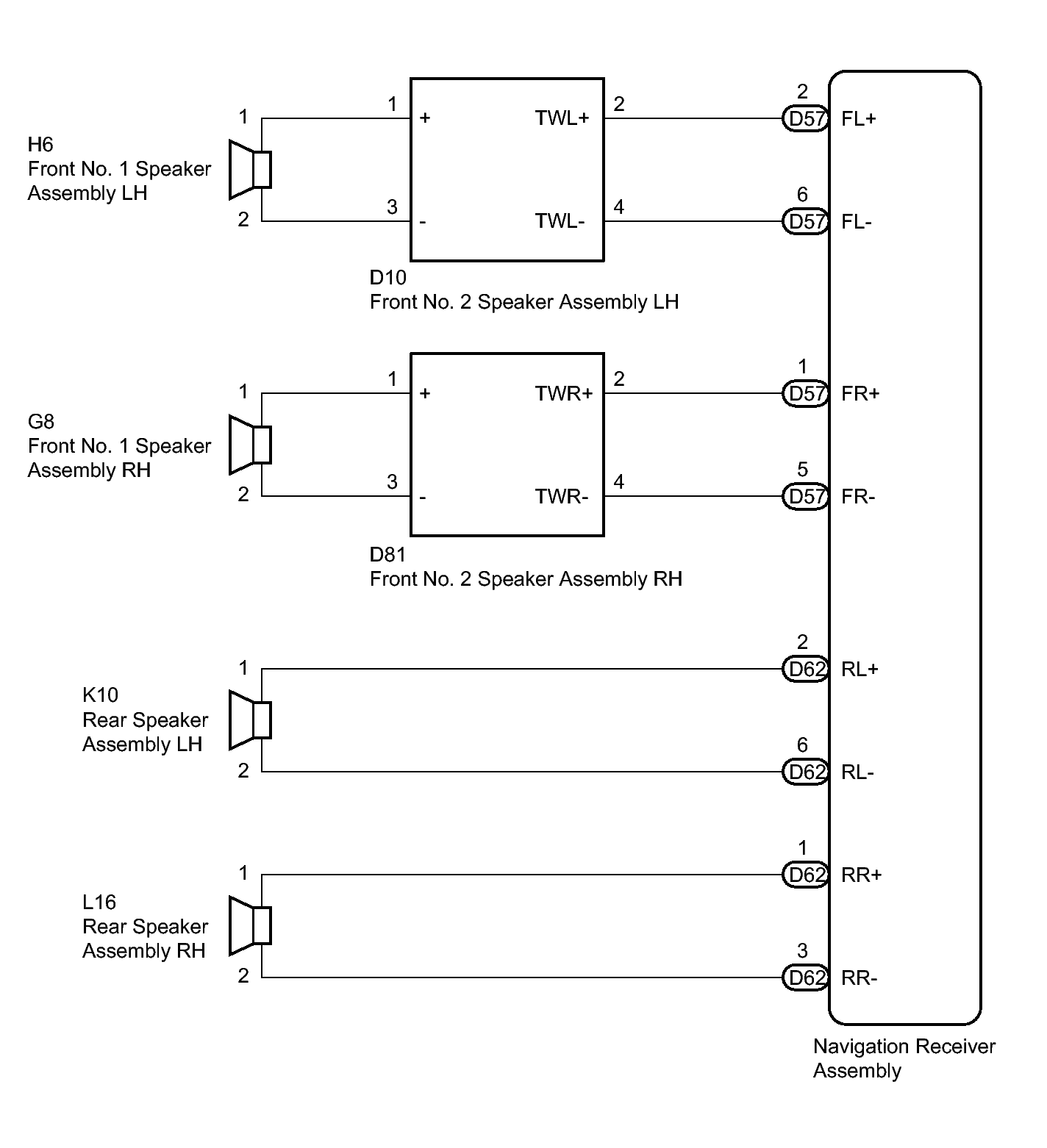

Fig 1: Speaker Circuit Wiring Diagram

GTY325164

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
