DTC B1595: No Response from Rear Seat Entertainment System; DTC B15D5: Rear Seat Entertainment System Disconnected: Wiring Diagram

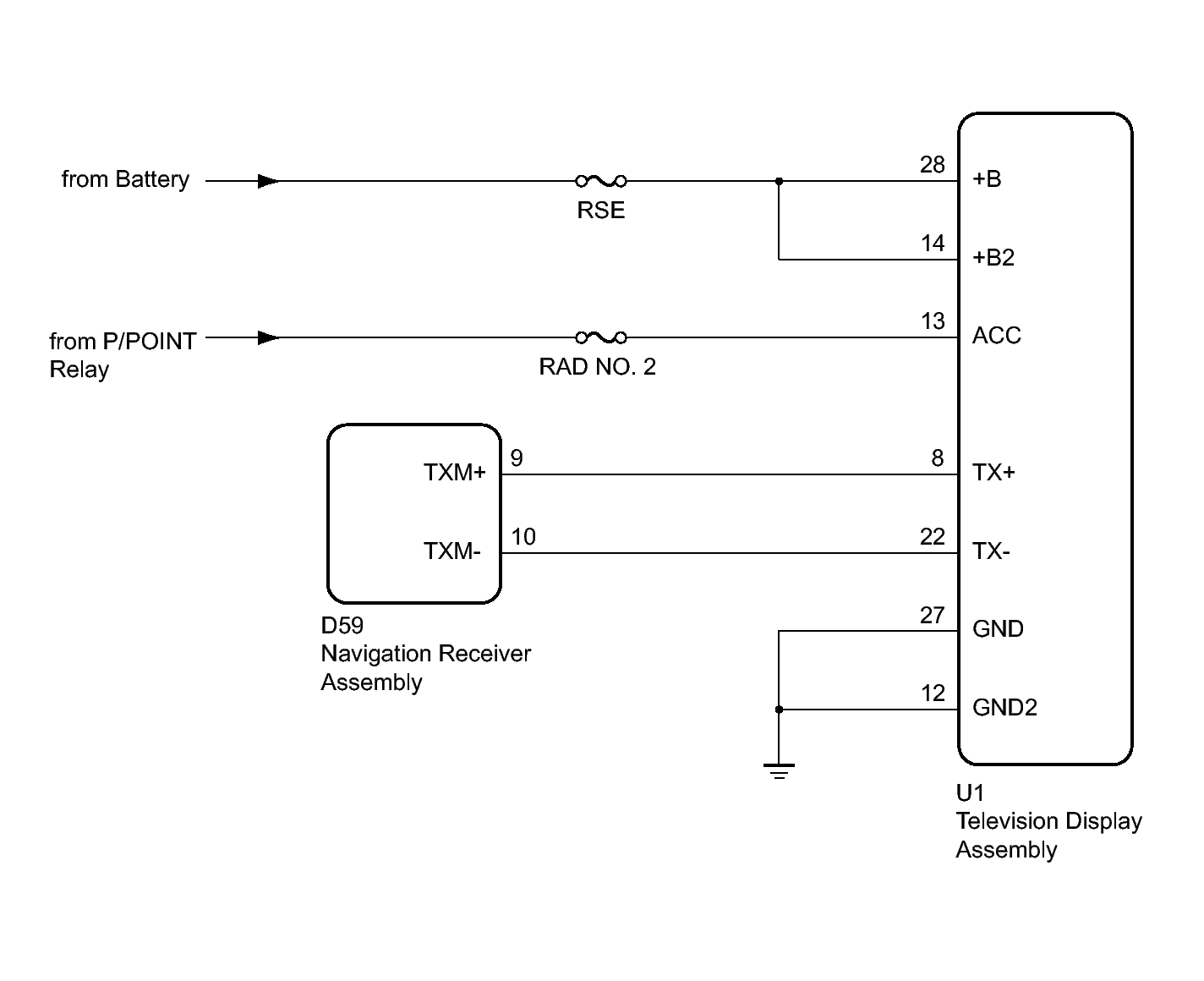

Fig 1: Television Display Assembly Circuit Wiring Diagram
GTY330437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
