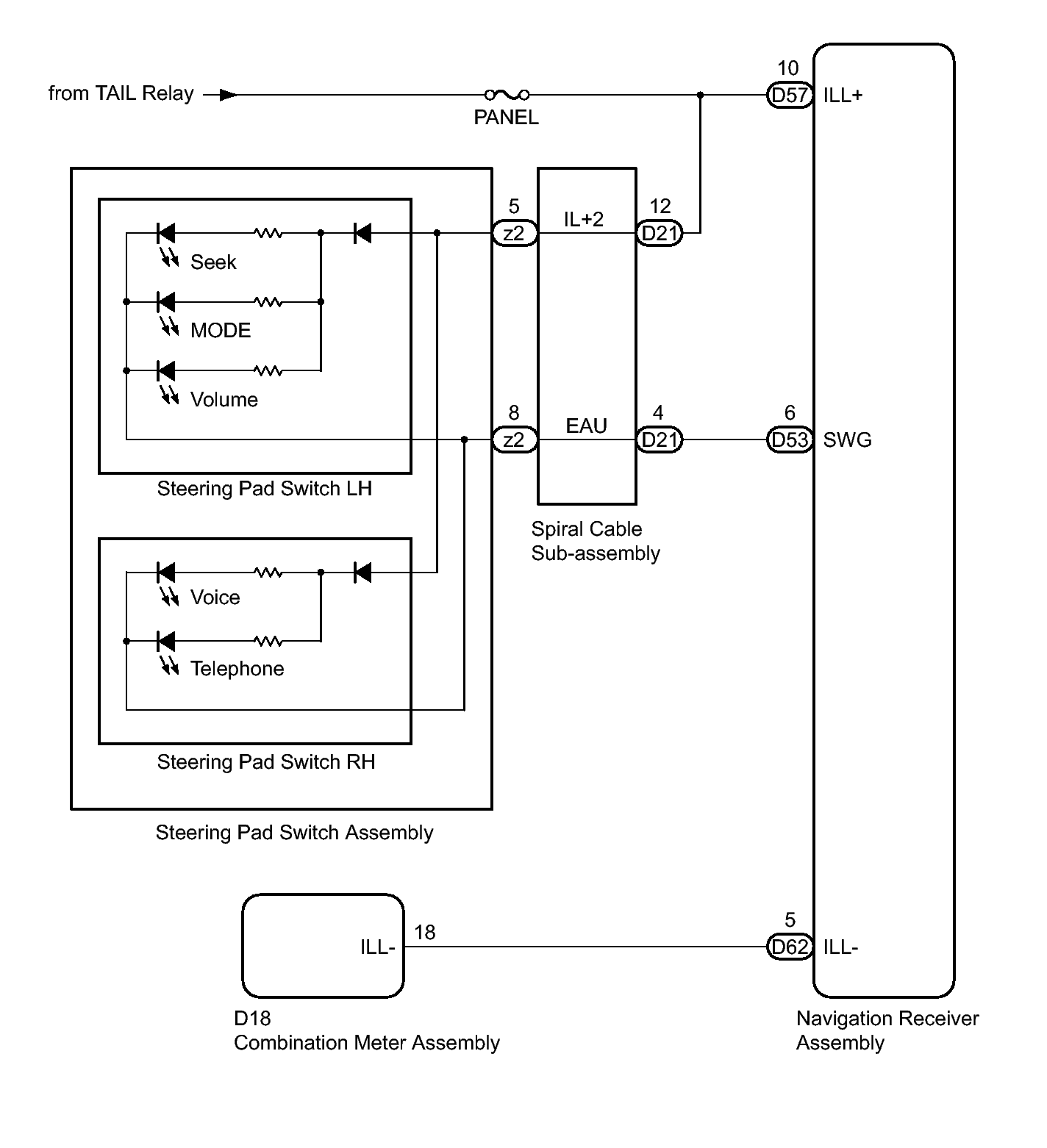

Home >> Toyota >> 2012 >> Sienna SE >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Infotainment >> Navigation System (For SD) (Diagnostic Codes & Circuit Tests) >> NAVIGATION SYSTEM (for SD) >> Circuit Tests >> Illumination Circuit >> Wiring Diagram
