Parts Location: Illustration

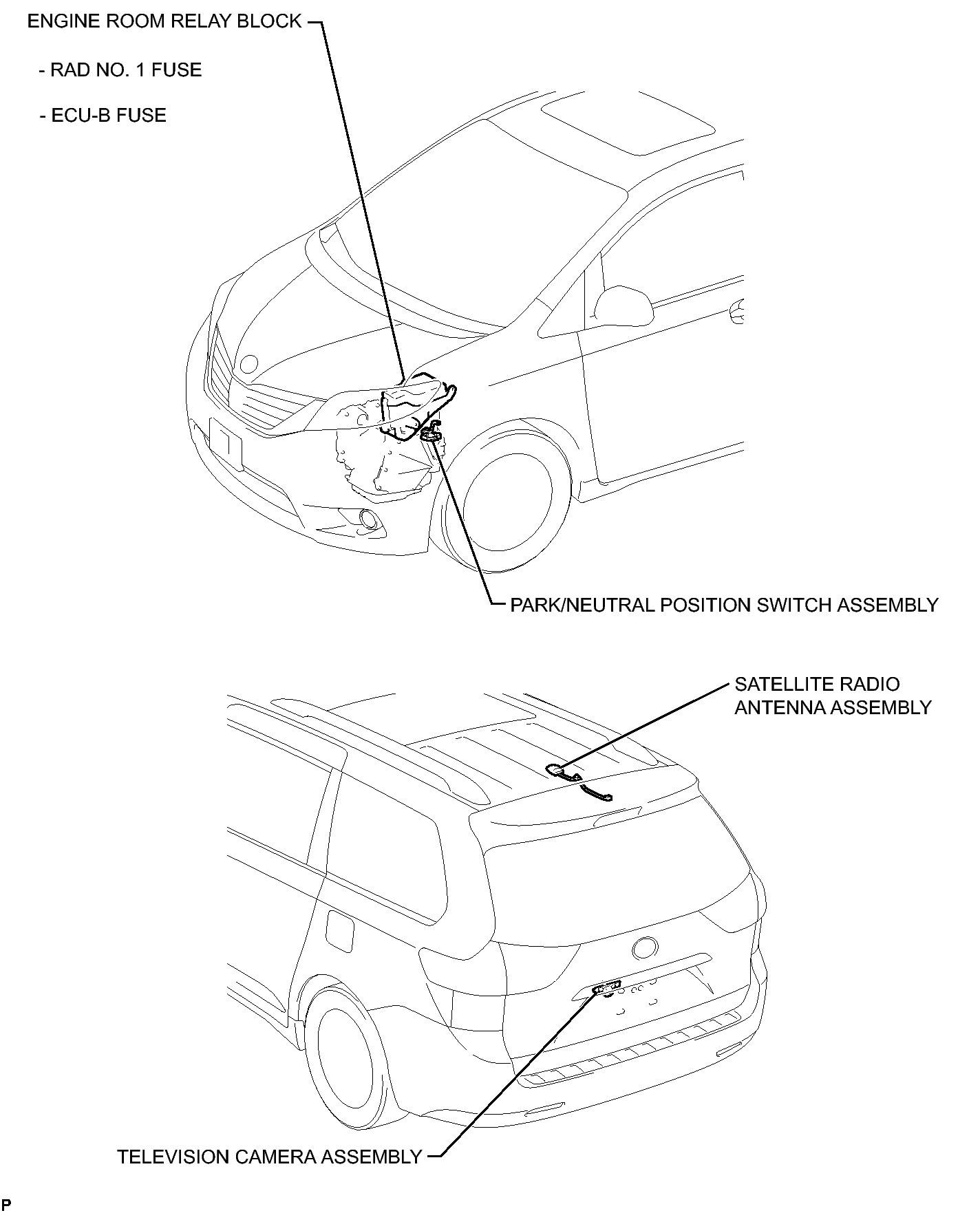

Fig 1: Navigation System (w/o USB Audio System) Components Location (1 Of 3)
GTY295567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

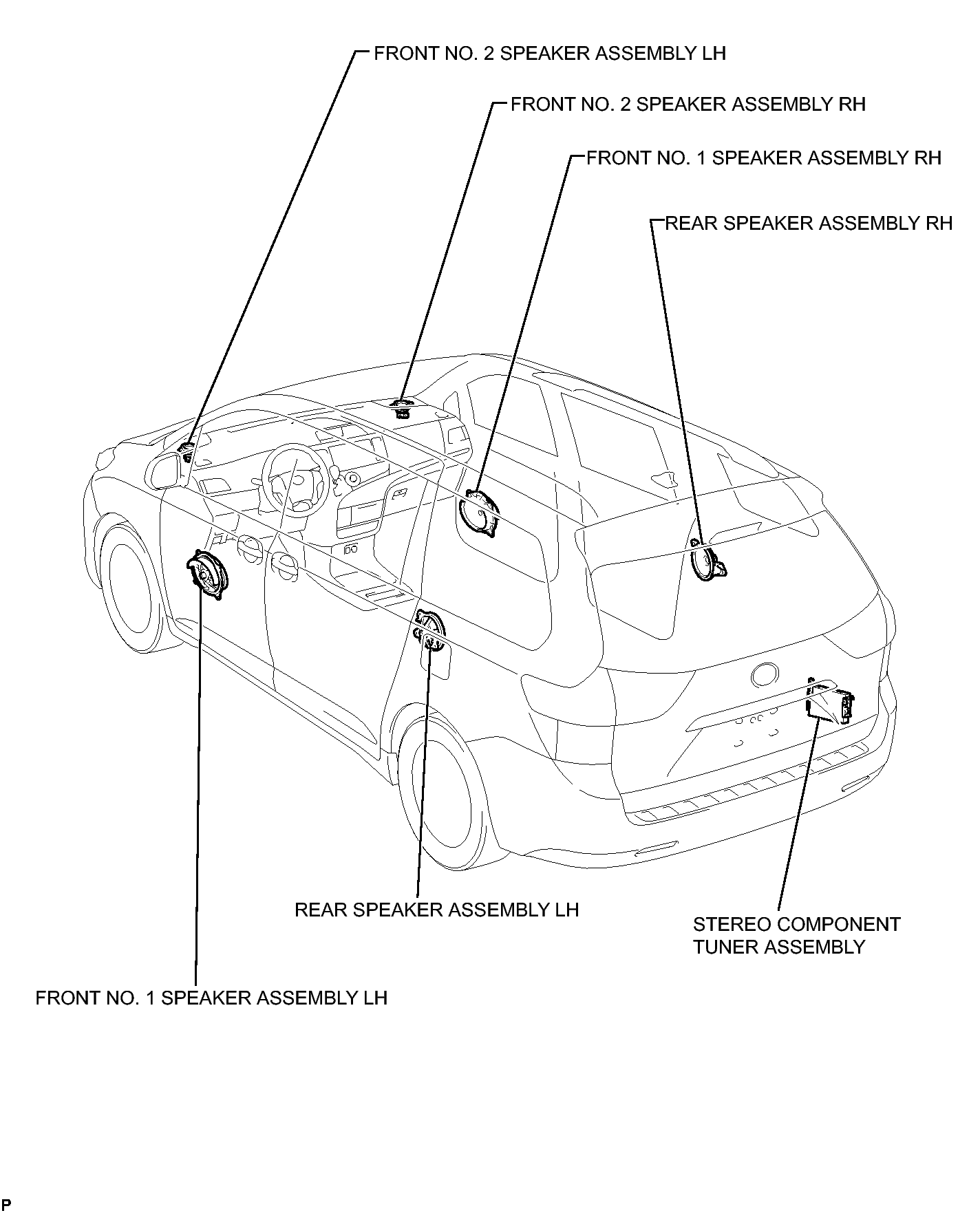

Fig 1: Navigation System (w/o USB Audio System) Components Location (2 Of 3)
GTY303768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

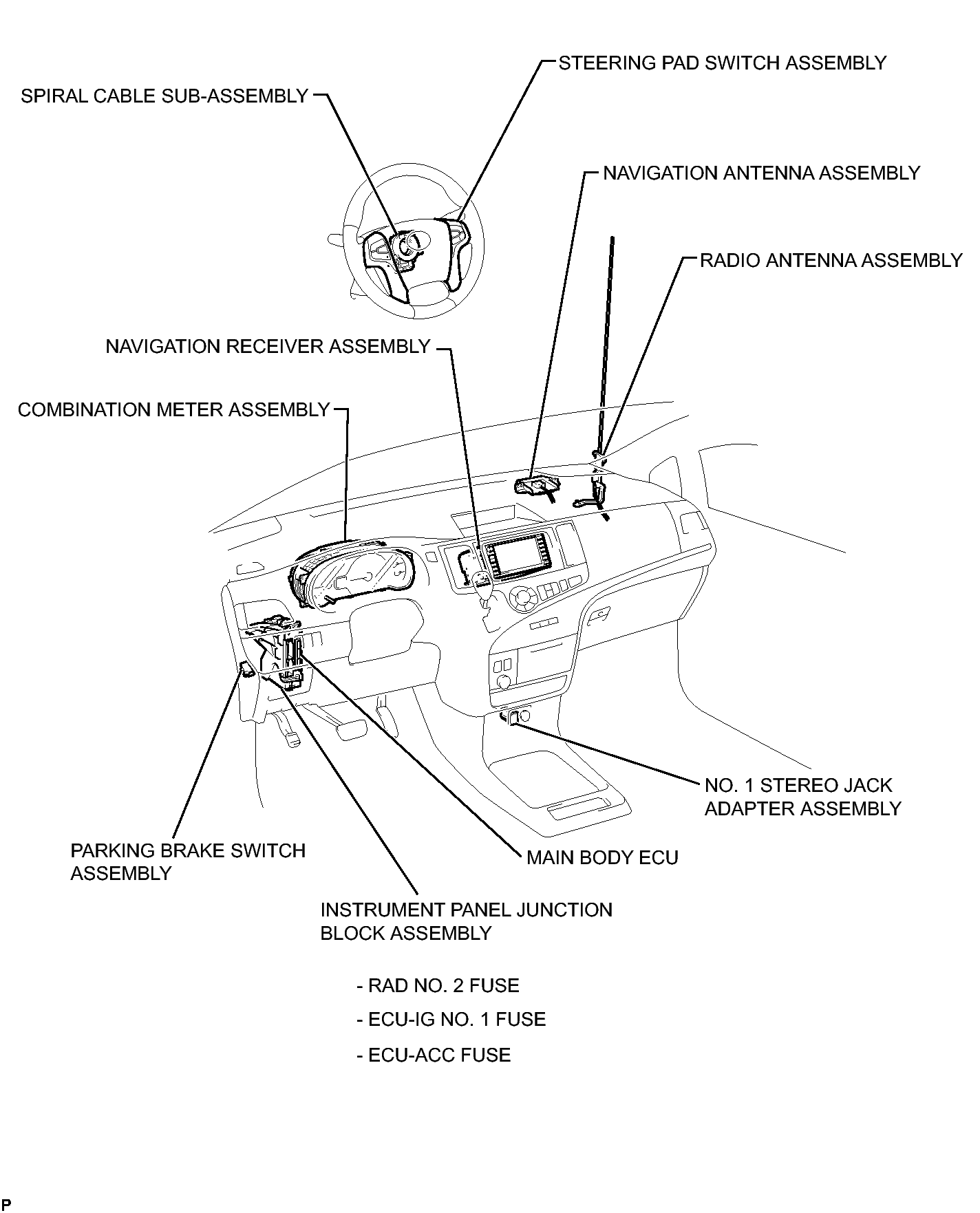

Fig 1: Navigation System (w/o USB Audio System) Components Location (3 Of 3)
GTY295851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
