DTC B1593: No Response from Stereo Component Amplifier; DTC B15D3: Stereo Component Amplifier Disconnected: Wiring Diagram

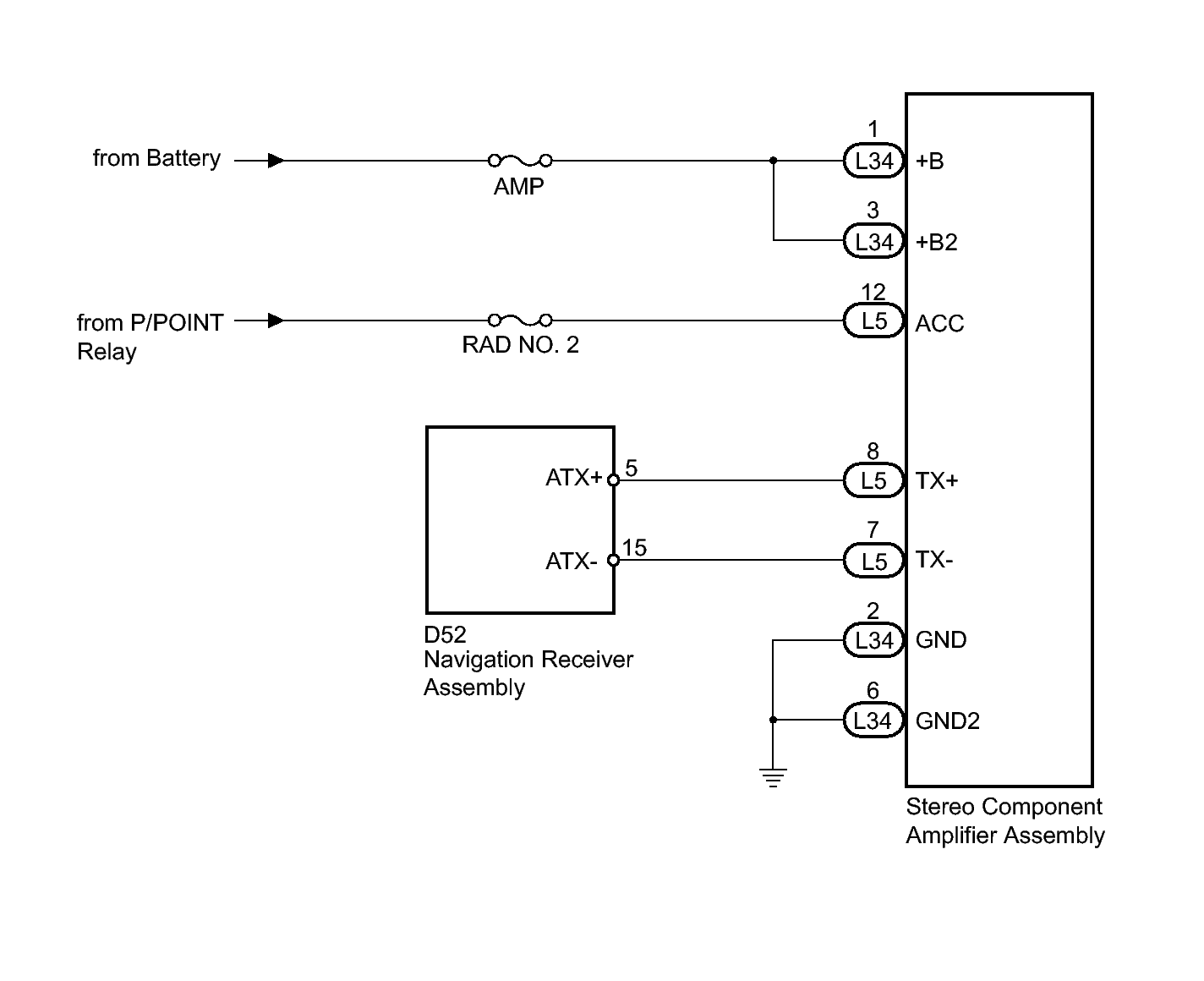

Fig 1: Stereo Component Amplifier Power Source Circuit - Wiring Diagram
GTY305305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
