DTC B1592: No Response from DVD Player; DTC B15D2: DVD Player Disconnected: Wiring Diagram

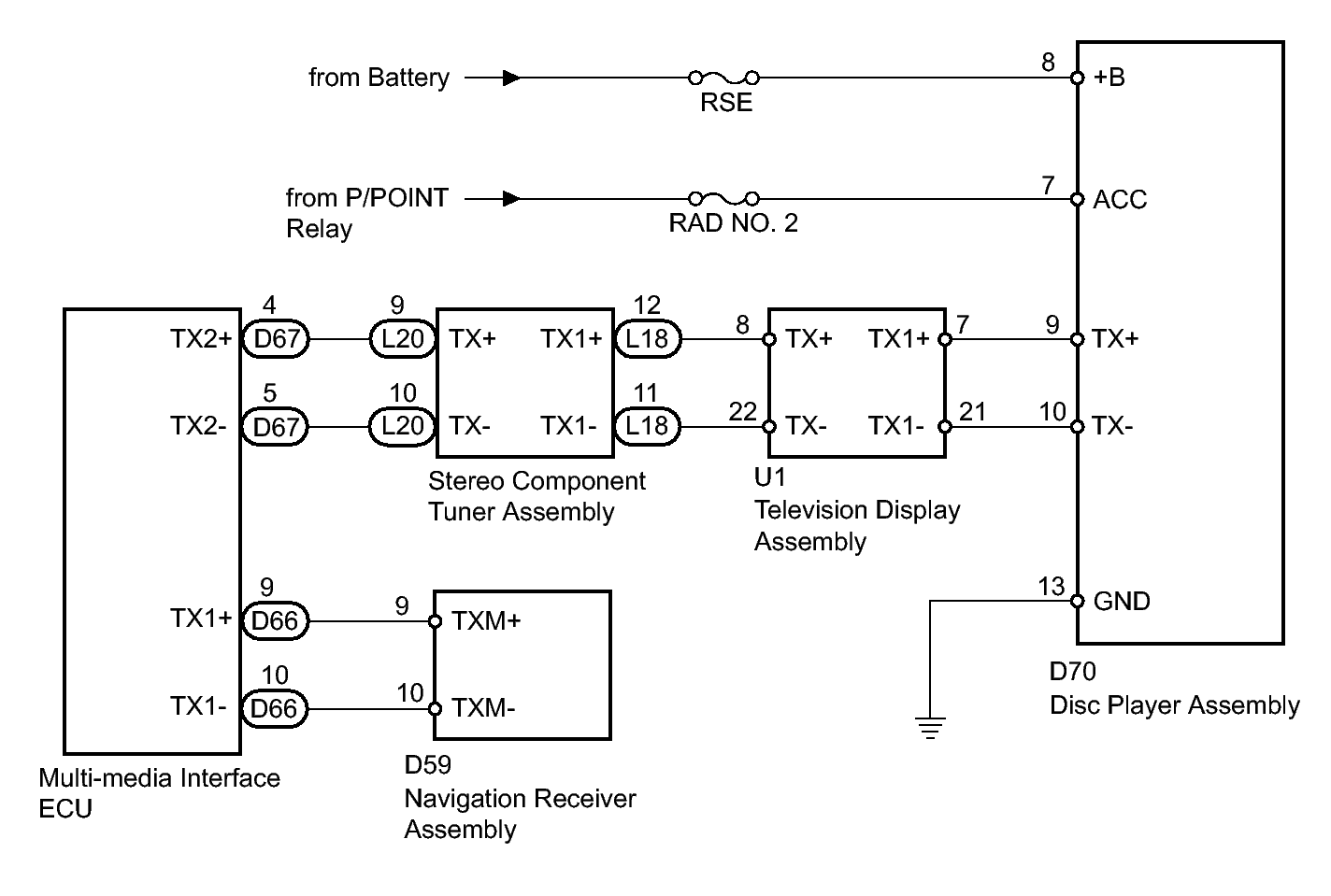

Fig 1: Disc Player Assembly - Wiring Diagram

GTY294486

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
