DTC B1561: XM Tuner Disconnected (Command Line); DTC B159F: No Response from XM Tuner: Wiring Diagram

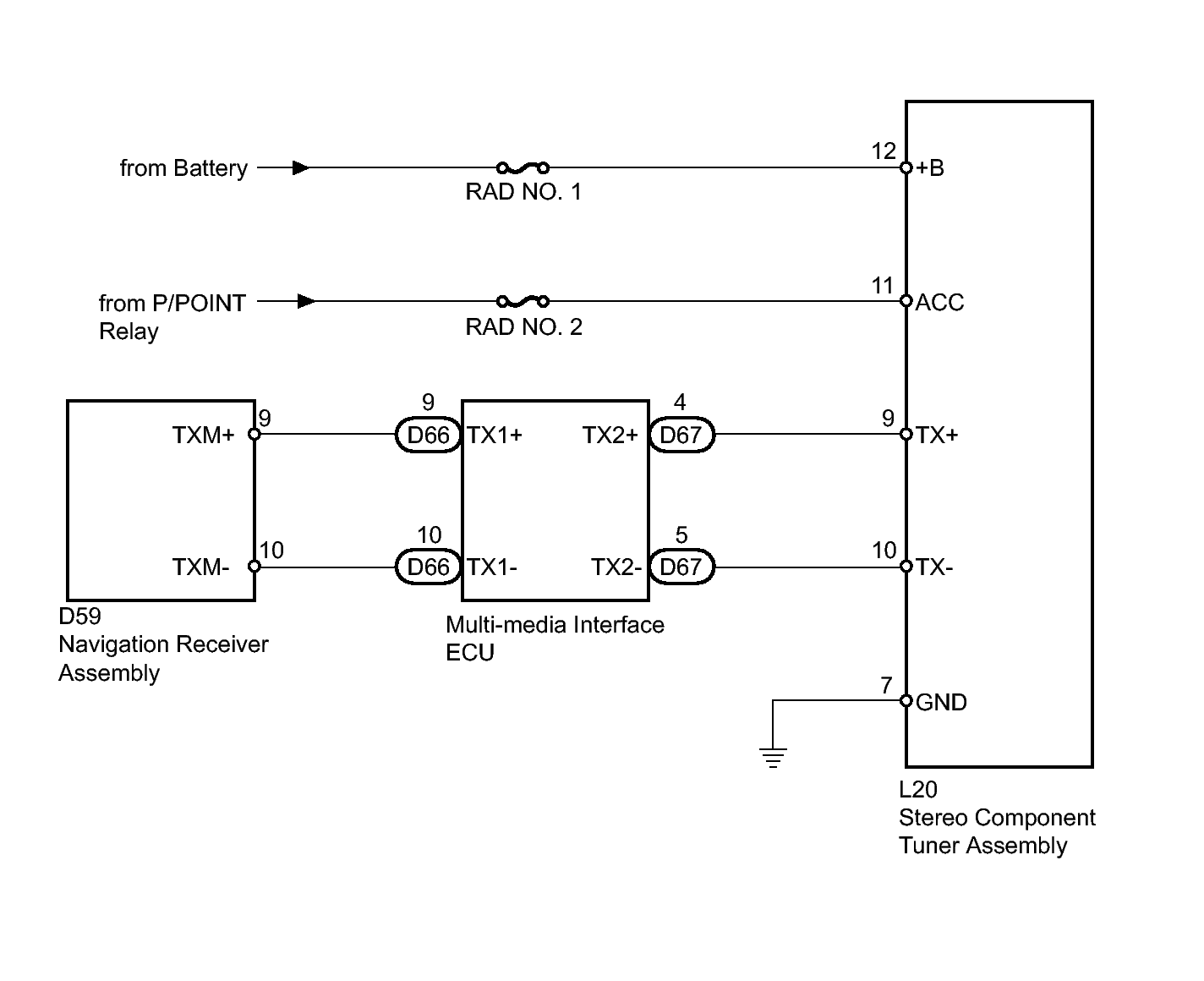

Fig 1: Component Tuner Assembly - Wiring Diagram

GTY296468

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
