Sound Signal Circuit Between Stereo Component Tuner Assembly And Multi-Media Interface ECU: Wiring Diagram

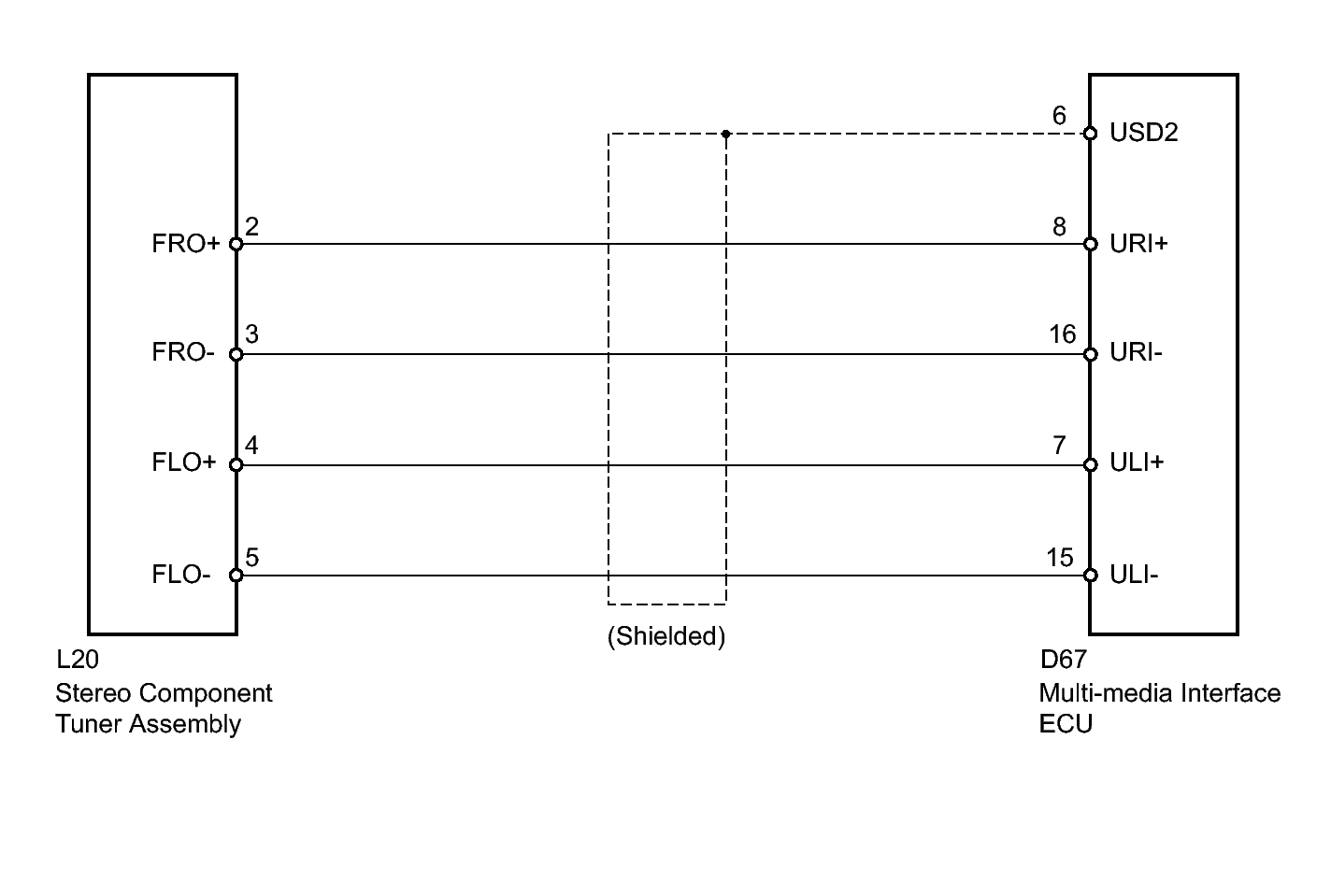

Fig 1: Sound Signal Circuit Between Stereo Component Tuner Assembly And Multi-Media Interface ECU Wiring Diagram
GTY299722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
