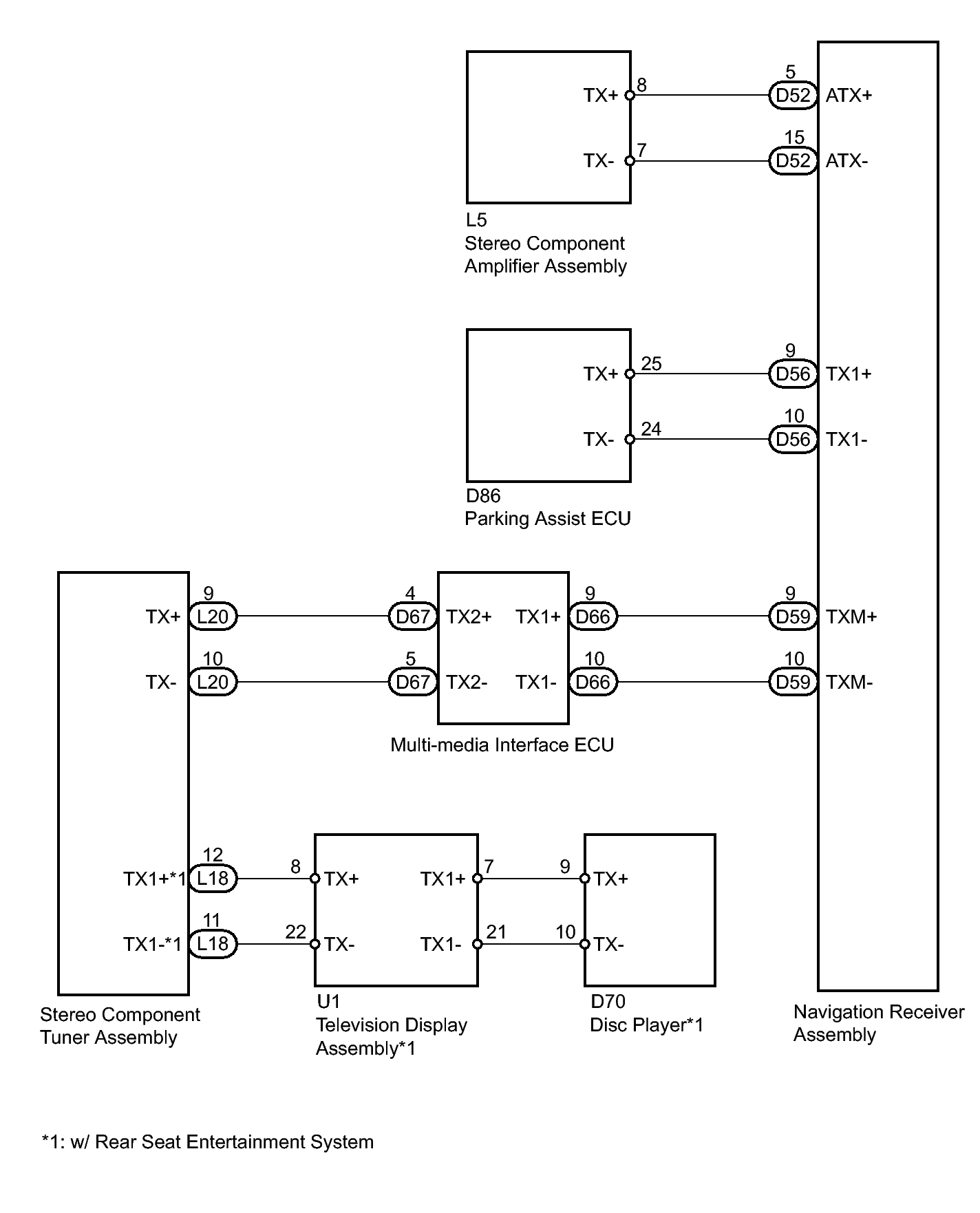

Home >> Toyota >> 2012 >> Sienna SE >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Infotainment >> Navigation System (For DVD With USB Audio System) (Diagnostic Codes & Circuit Tests) >> NAVIGATION SYSTEM (for DVD with USB Audio System) >> Circuit Tests >> AVC-LAN Circuit >> Wiring Diagram
