Parts Location: Illustration

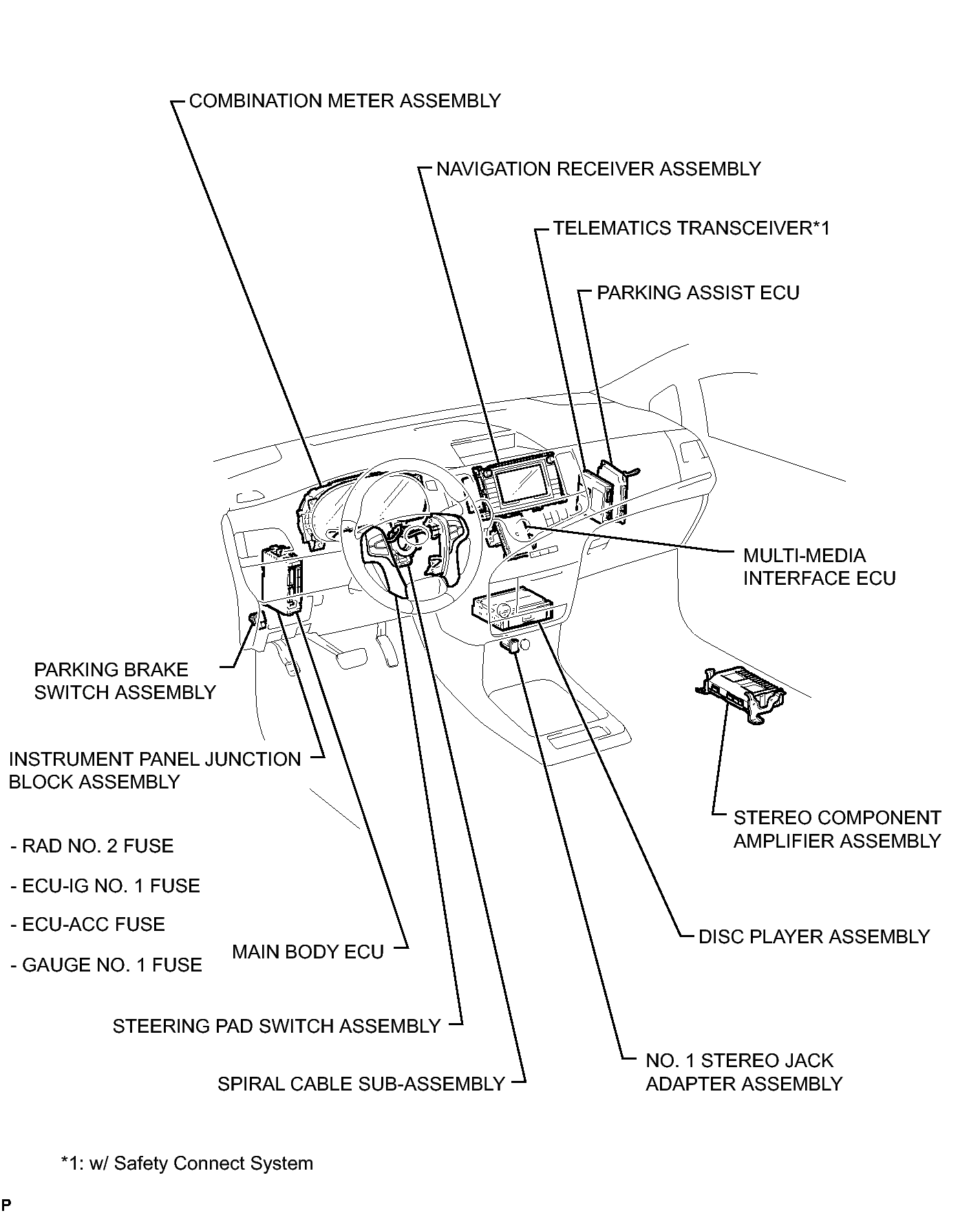

Fig 1: Navigation System Components Location (1 Of 3)
GTY302962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

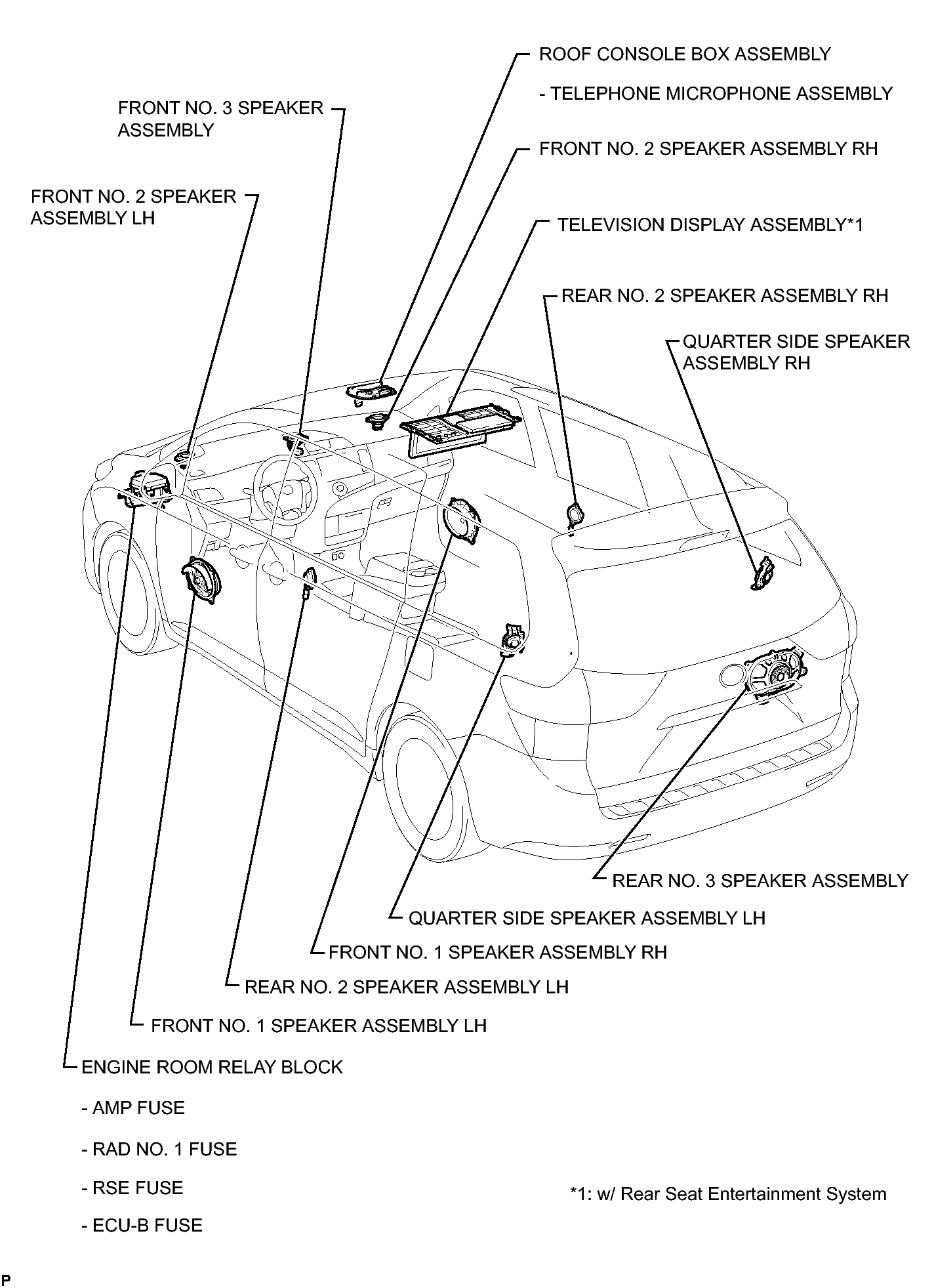

Fig 1: Navigation System Components Location (2 Of 3)
GTY297245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

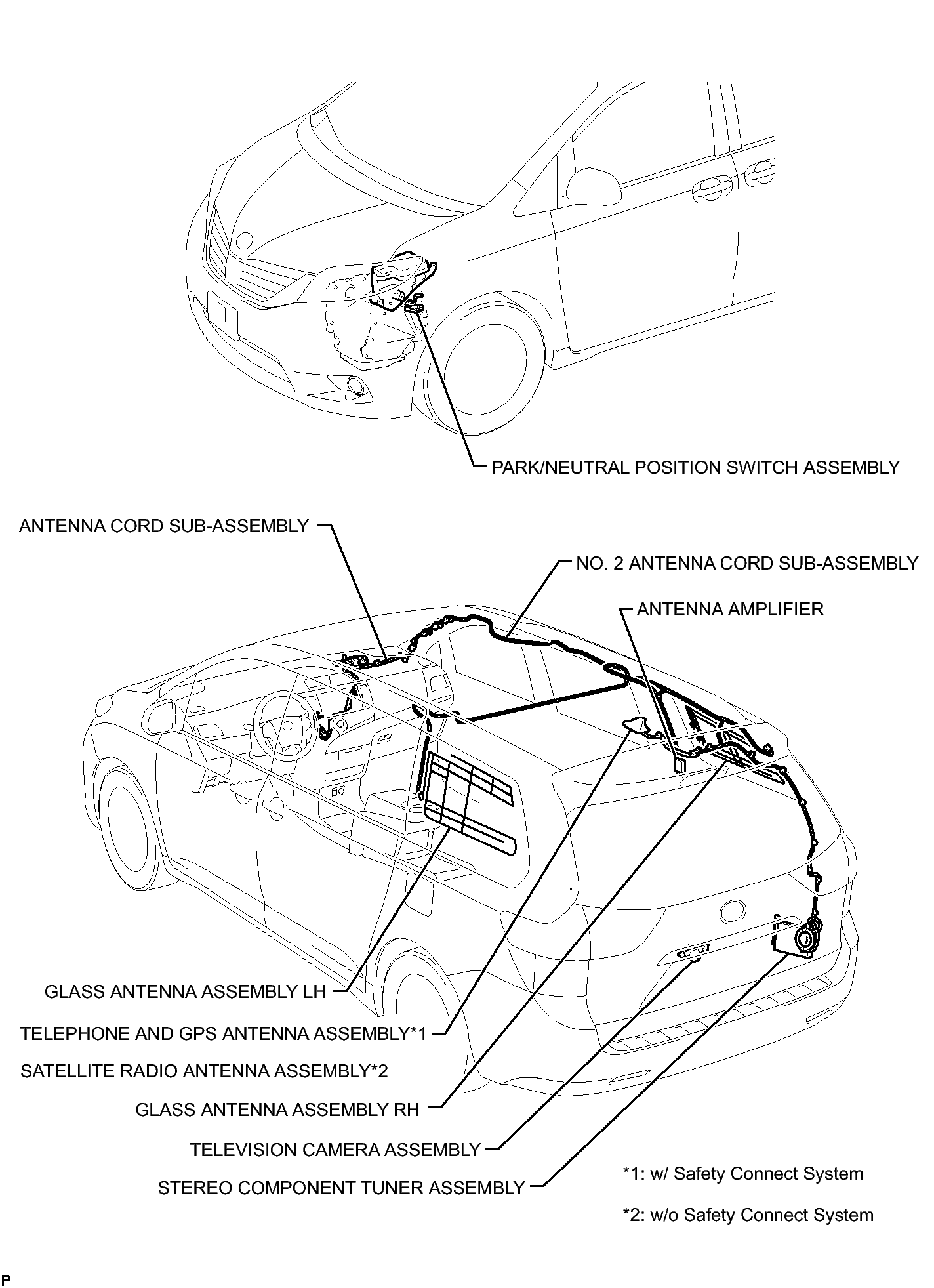

Fig 1: Navigation System Components Location (3 Of 3)
GTY304826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
