Instrument Panel Speaker: Components: Illustration

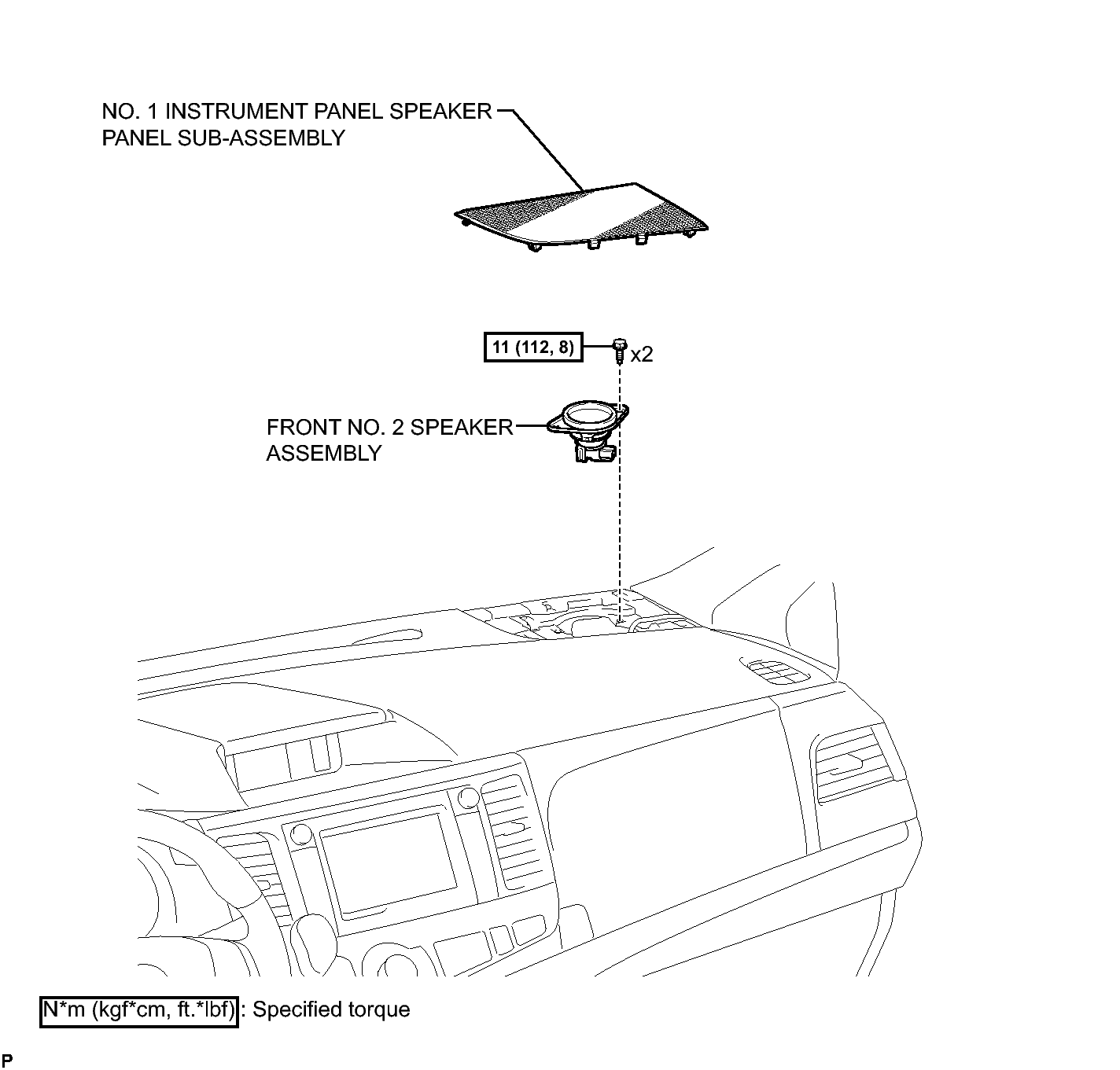

Fig 1: Instrument Panel Speaker Replacement Components With Torque Specifications (1 Of 2)
GTY306690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

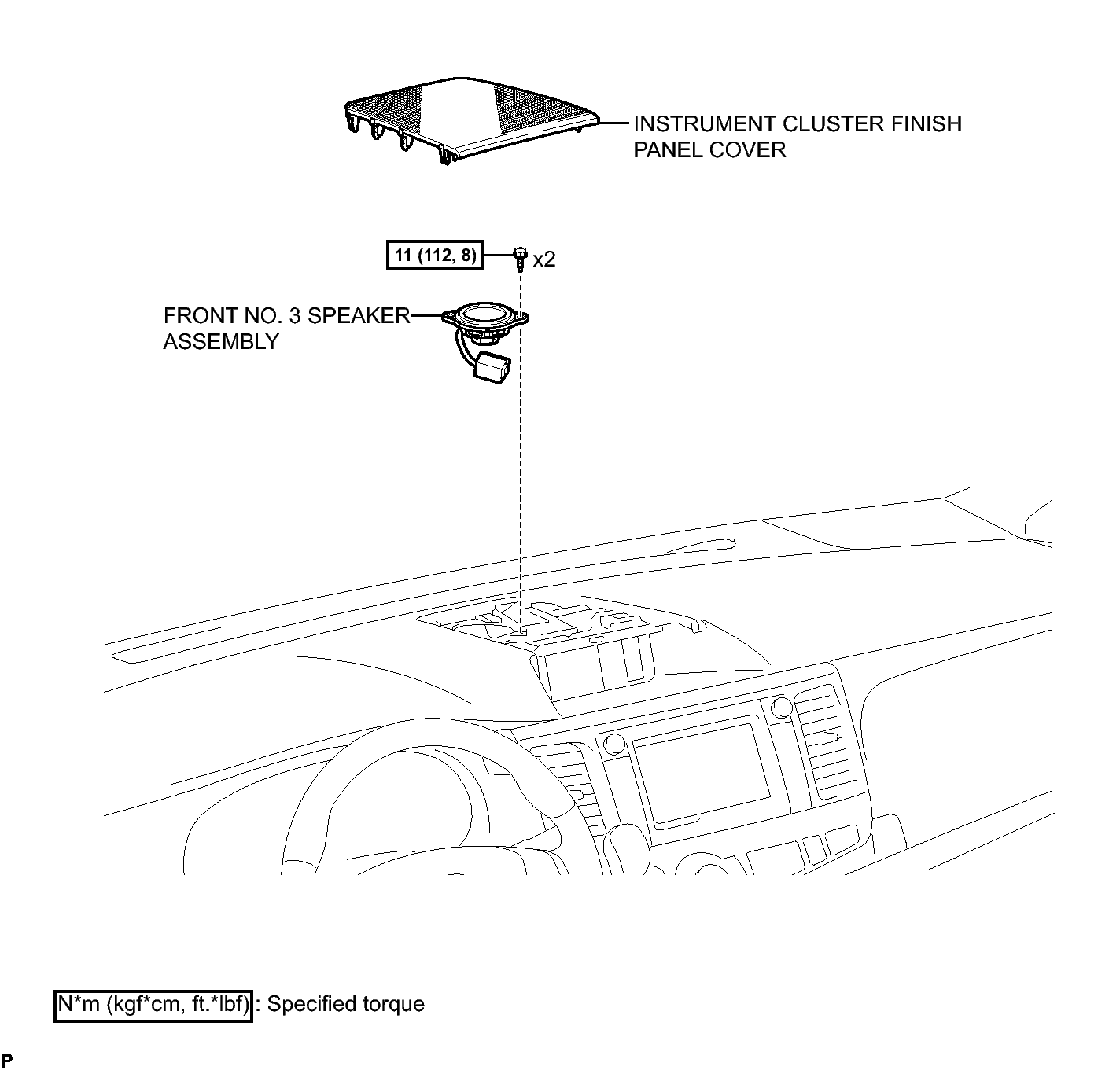

Fig 1: Instrument Panel Speaker Replacement Components With Torque Specifications (2 Of 2)
GTY295126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
