Back Door Speaker: Components: Illustration

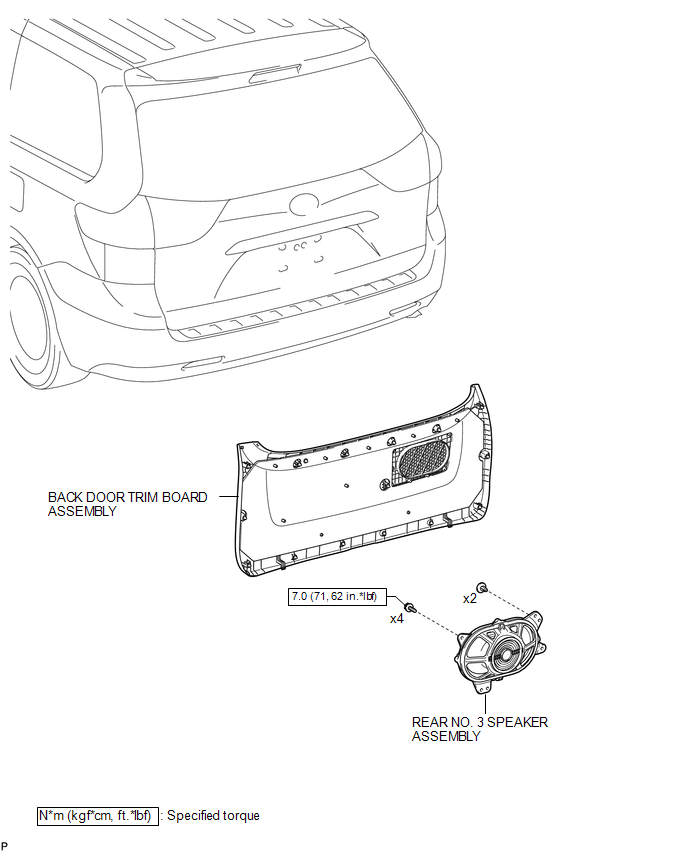

Fig 1: Back Door Speaker Replacement Components With Torque Specifications

GTY301458

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
