Amplifier Antenna: Components: Illustration

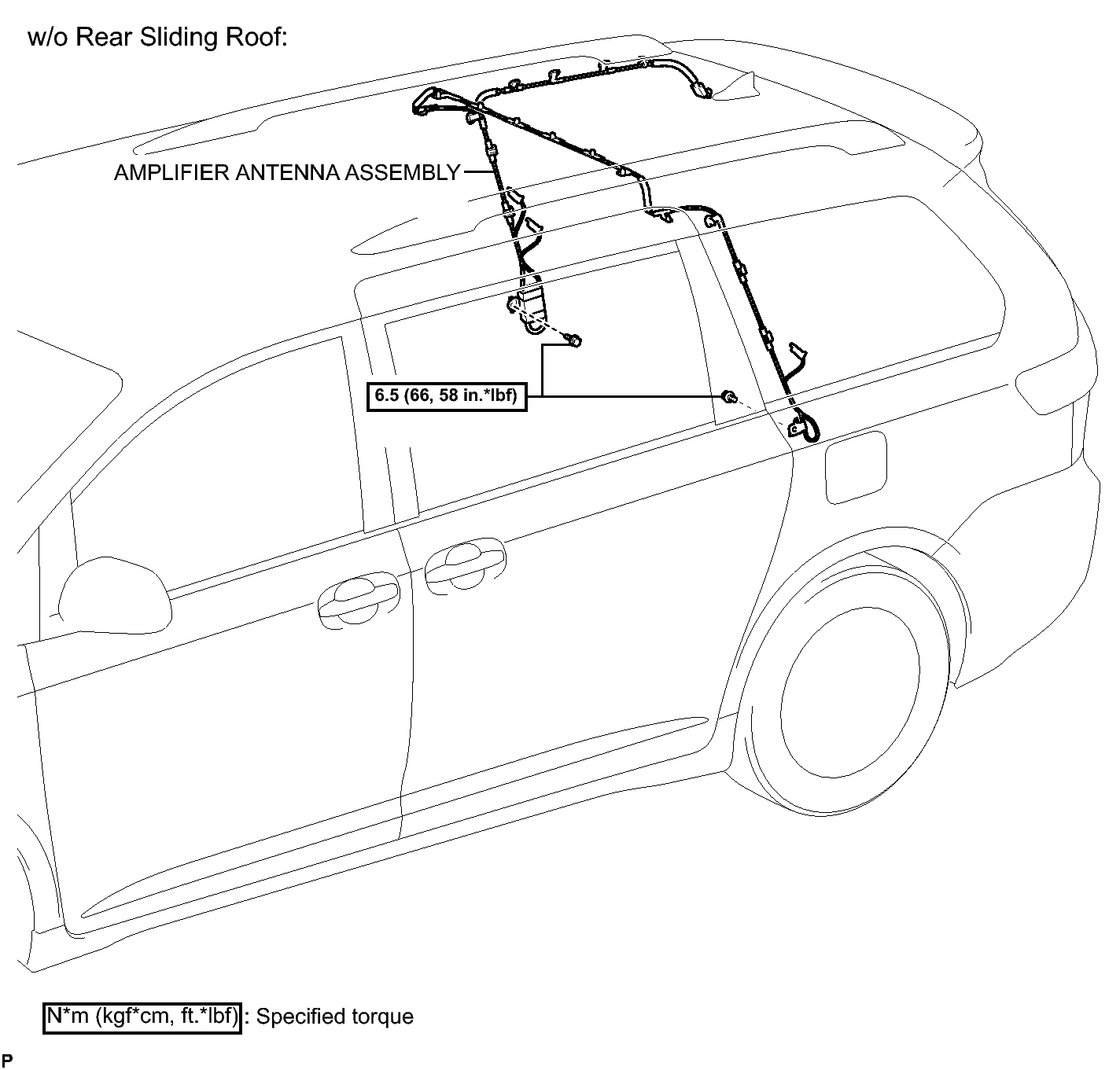

Fig 1: Amplifier Antenna Replacement Components With Torque Specifications (1 Of 2)
GTY300635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

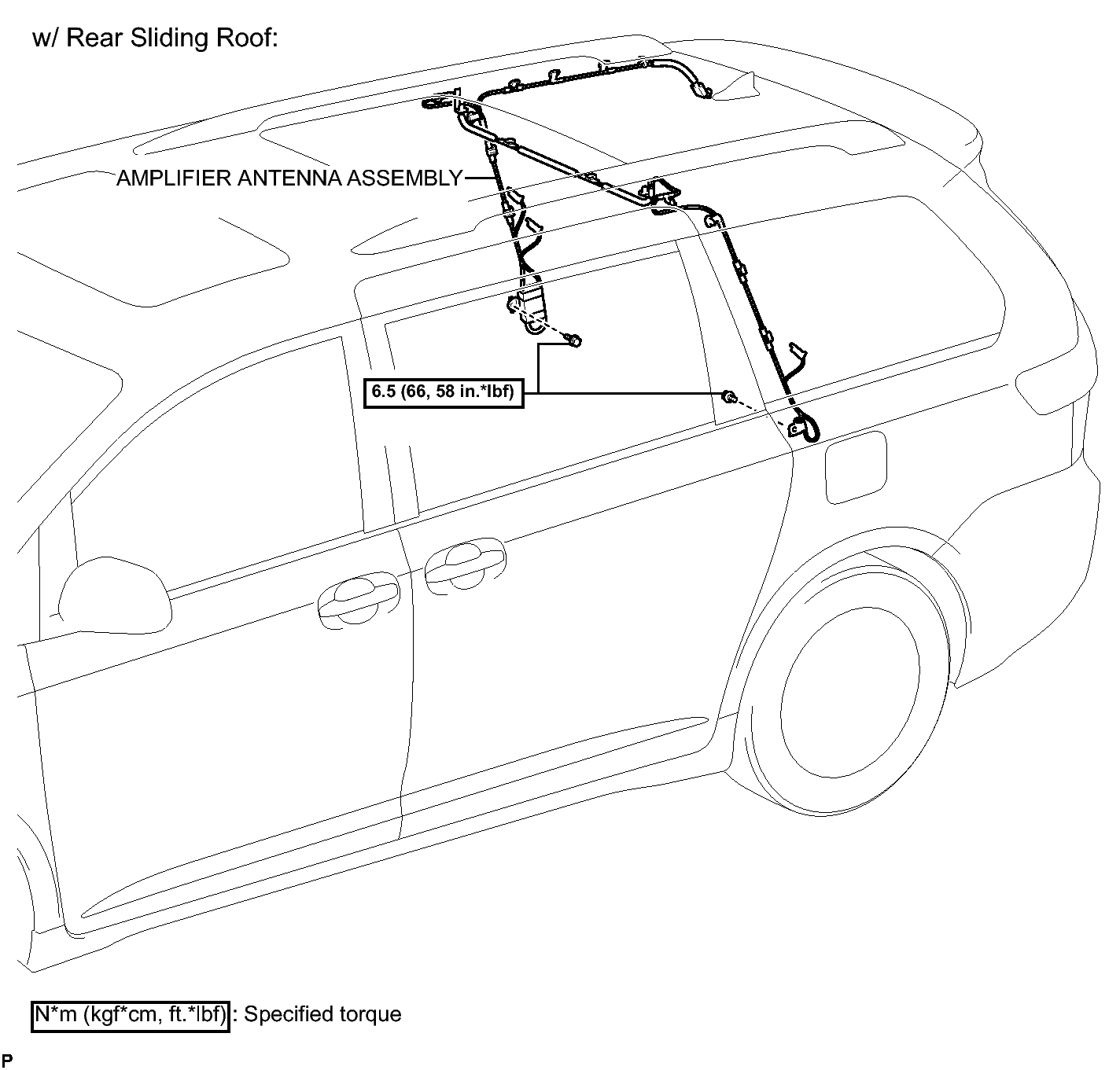

Fig 1: Amplifier Antenna Replacement Components With Torque Specifications (2 Of 2)
GTY297167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
