Speaker Circuit (Independent Amplifier): Wiring Diagram

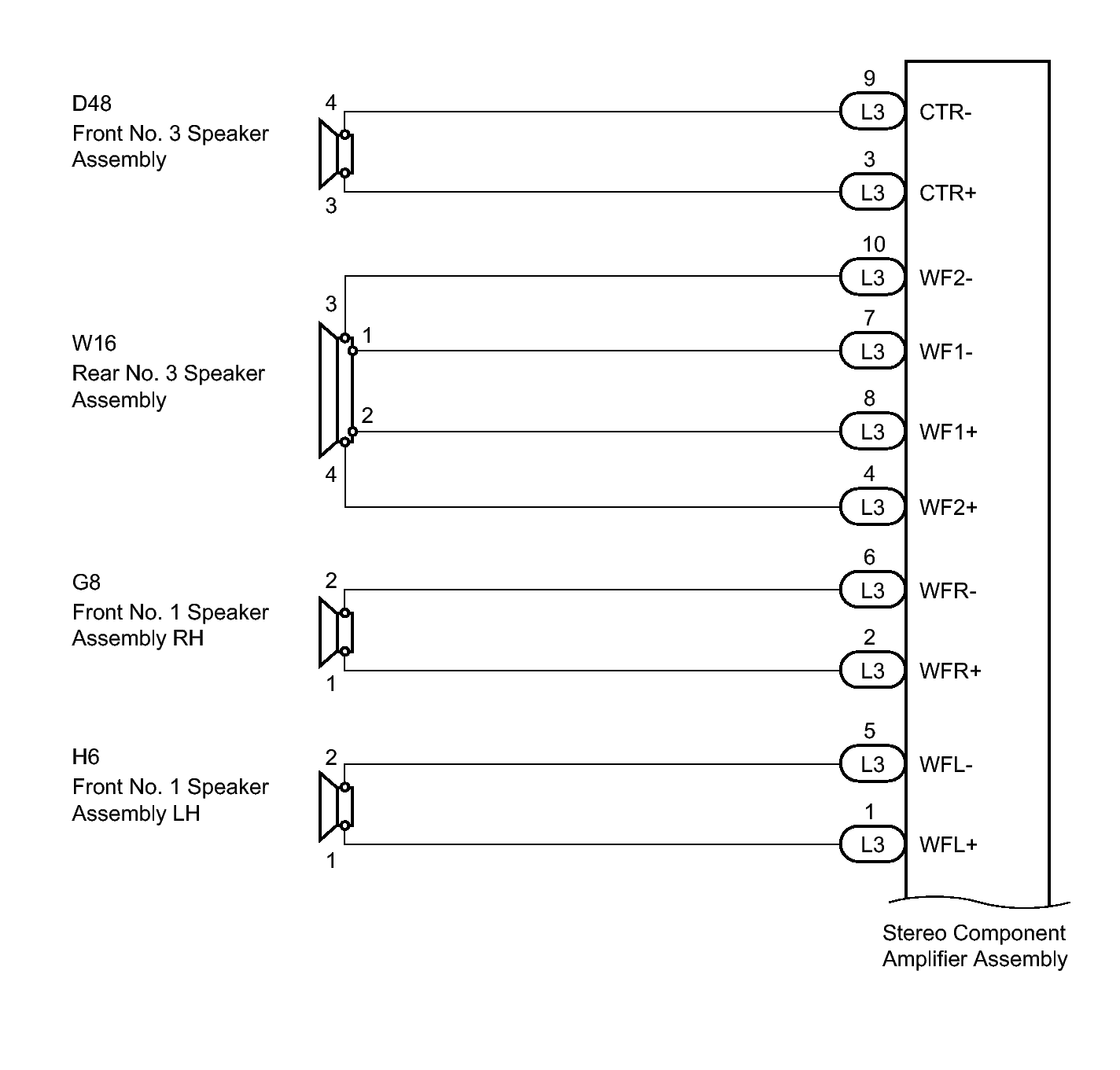

Fig 1: Speaker Circuit Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

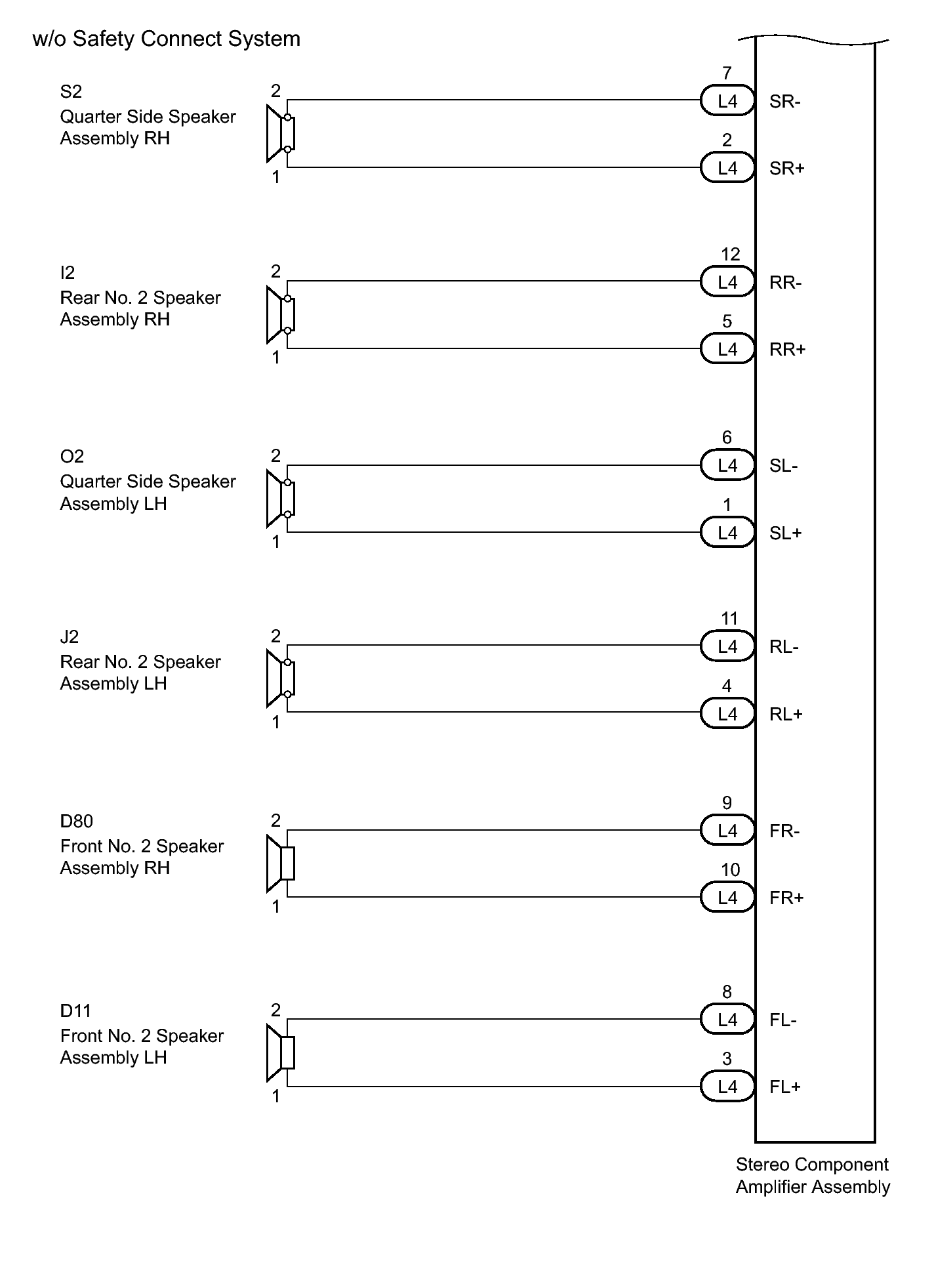

Fig 2: Speaker Circuit Wiring Diagram (w/o Saftey Connect System) (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

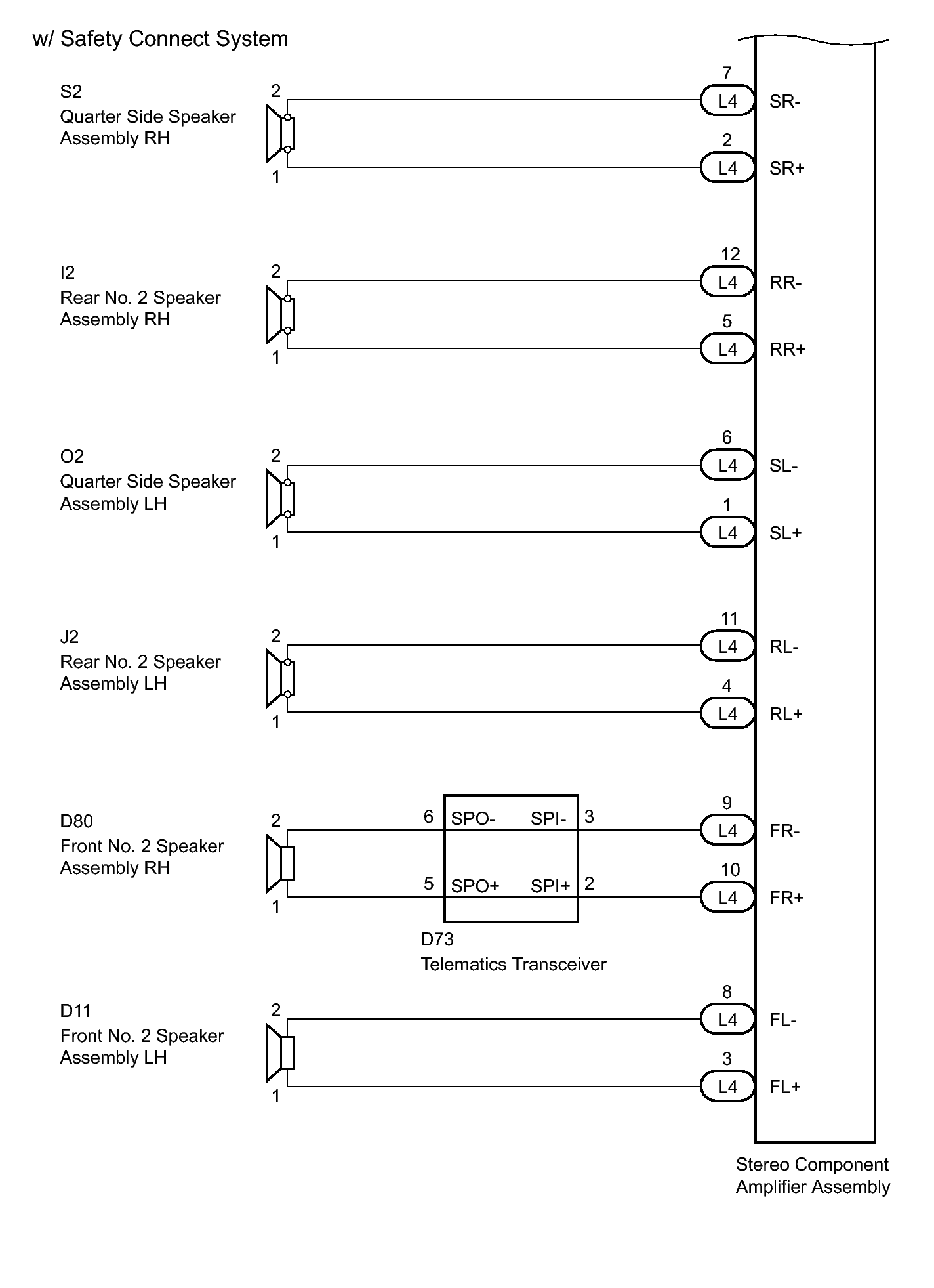

Fig 3: Speaker Circuit Wiring Diagram (w/ Saftey Connect System) (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
