Illumination Circuit: Wiring Diagram

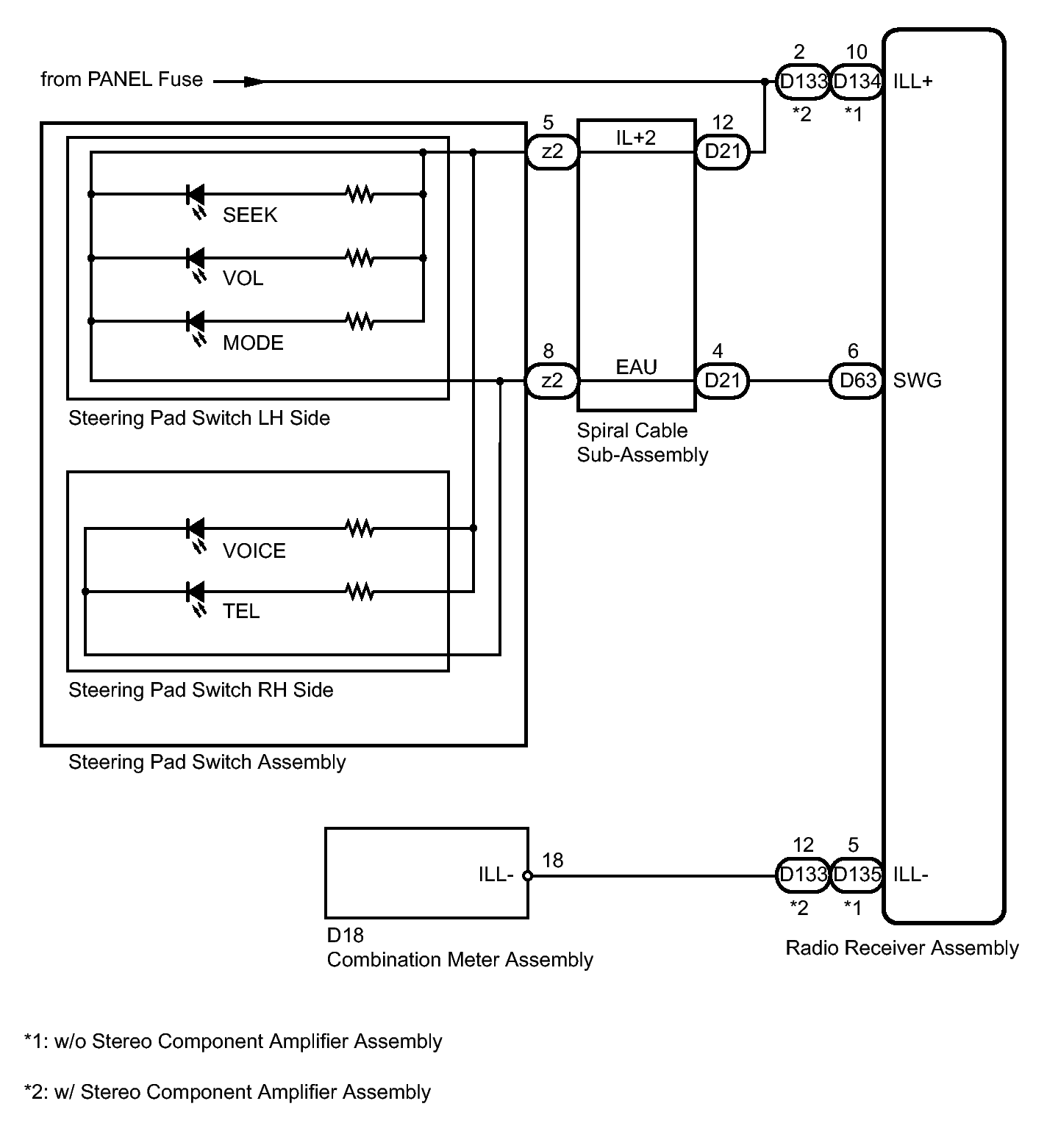

Fig 1: Steering Pad Switch Assembly Circuit Wiring Diagram

GTY295501

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
