Windshield Deicer does not Operate: Wiring Diagram

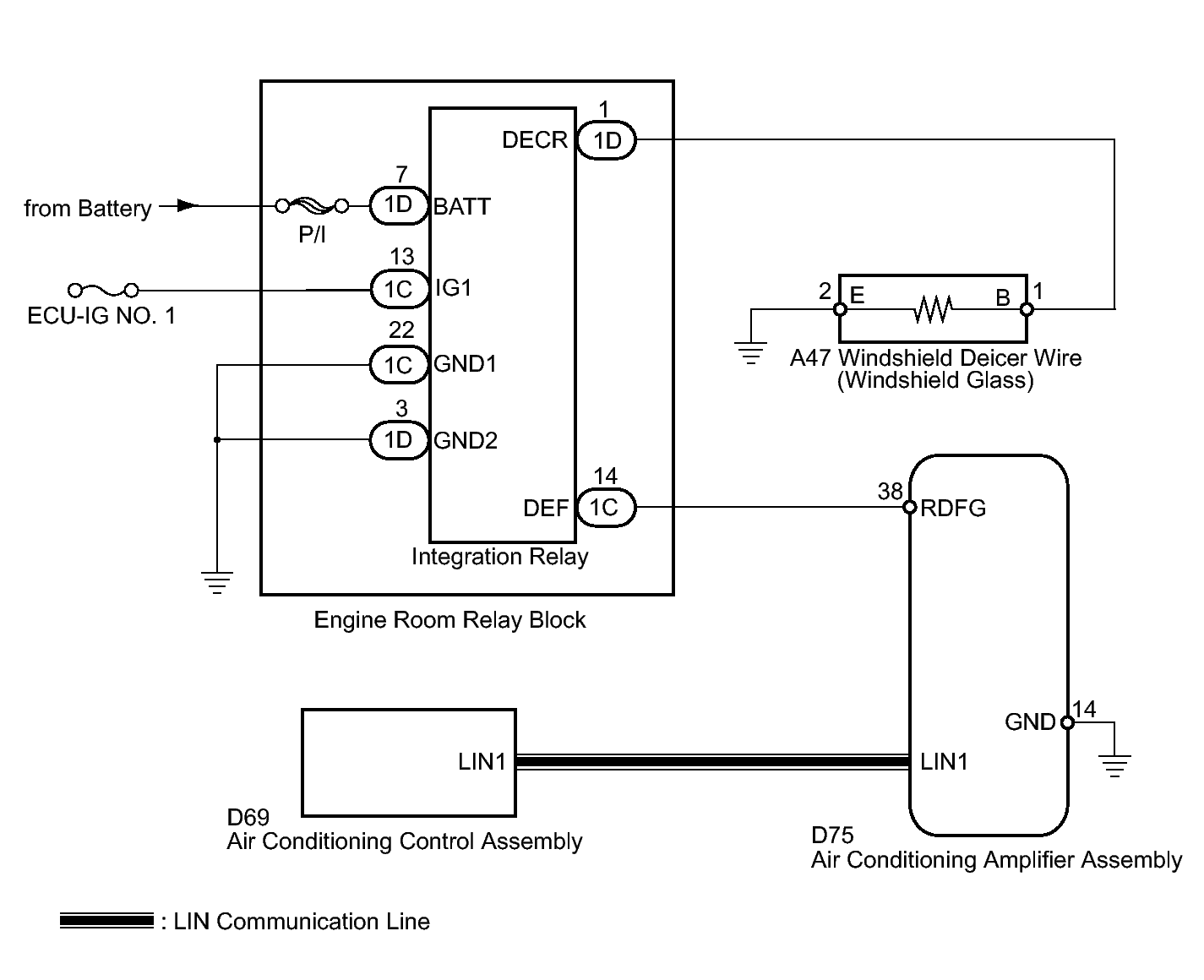

Fig 1: Windshield Deicer - Wiring Diagram

GTY294738

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
