Parts Location: Illustration

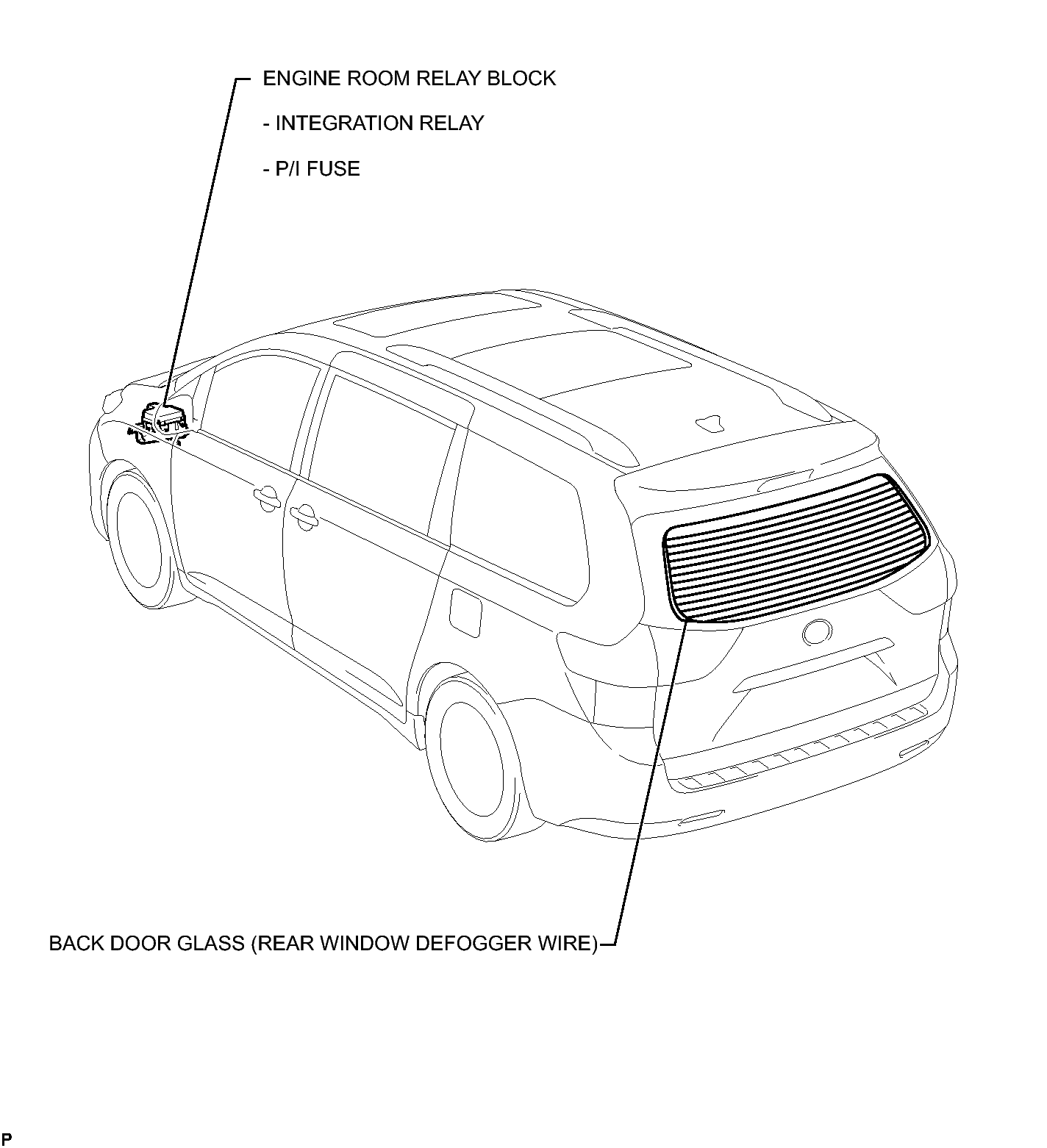

Fig 1: Window Defogger System Components Location (1 Of 2)
GTY297711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

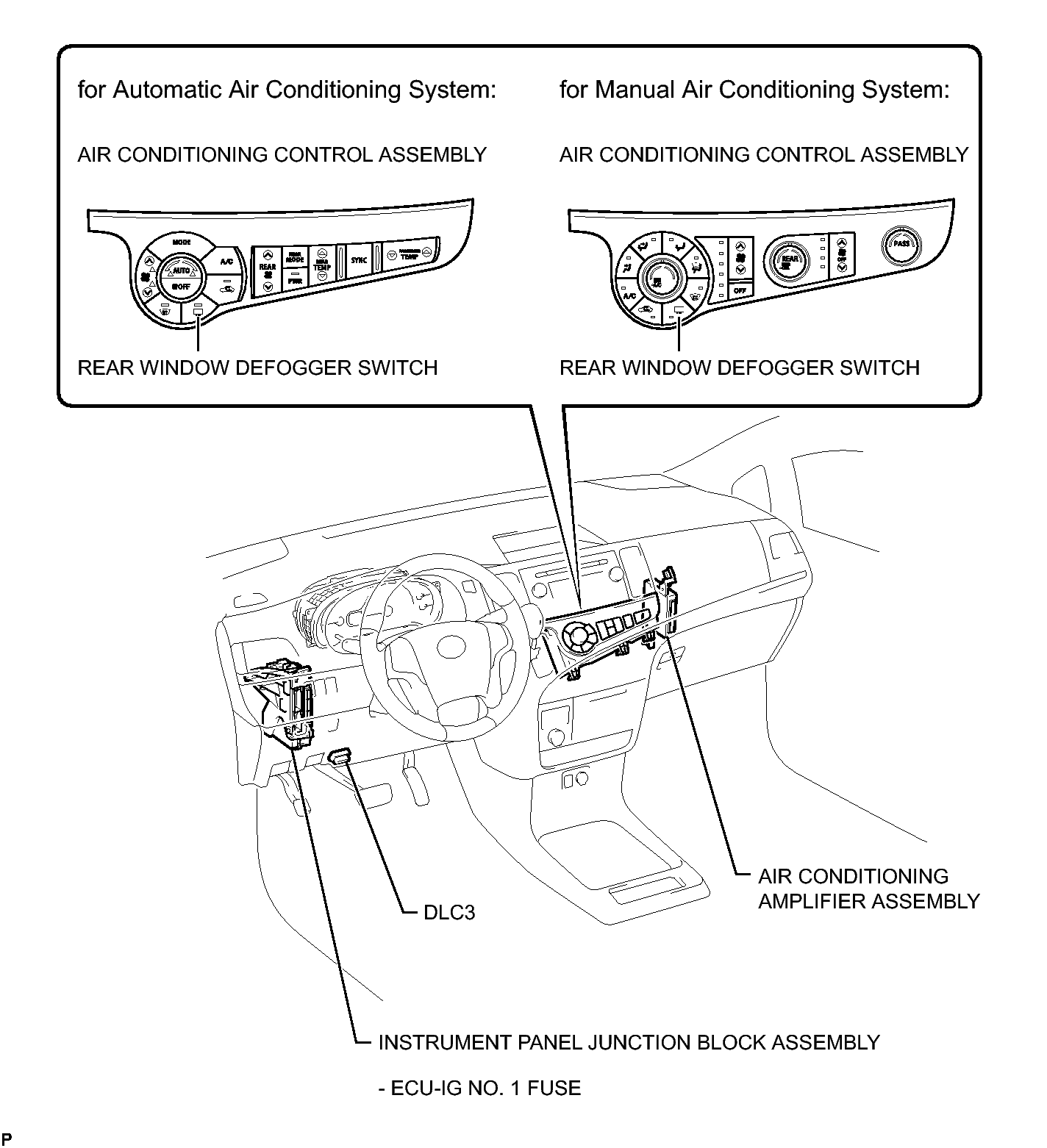

Fig 1: Window Defogger System Components Location (2 Of 2)
GTY294933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
