Rear Light Assembly: Components: Illustration

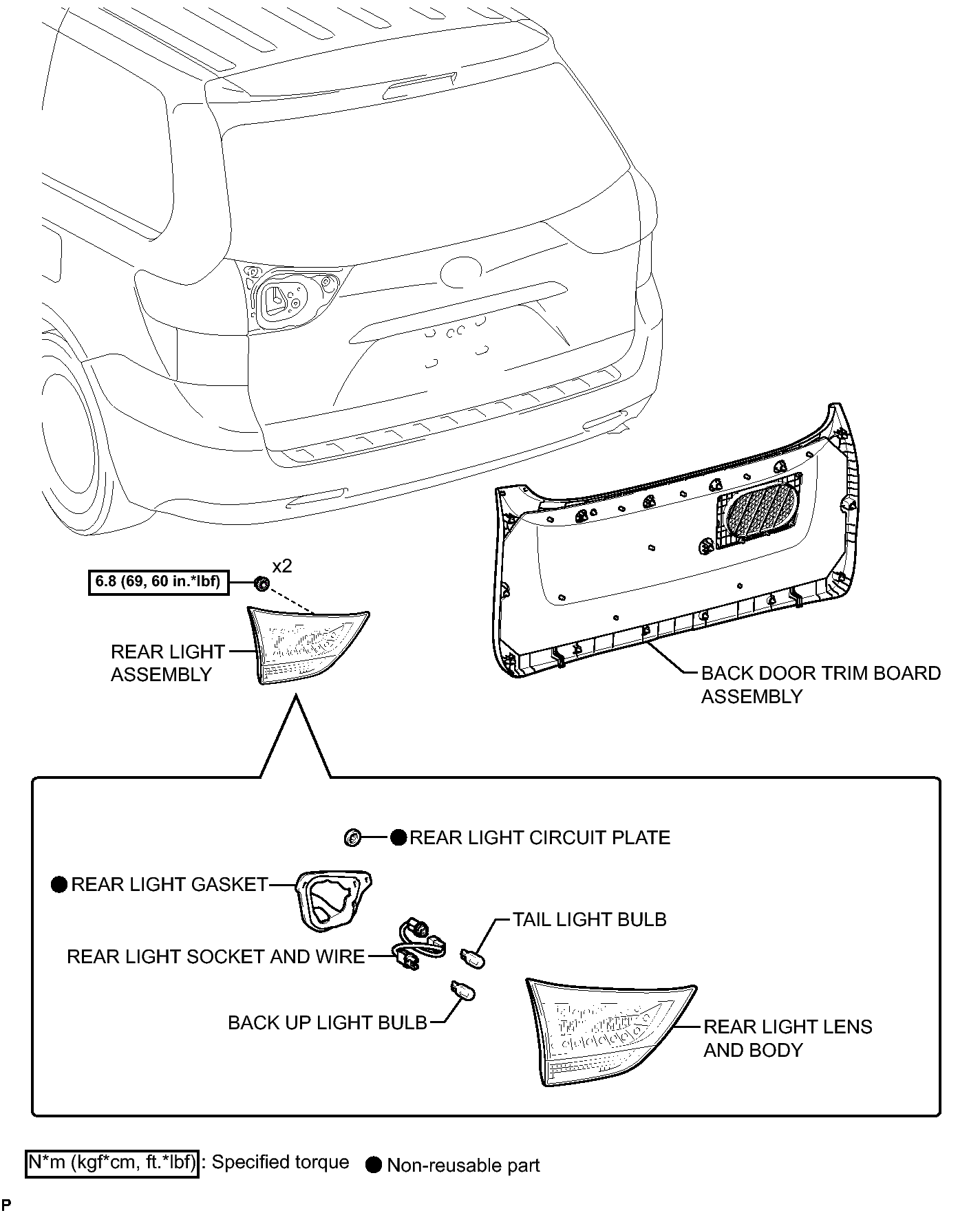

Fig 1: Rear Light Assembly Replacement Components With Torque Specifications

GTY307652

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
