High Intensity Discharge Headlight Bulb: Components: Illustration

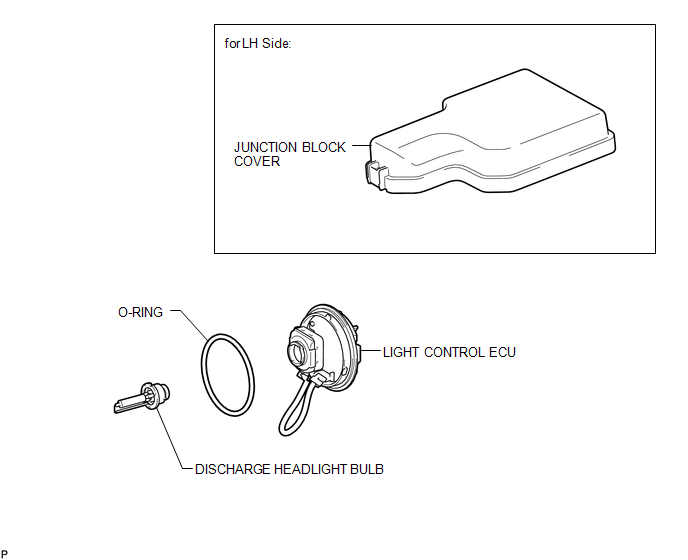

Fig 1: High Intensity Discharge Headlight Bulb Replacement Components

GTY295299

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
