Headlight Assembly: Removal: Removal

HINT:

• Use the same procedure for both the RH and LH sides.
• The procedure described below is for the LH side.

1. PRECAUTION

   Refer to PRECAUTION

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
   WARNING:

   Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

   NOTE:

   When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .

3. REMOVE FRONT BUMPER COVER

   Refer to REMOVAL

4. REMOVE HEADLIGHT ASSEMBLY

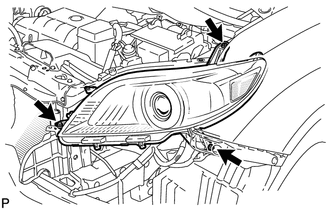

   Fig 1: Identifying Headlight Assembly & Fasteners

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   WARNING:

   For HID-equipped vehicles, when the light control switch is set to HEAD or has recently been set to OFF, the light control ECU can be extremely hot, so make sure that components have cooled down before beginning work.

   1. Remove the bolt and 2 screws.
   2. Disconnect the connectors and then remove the headlight.
