Hazard Warning Switch: Components: Illustration

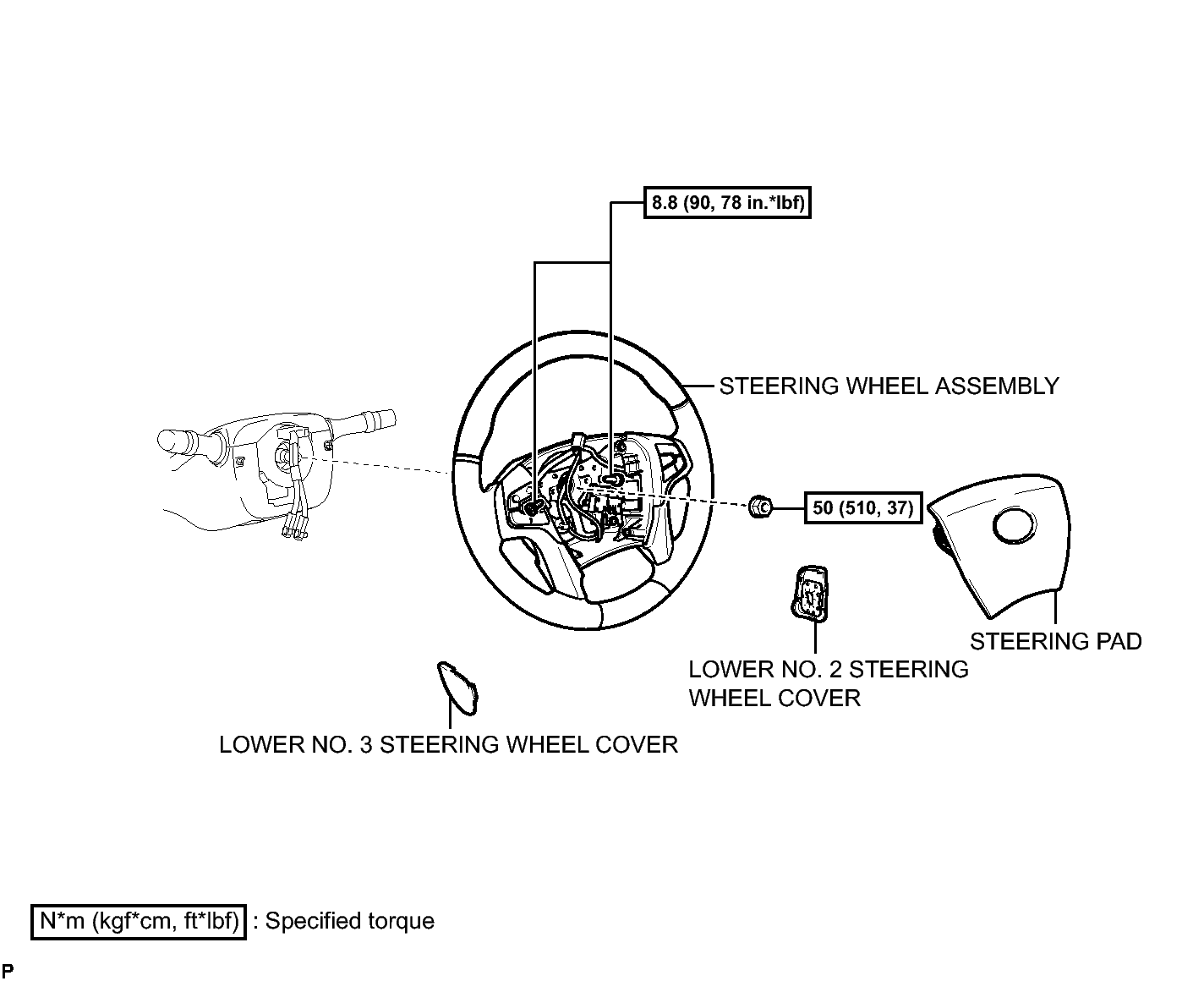

Fig 1: Hazard Warning Switch Replacement Components With Torque Specifications (1 Of 2)
GTY295321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

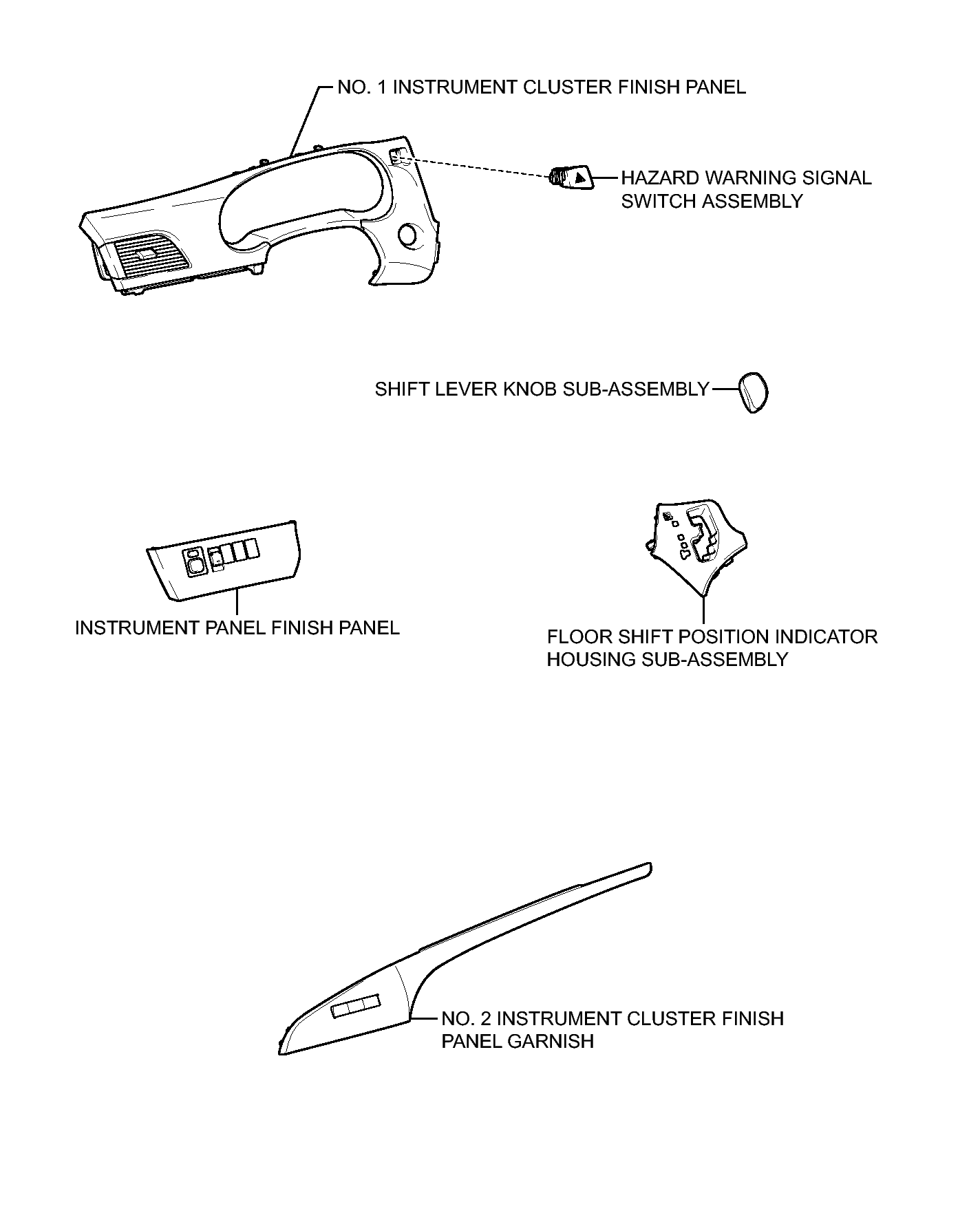

Fig 1: Hazard Warning Switch Replacement Components (2 Of 2)
GTY298725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
