Parts Location: Illustration

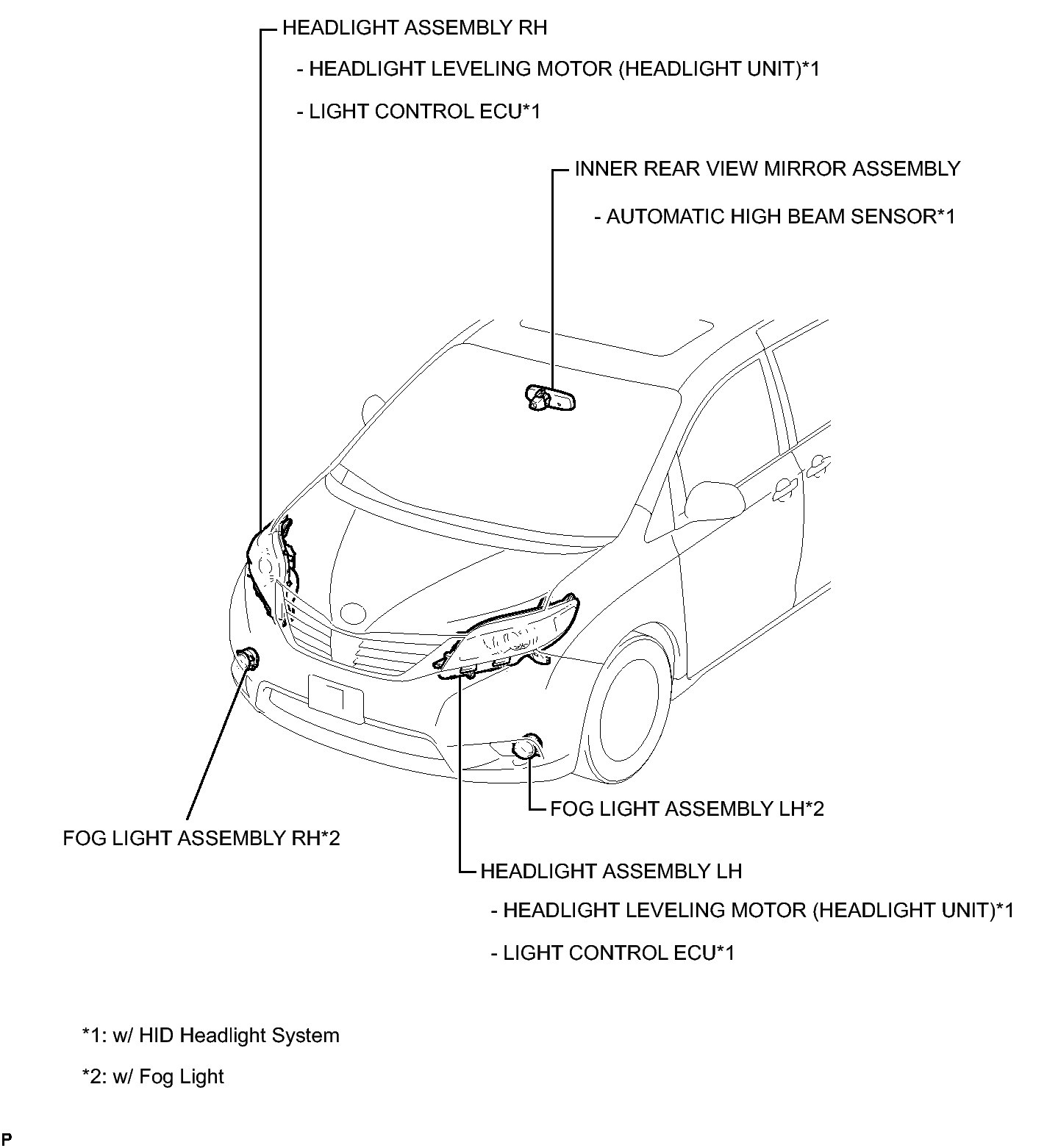

Fig 1: Exterior Lighting System Components Location (1 Of 5)
GTY337398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

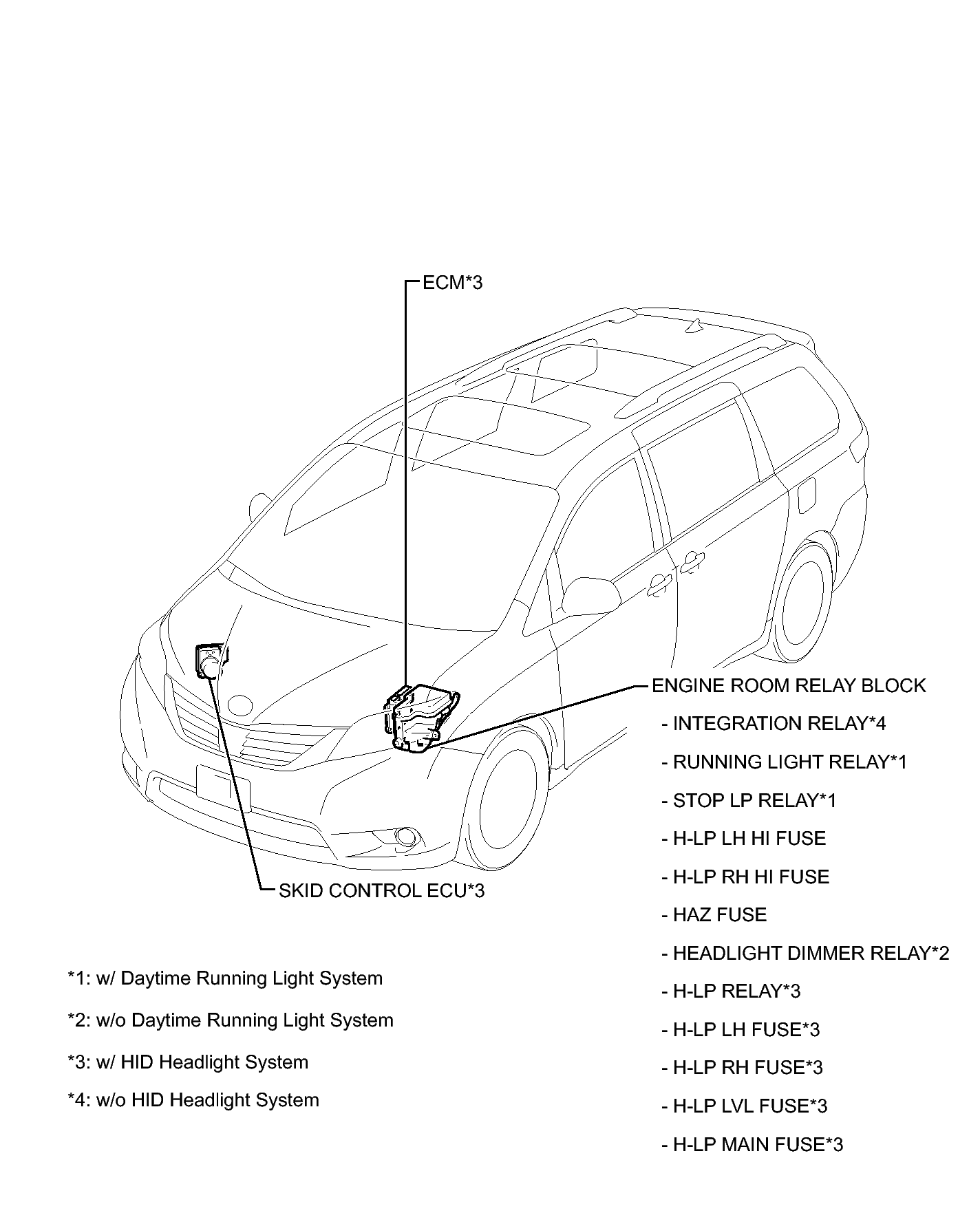

Fig 1: Exterior Lighting System Components Location (2 Of 5)
GTY324365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

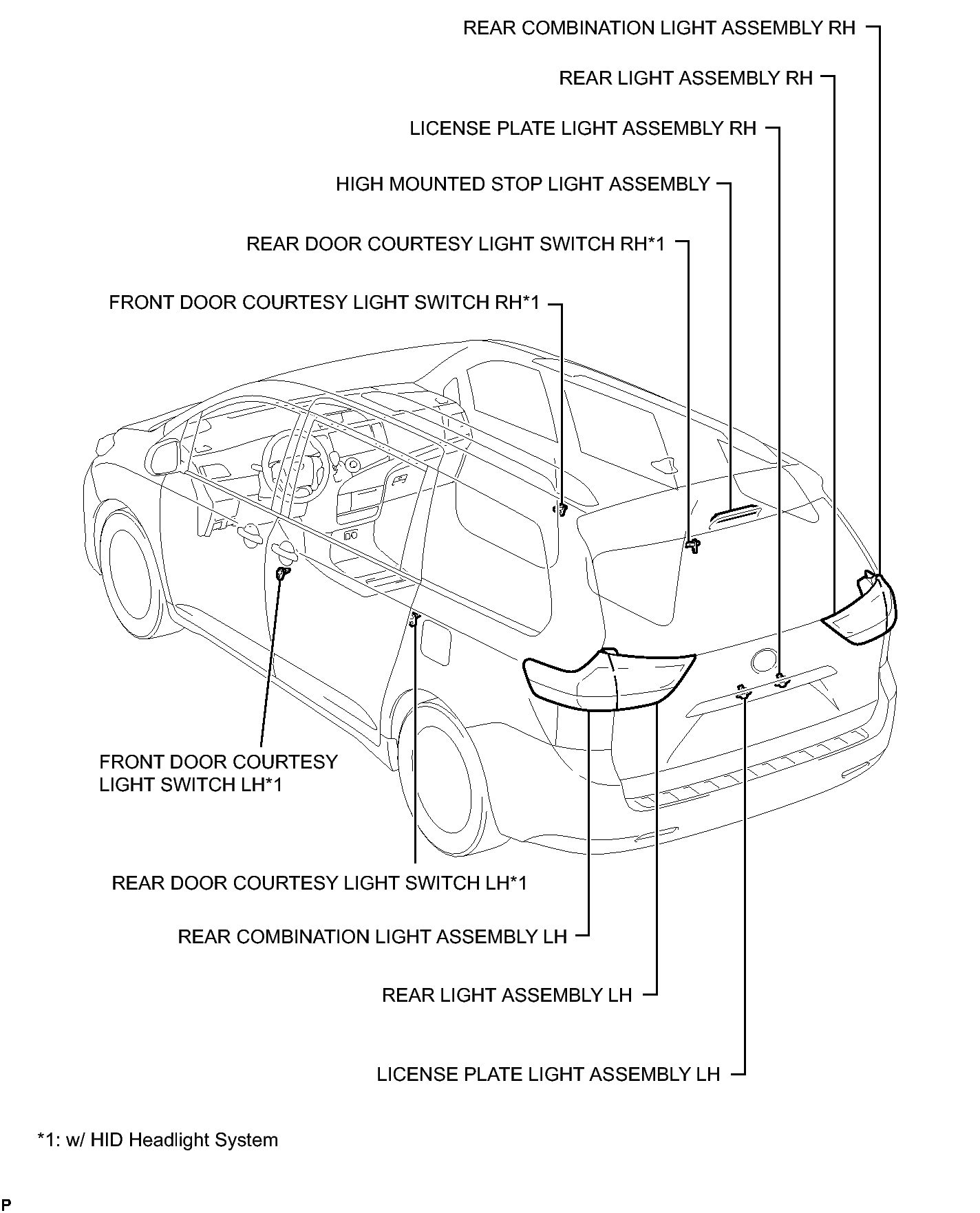

Fig 1: Exterior Lighting System Components Location (3 Of 5)
GTY304069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

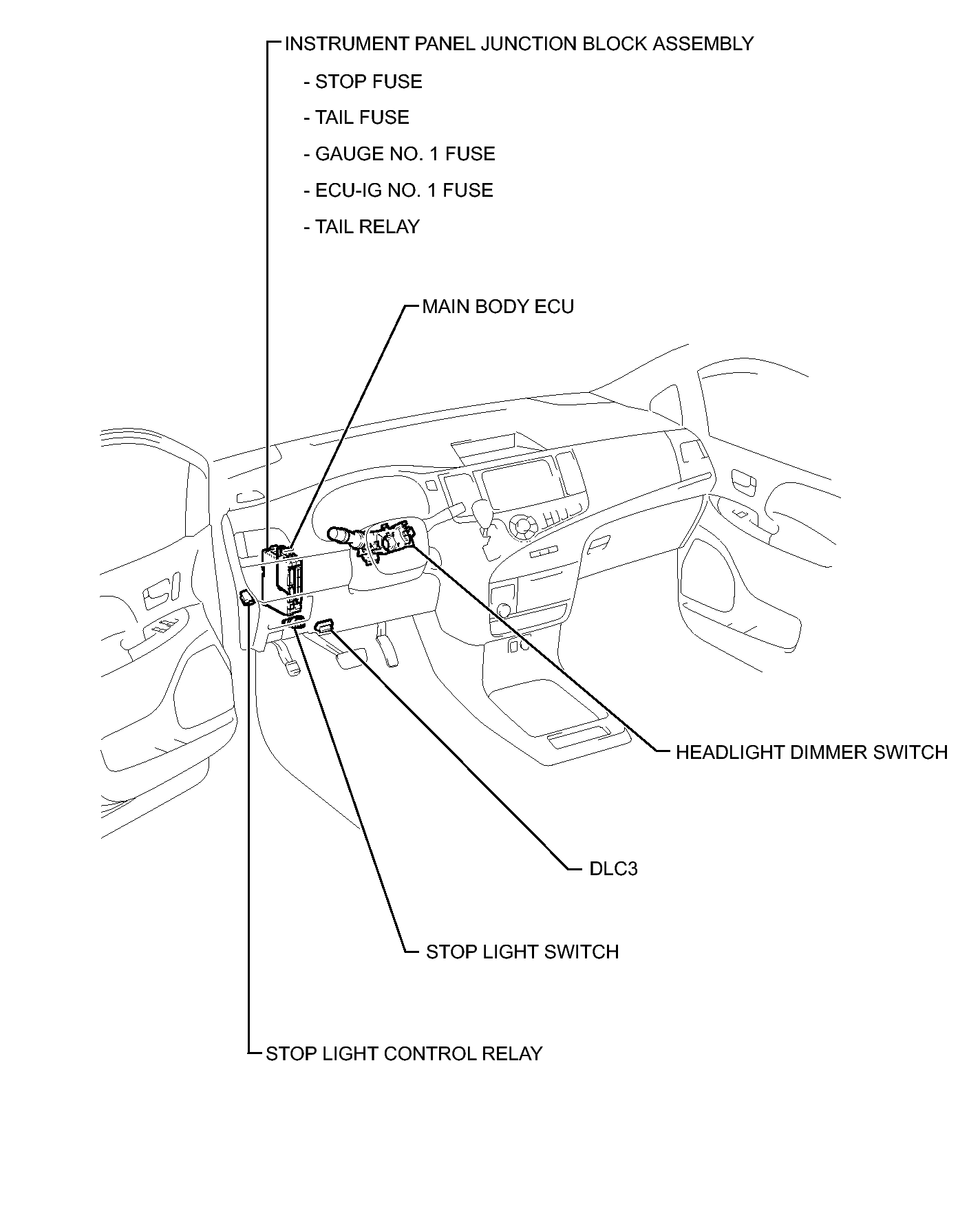

Fig 1: Exterior Lighting System Components Location (4 Of 5)
GTY301395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

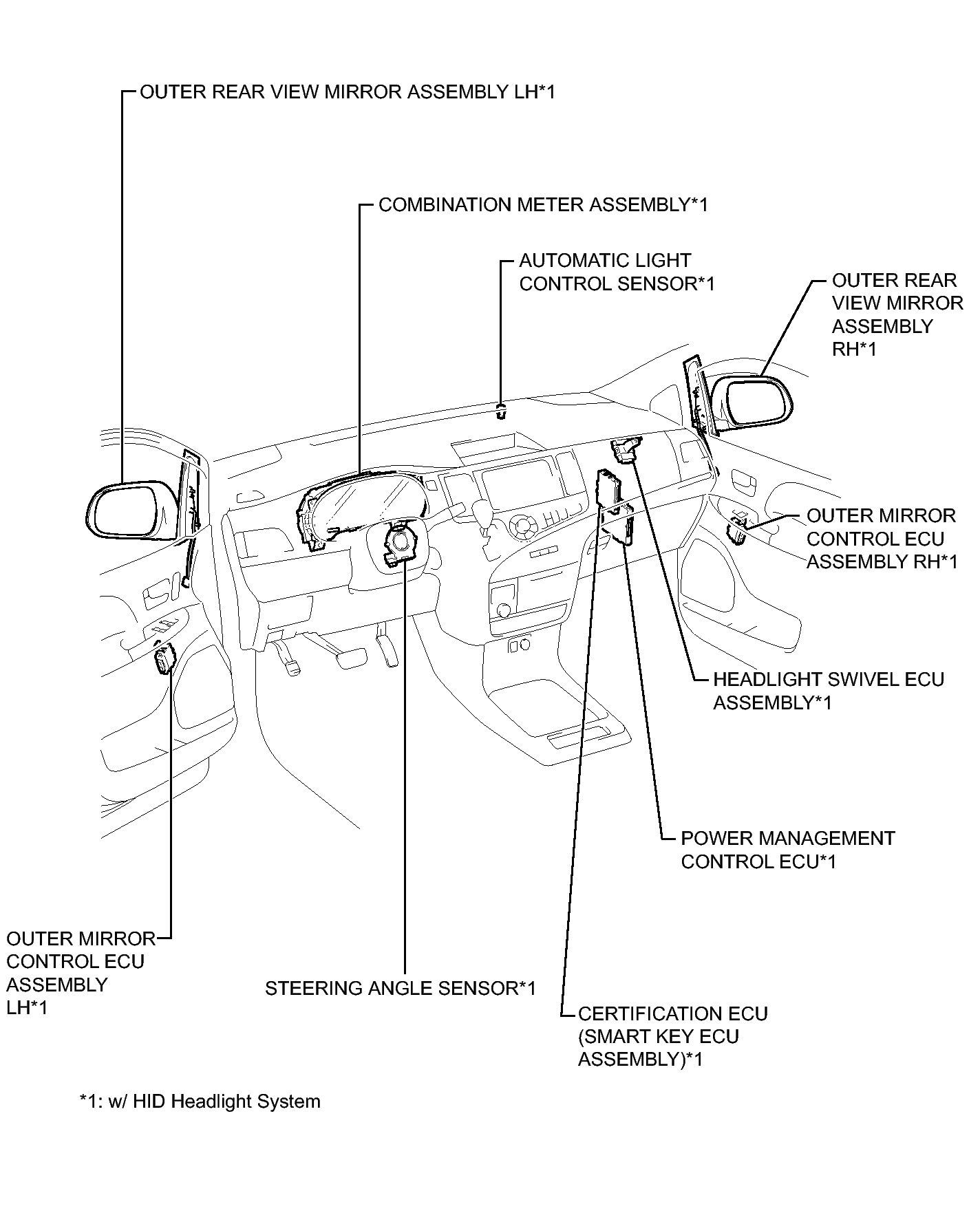

Fig 1: Exterior Lighting System Components Location (5 Of 5)
GTY302741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
