Fog Light Assembly: Components: Illustration

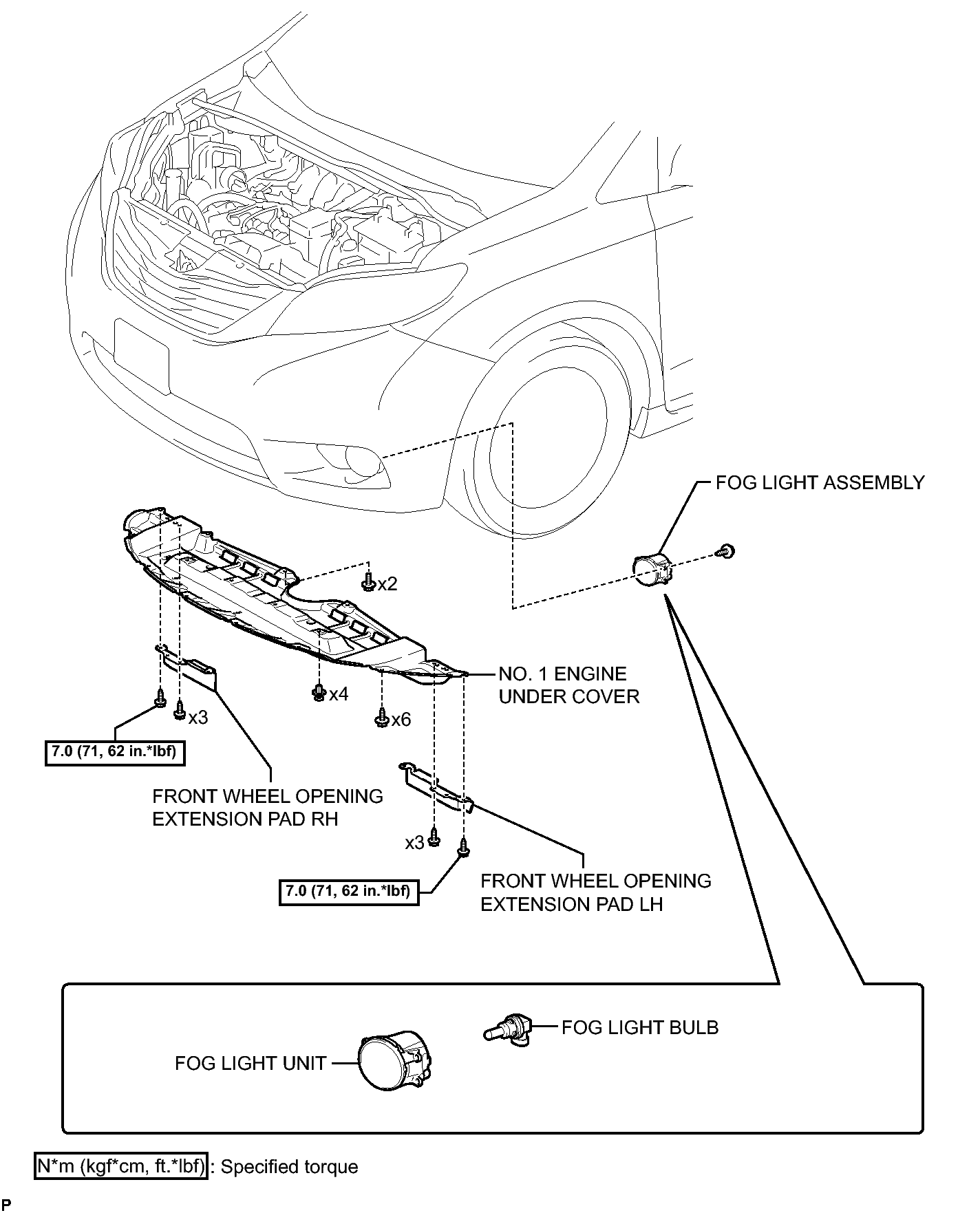

Fig 1: Fog Light Assembly Replacement Components With Torque Specifications

GTY297556

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
