DTC B15C5: Manual Button Malfunction: Wiring Diagram

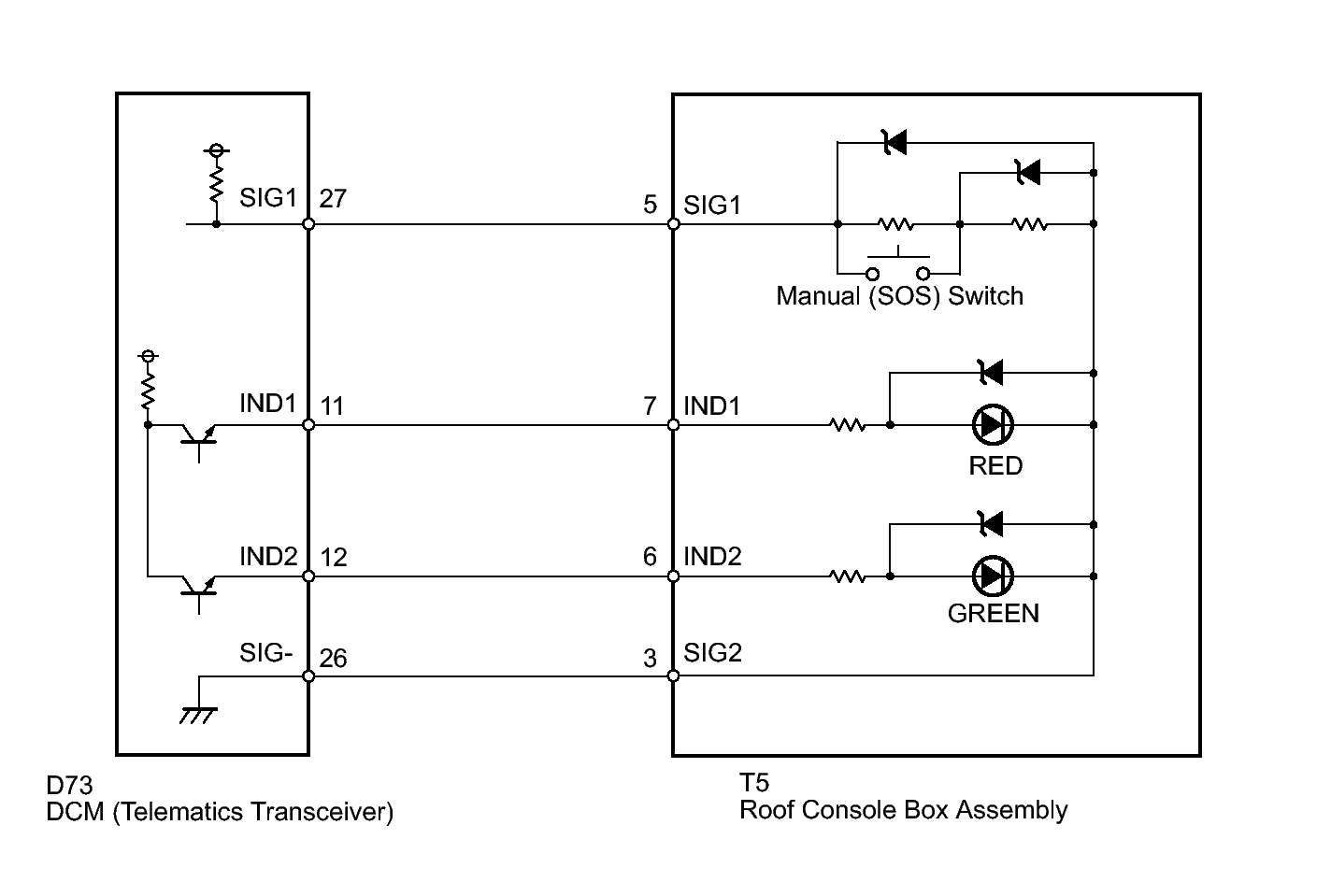

Fig 1: Roof Console Box Assembly - Wiring Diagram

GTY303364

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
