Parts Location: Illustration

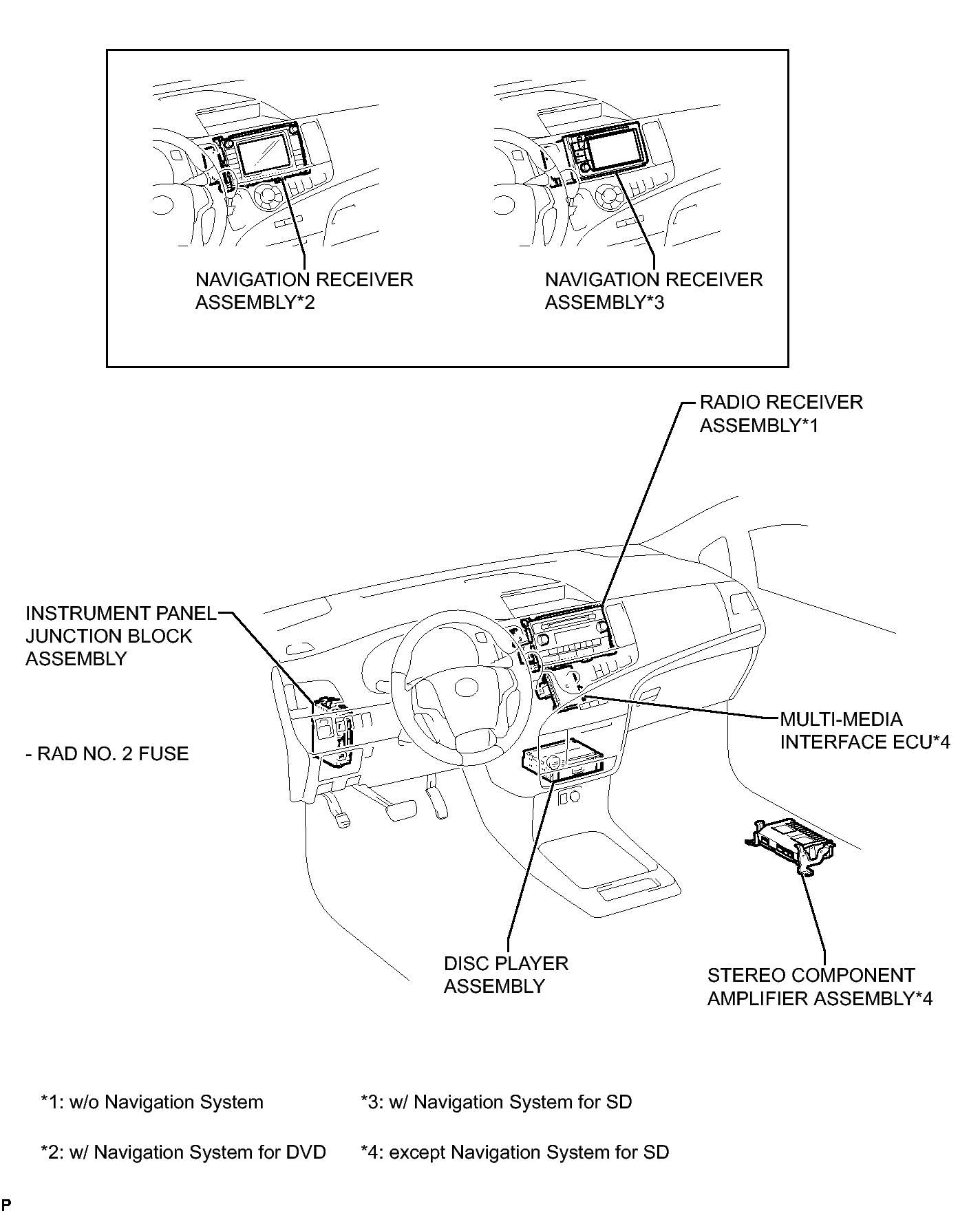

Fig 1: Rear Seat Entertainment System Component Locations (1 Of 2)
GTY334855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

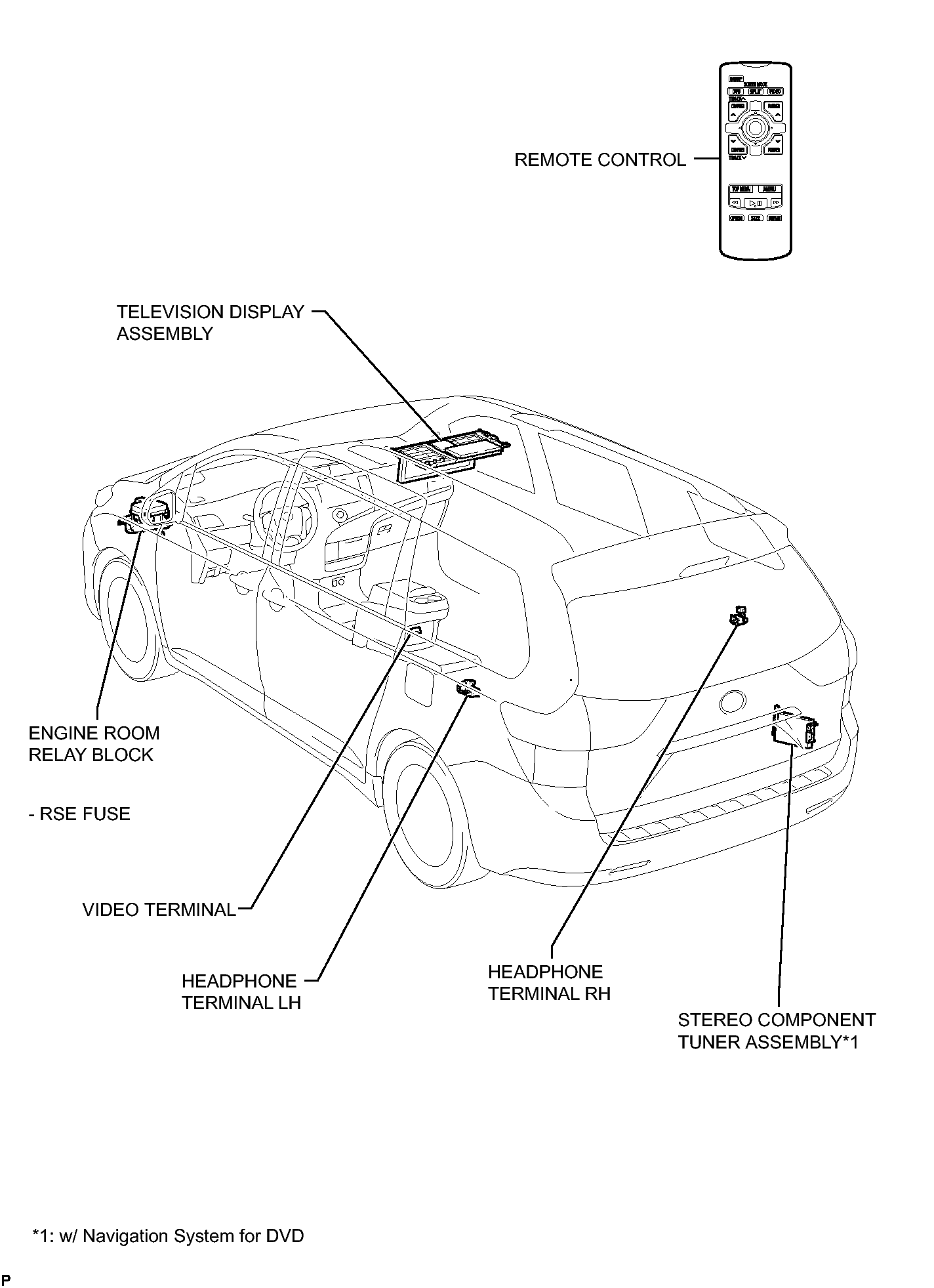

Fig 1: Rear Seat Entertainment System Component Locations (2 Of 2)
GTY335424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
