Radio Antenna Holder: Removal: Removal

  1. REMOVE DOOR SCUFF PLATE ASSEMBLY RH  . Refer to REMOVAL - Step 3
  2. REMOVE COWL SIDE TRIM BOARD RH  . Refer to REMOVAL - Step 5
  3. SEPARATE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
  4. REMOVE GLOVE COMPARTMENT DOOR SUB-ASSEMBLY  . Refer to REMOVAL - Step 34
  5. REMOVE FRONT PILLAR GARNISH RH  . Refer to REMOVAL - Step 9
  6. REMOVE FRONT PILLAR LOWER GARNISH RH  . Refer to REMOVAL - Step 11
  7. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

    HINT:

    Use the same procedure as for the LH side. Refer to REMOVAL - Step 1 .

  8. SEPARATE FRONT FENDER LINER RH

    HINT:

    Use the same procedure as for the LH side. Refer to REMOVAL - Step 2 .

  9. REMOVE PULL TOP ANTENNA POLE SUB-ASSEMBLY

    Refer to REMOVAL

  10. REMOVE WITH HOLDER ANTENNA ASSEMBLY (w/o Satellite Radio)
    1. Remove the antenna ornament.
      Fig 1: Identifying Antenna Assembly Ornament
      GTY305352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector.

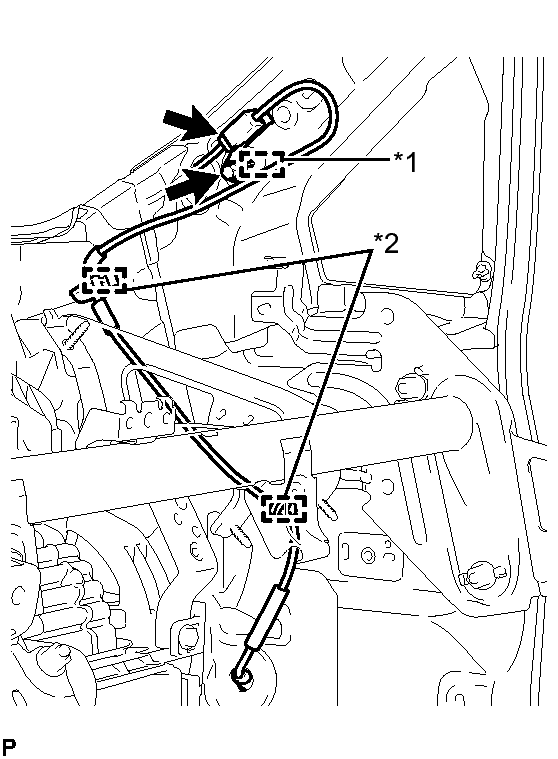

      Fig 2: Identifying Antenna Assembly, Connector & Fasteners (w/o Satellite Radio)
      GTY306177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the bolt and disengage the hook.
      TEXT IN ILLUSTRATION

      *1 Hook
      *2 Clamp
    4. Disengage the 2 clamps.
    5. Disengage the clamp.
      Fig 3: Identifying Pillar Antenna Pole, Grommet & Fasteners
      GTY300495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Hook
      *2 Clamp
    6. Disengage the grommet.
    7. Remove the bolt, disengage the hook and remove the pillar antenna pole.
  11. REMOVE WITH HOLDER ANTENNA ASSEMBLY (w/ Satellite Radio)
    1. Remove the antenna ornament.
      Fig 4: Identifying Antenna Assembly Ornament
      GTY305352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector.

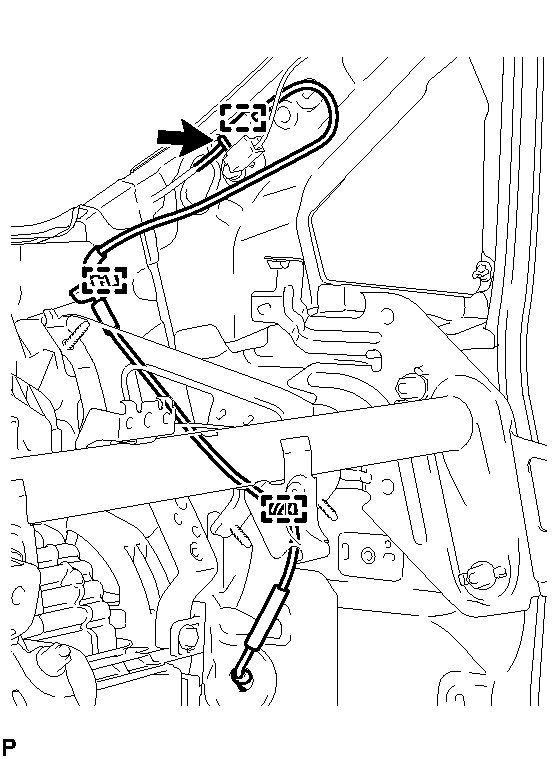

      Fig 5: Identifying Antenna Assembly, Connector & Fasteners (w/ Satellite Radio)
      GTY294960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 3 clamps.
    4. Disengage the clamp.
      Fig 6: Identifying Pillar Antenna Pole, Grommet & Fasteners
      GTY300495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Hook
      *2 Clamp
    5. Disengage the grommet.
    6. Remove the bolt, disengage the hook and remove the pillar antenna pole.
