Radio Antenna Holder: Components: Illustration

Fig 1: Radio Antenna Holder Replacement Components (1 Of 4)
GTY338418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Radio Antenna Holder Replacement Components With Torque Specifications (2 Of 4)
GTY297150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

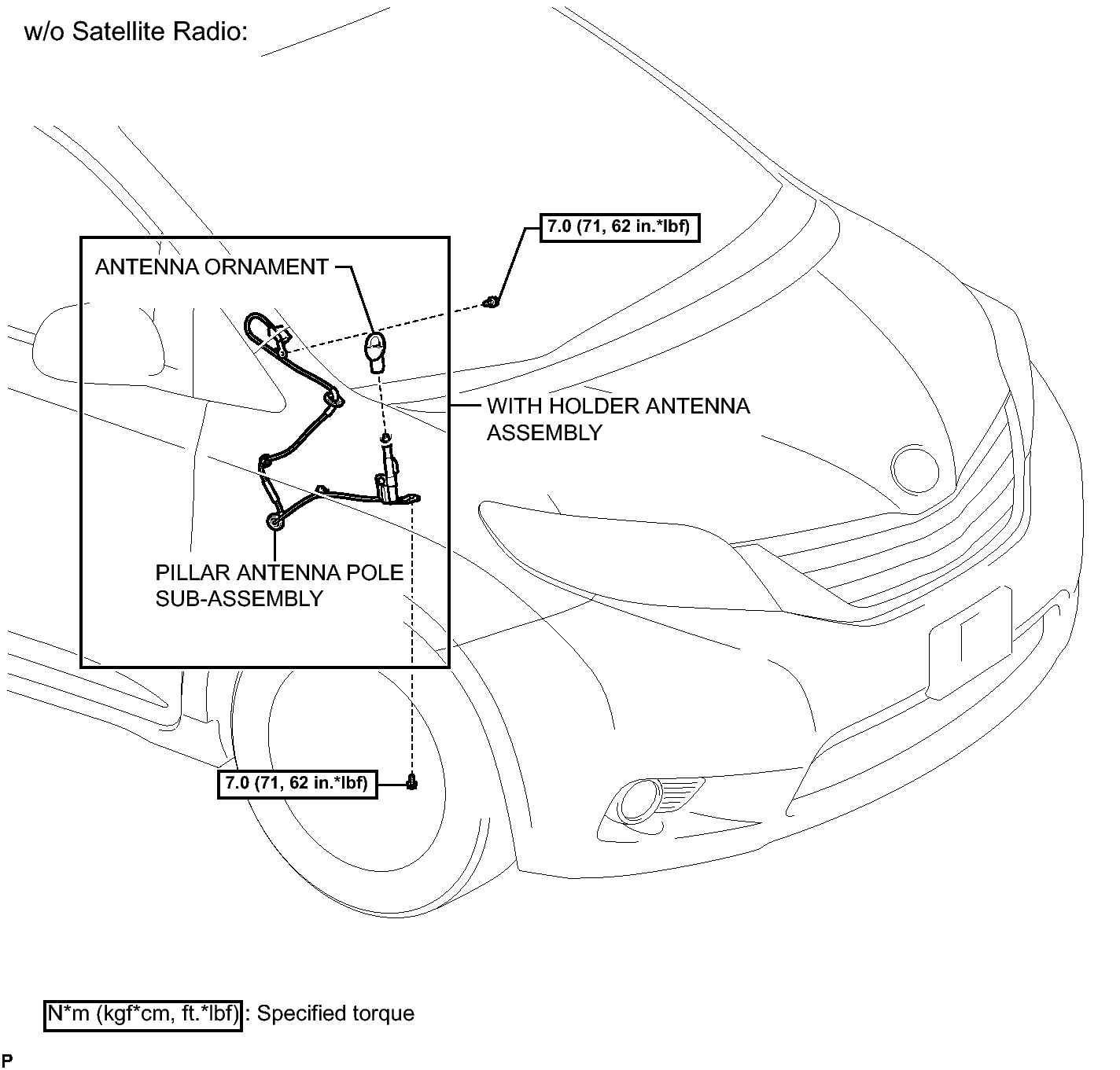

Fig 1: Radio Antenna Holder Replacement Components With Torque Specifications (3 Of 4)
GTY305096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

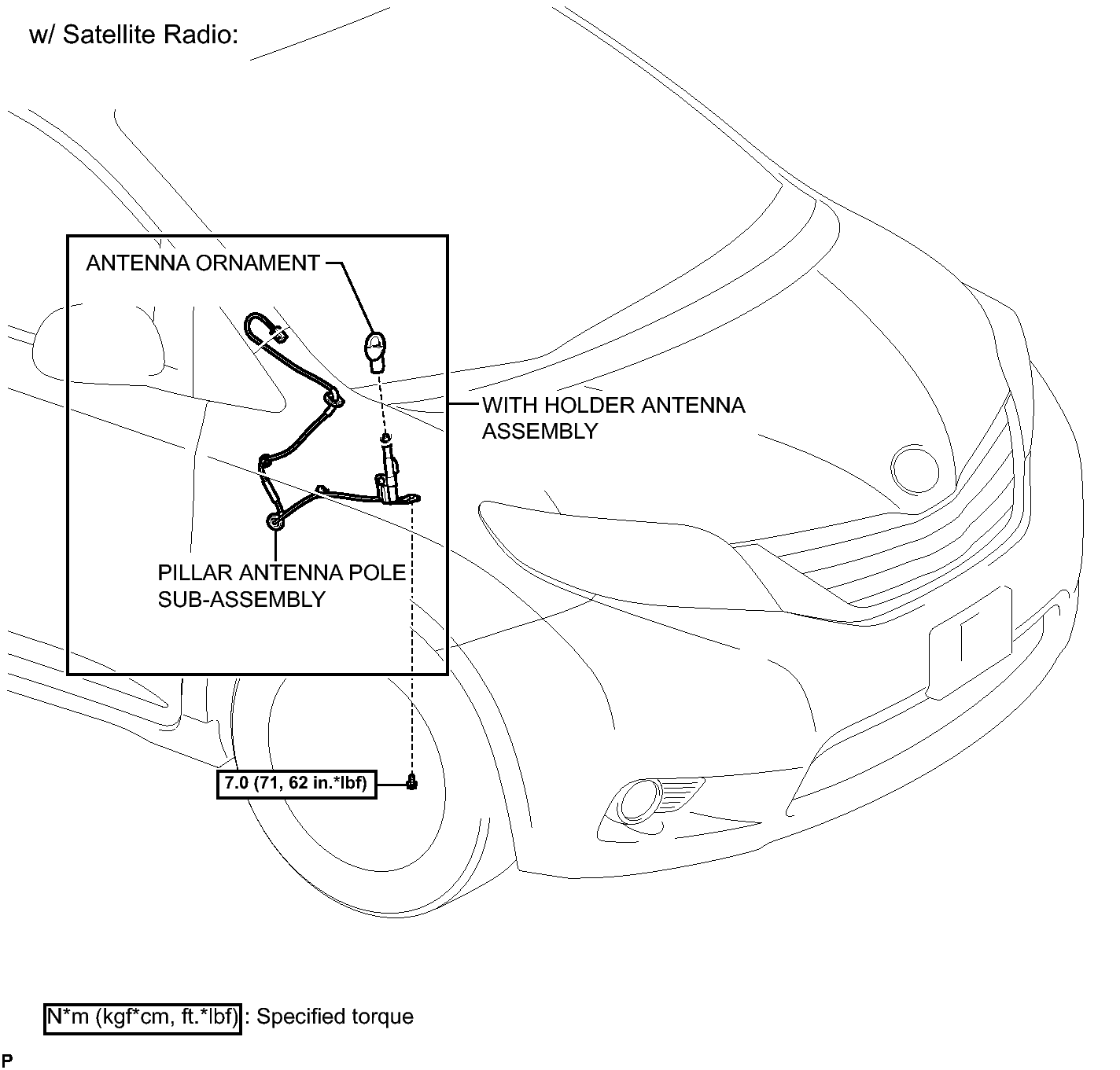

Fig 1: Radio Antenna Holder Replacement Components With Torque Specifications (4 Of 4)
GTY300164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
