Speaker Circuit (Built-in Amplifier): Wiring Diagram

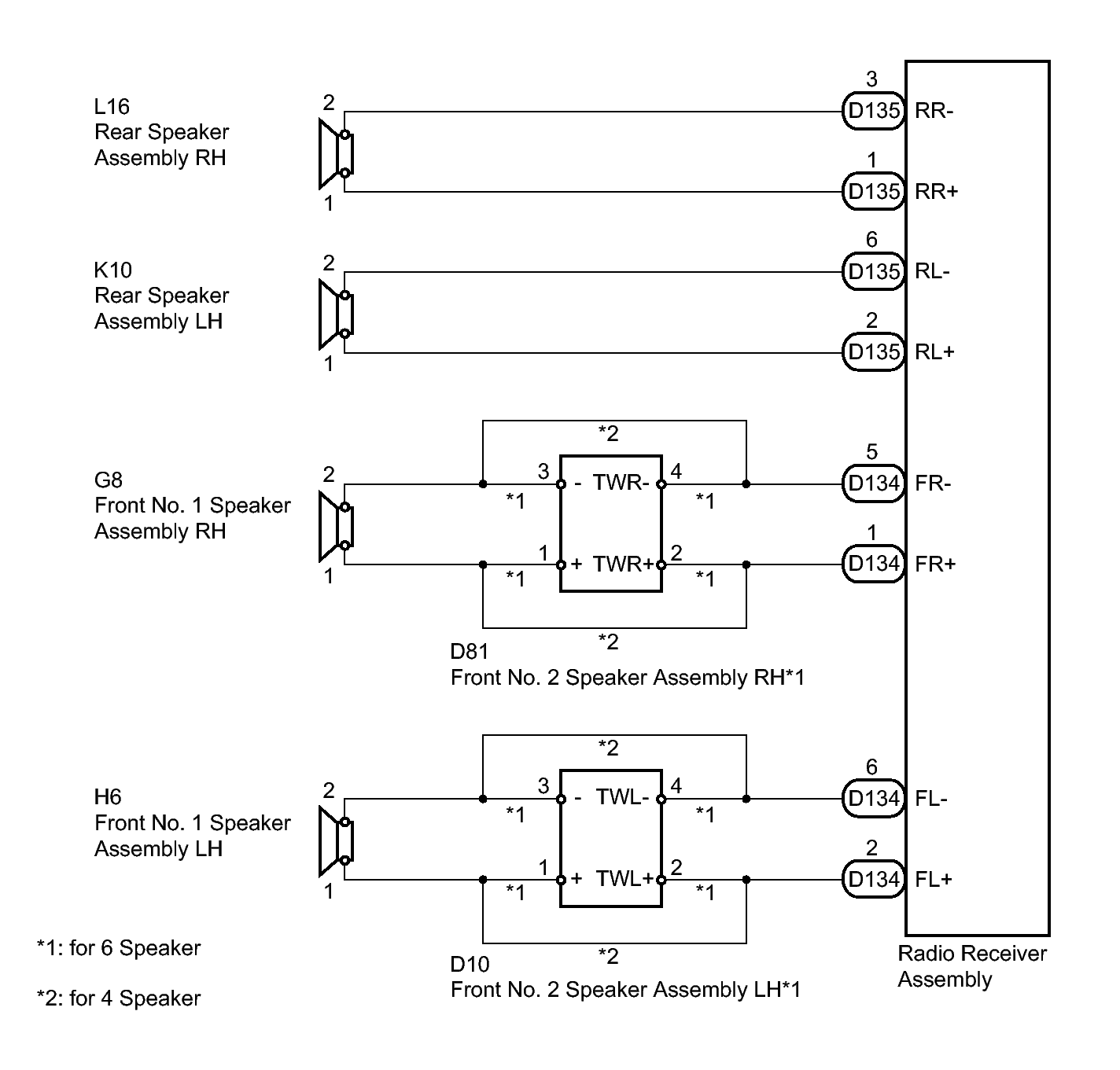

Fig 1: Speaker Circuit Wiring Diagram (Built-In Amplifier)

GTY300551

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
