DTC U0104: Lost Communication with Driving Support ECU: Wiring Diagram

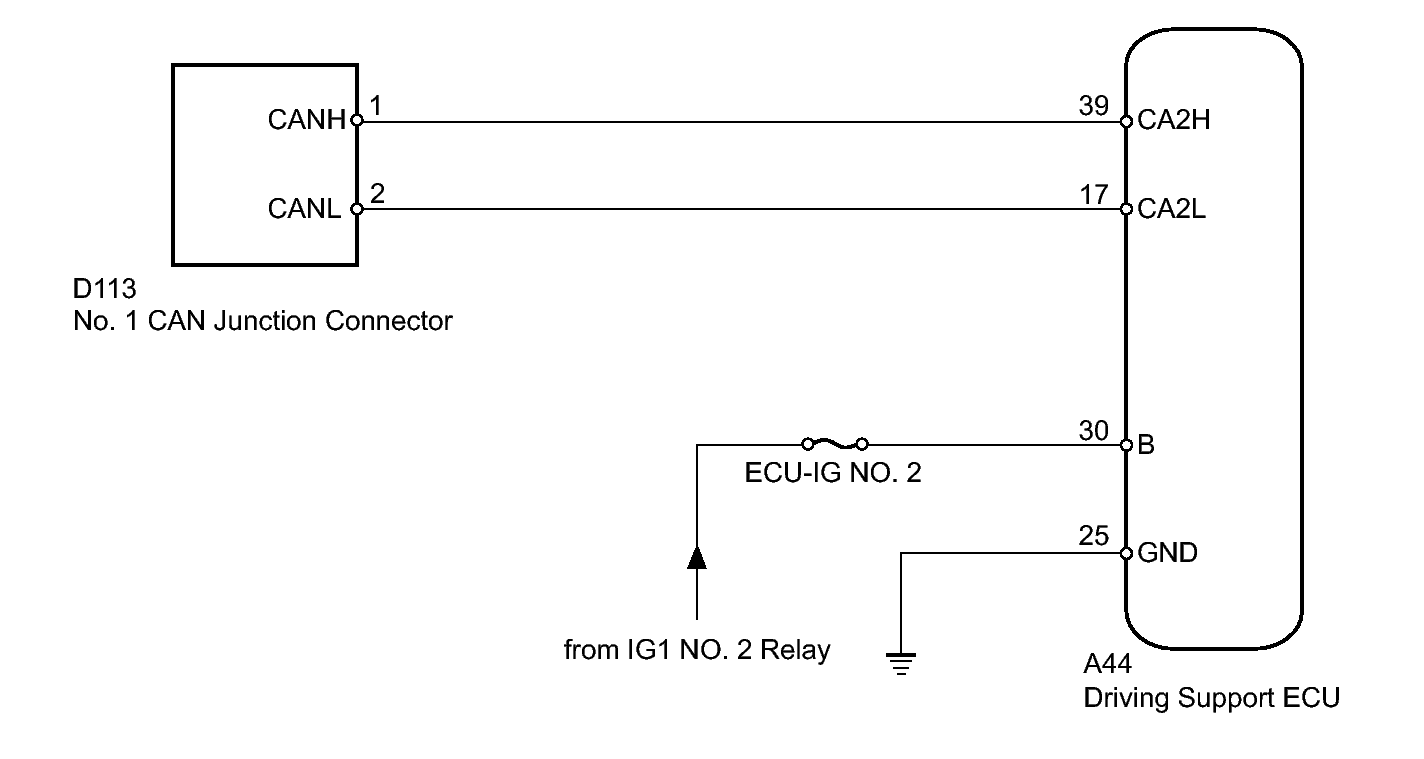

Fig 1: Driving Support ECU Wiring Diagram

GTY307598

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
