DTC U0100: Lost Communication with ECM / PCM: Wiring Diagram

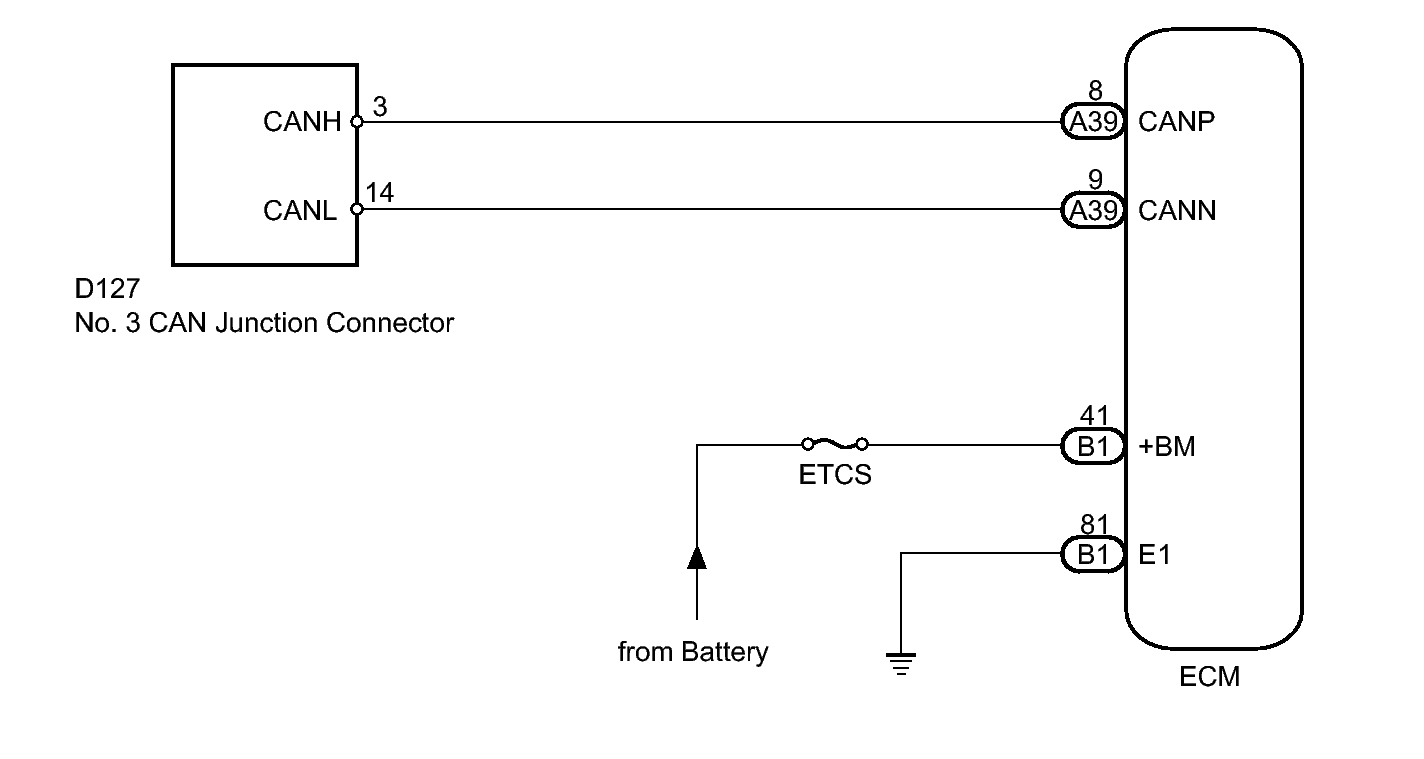

Fig 1: ECM Power Supply Circuit Wiring Diagram

GTY303546

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
