Parts Location: Illustration

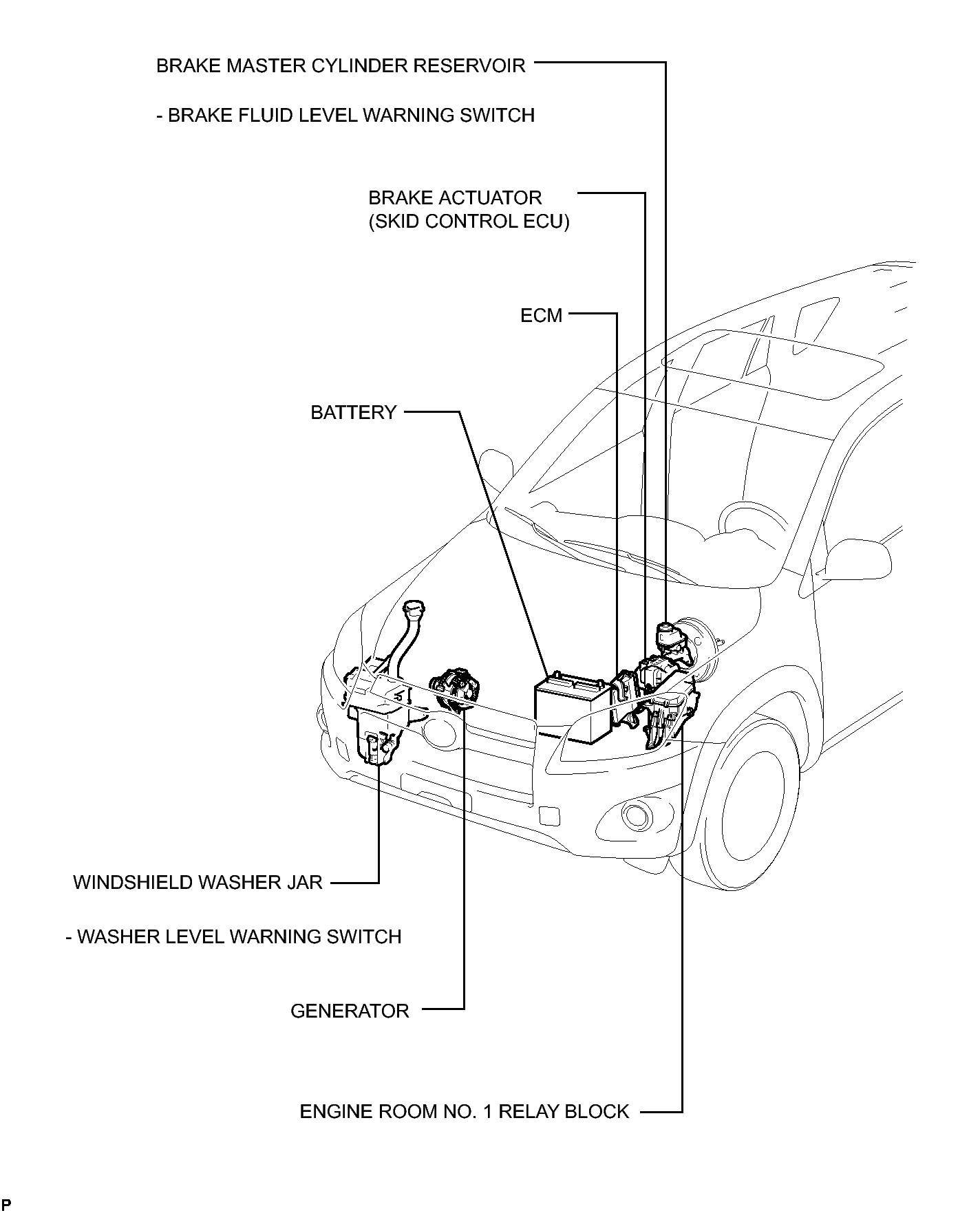

Fig 1: Identifying Meter / Gauge System Components Location (1 Of 7)
GTY226613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

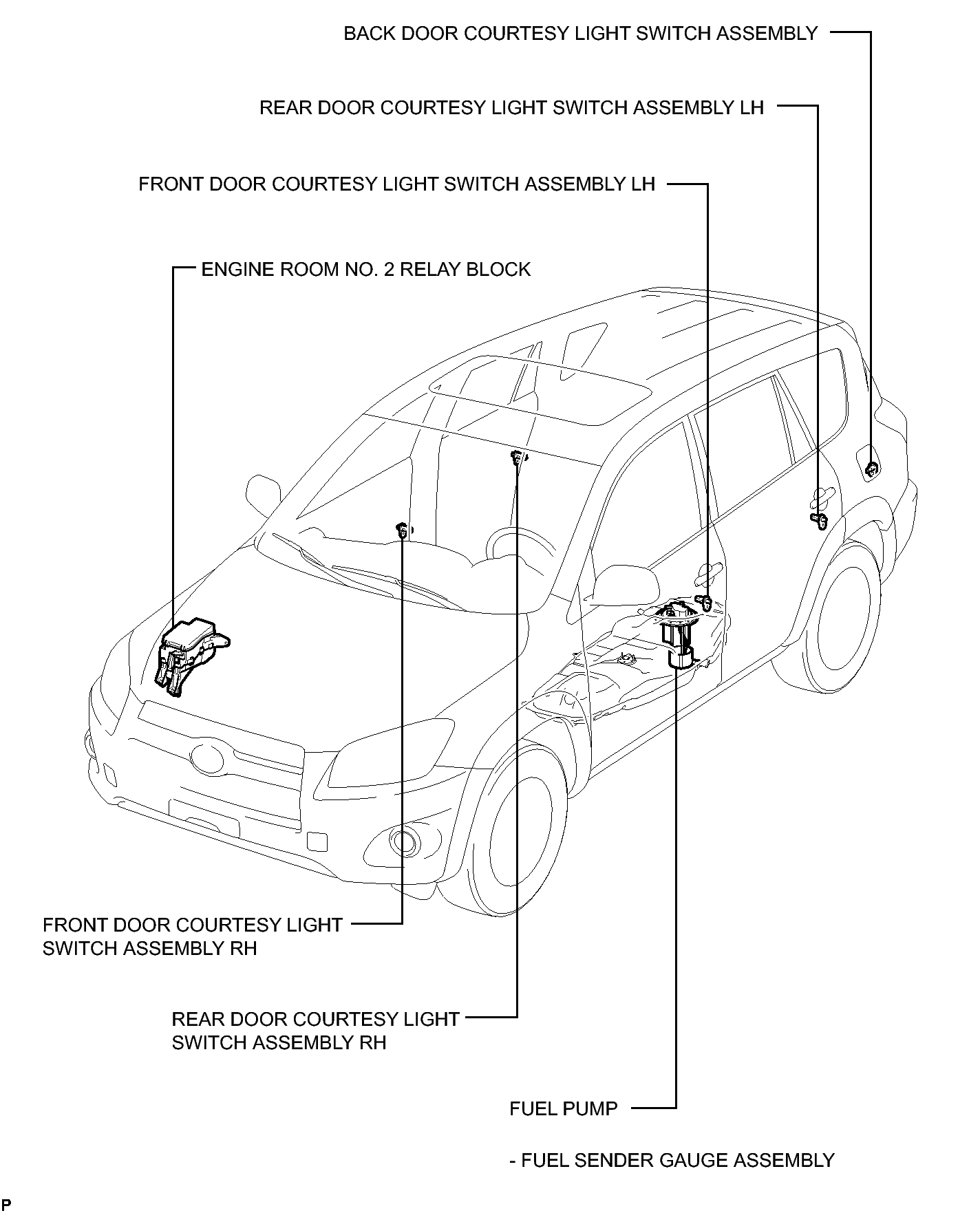

Fig 1: Identifying Meter / Gauge System Components Location (2 Of 7)
GTY247493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

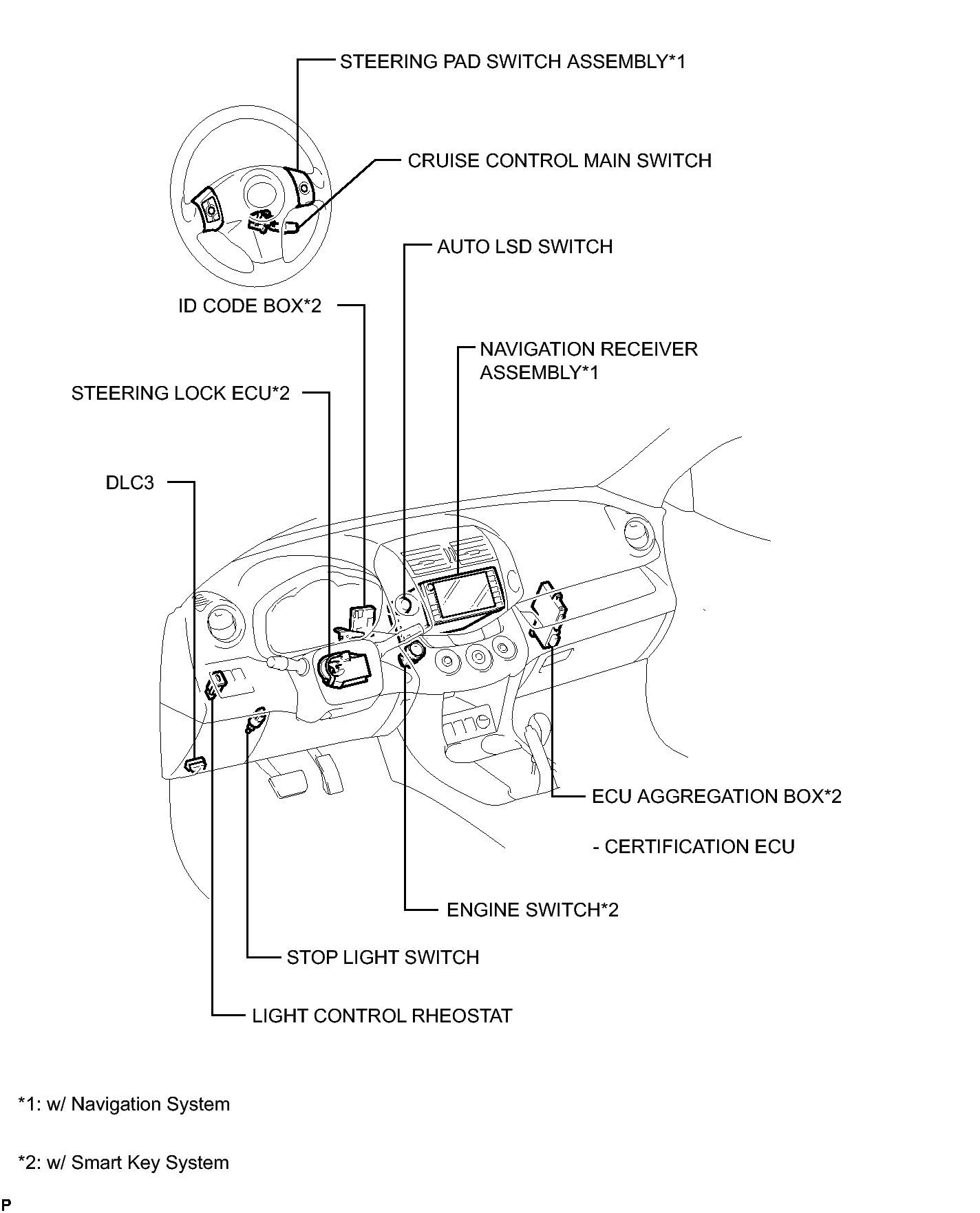

Fig 1: Identifying Meter / Gauge System Components Location (3 Of 7)
GTY216798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

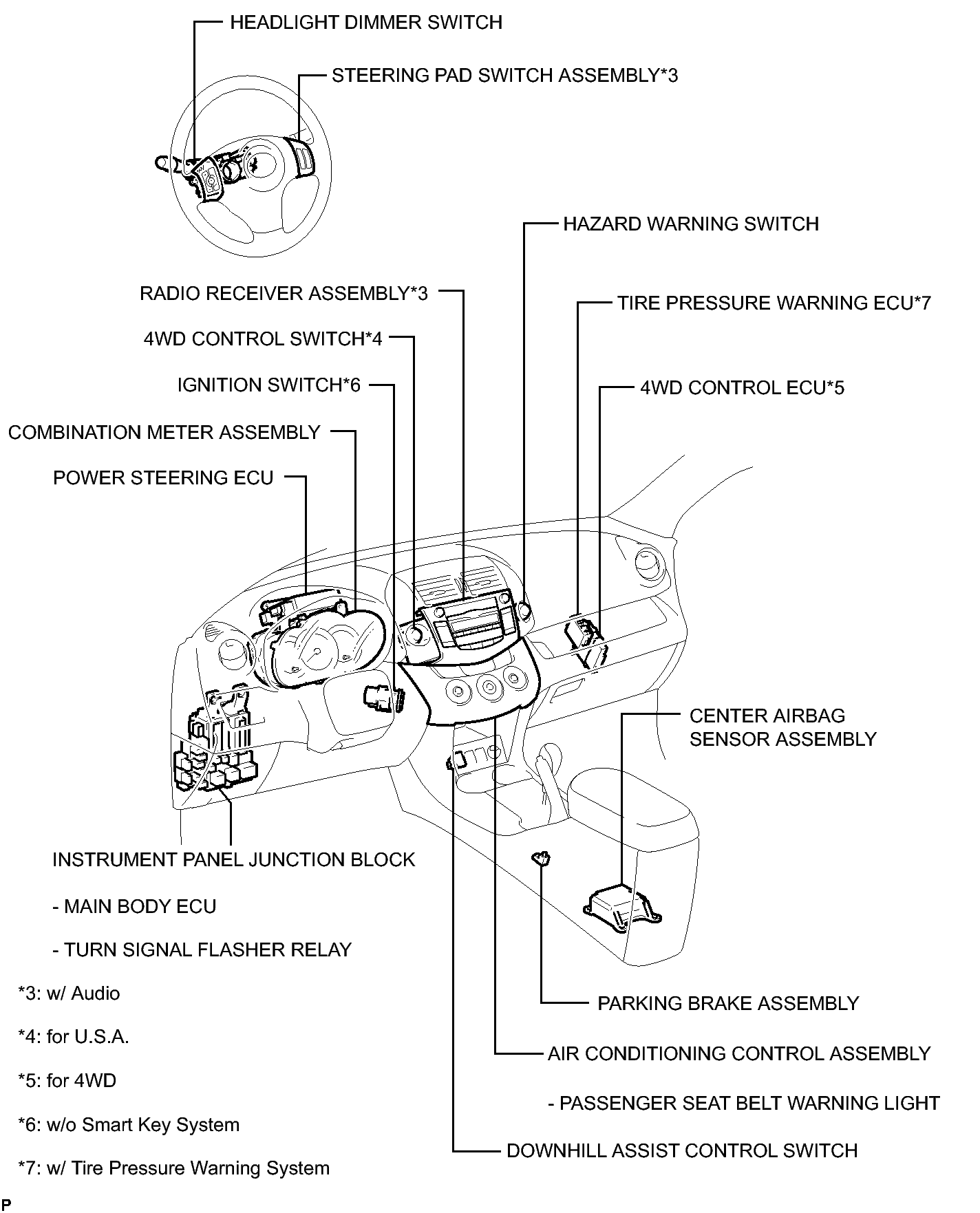

Fig 1: Identifying Meter / Gauge System Components Location (4 Of 7)
GTY221741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

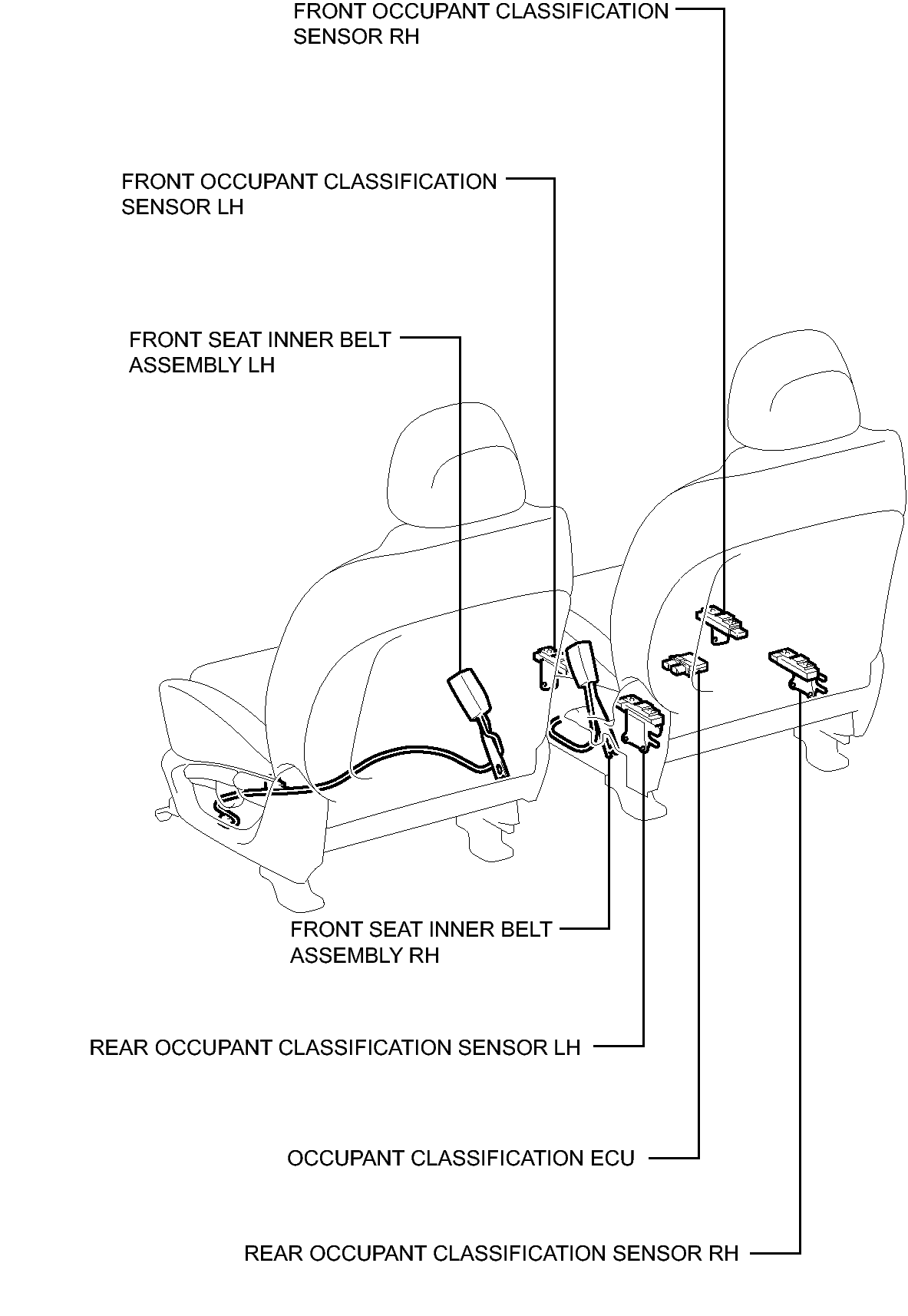

Fig 1: Identifying Meter / Gauge System Components Location (5 Of 7)
GTY225818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


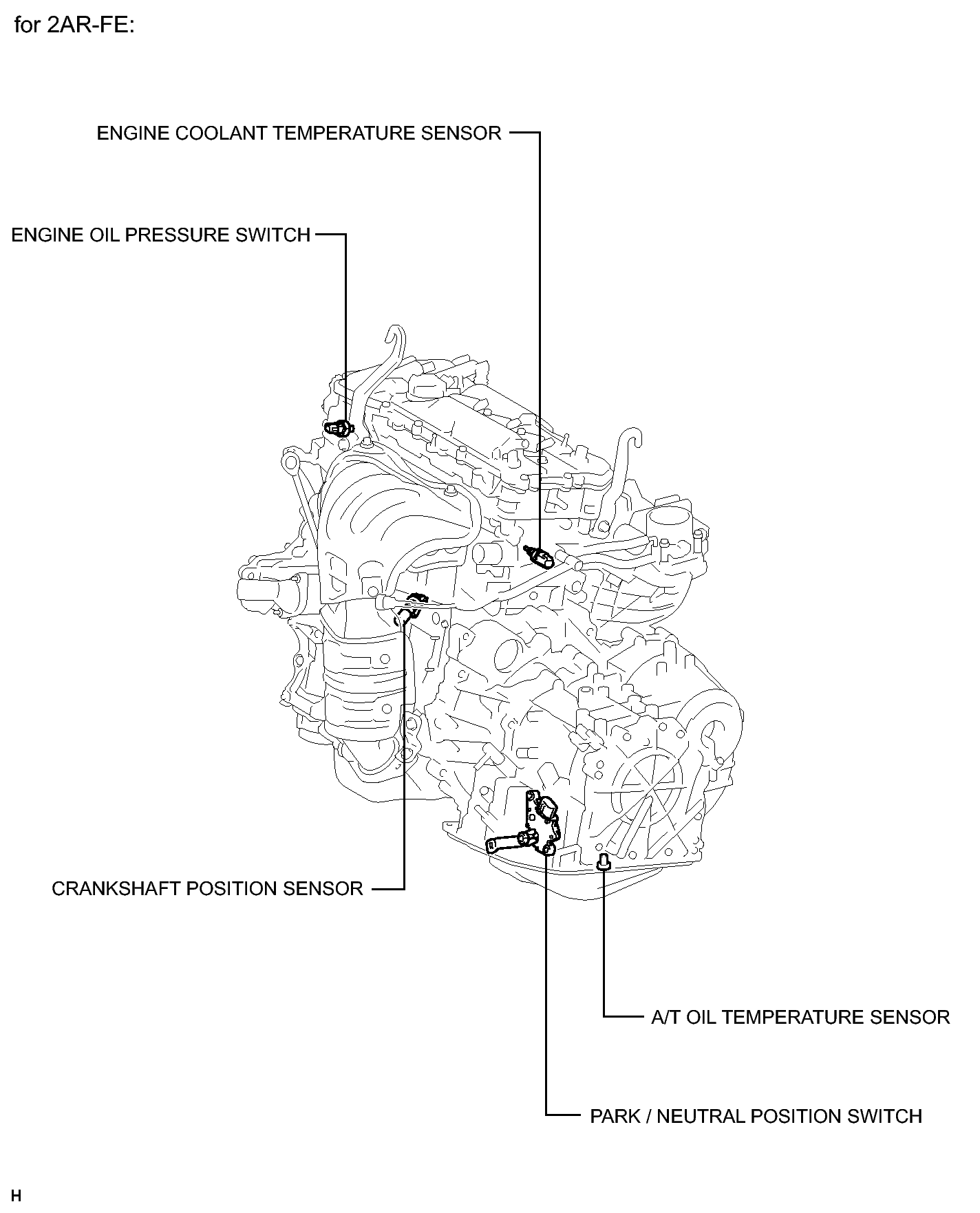

Fig 1: Identifying Meter / Gauge System Components Location (6 Of 7)
GTY232676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

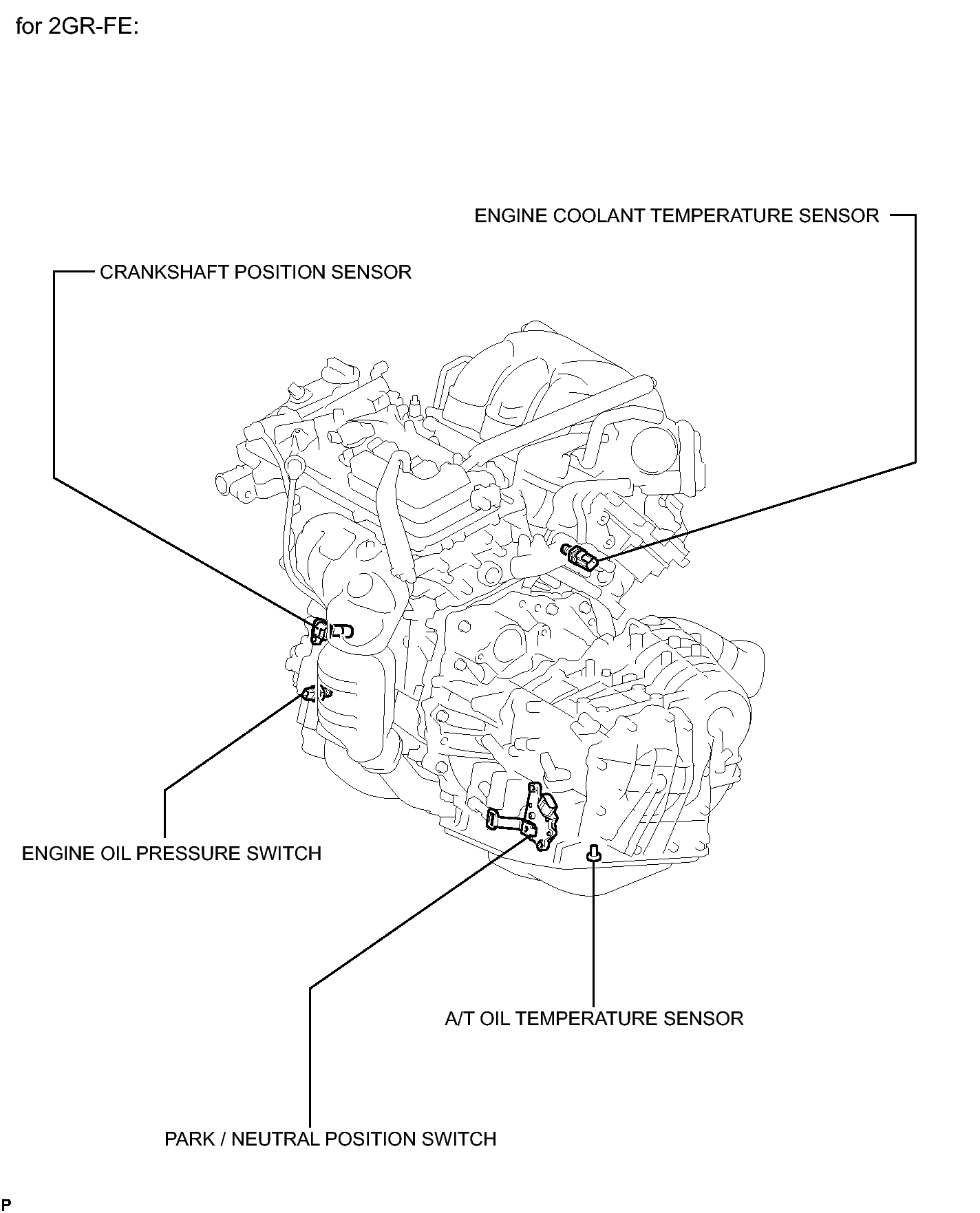

Fig 1: Identifying Meter / Gauge System Components Location (7 Of 7)
GTY246468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
