Operating Light Control Rheostat does not Change Light Brightness
>>
Wiring Diagram
Operating Light Control Rheostat does not Change Light Brightness: Wiring Diagram

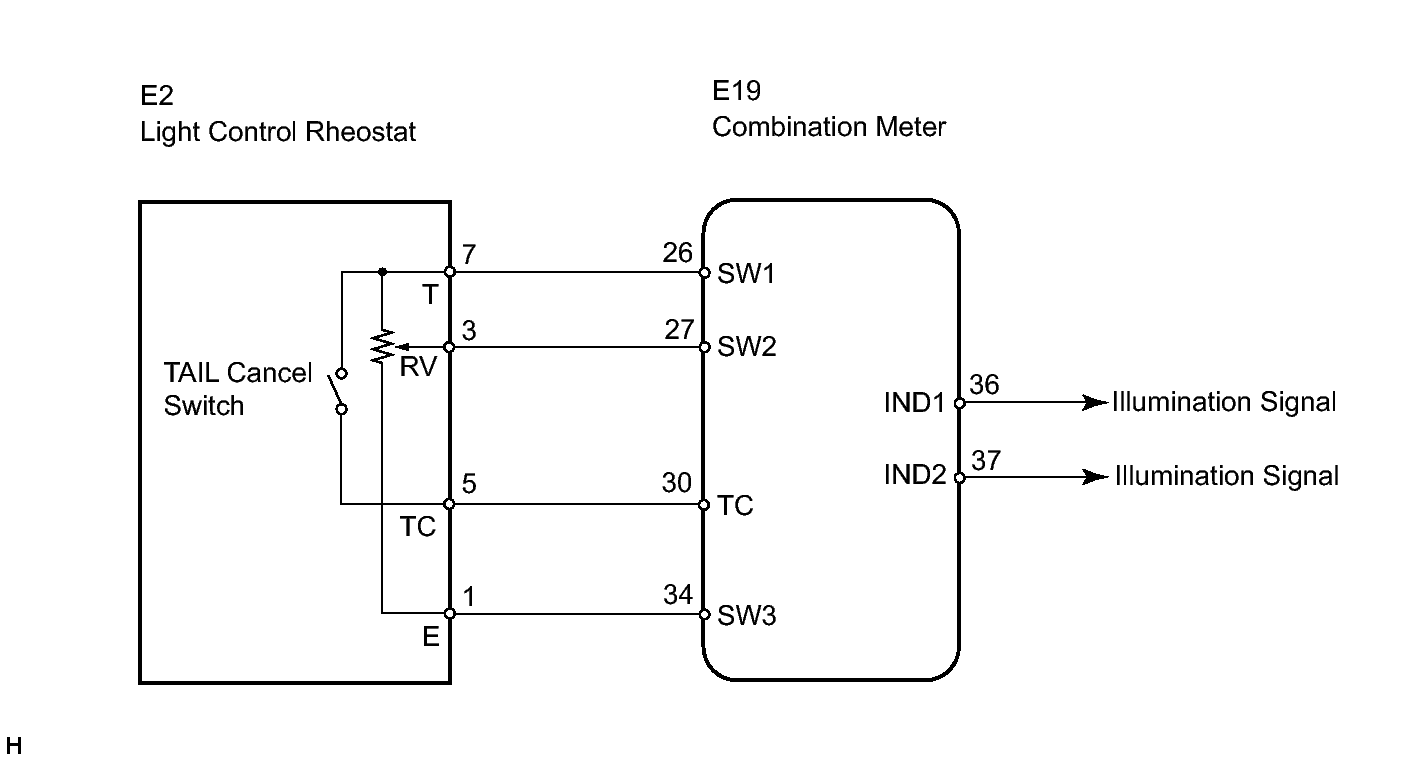

Fig 1: Light Control Rheostat - Combination Meter Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
