Entire Combination Meter does not Operate: Wiring Diagram

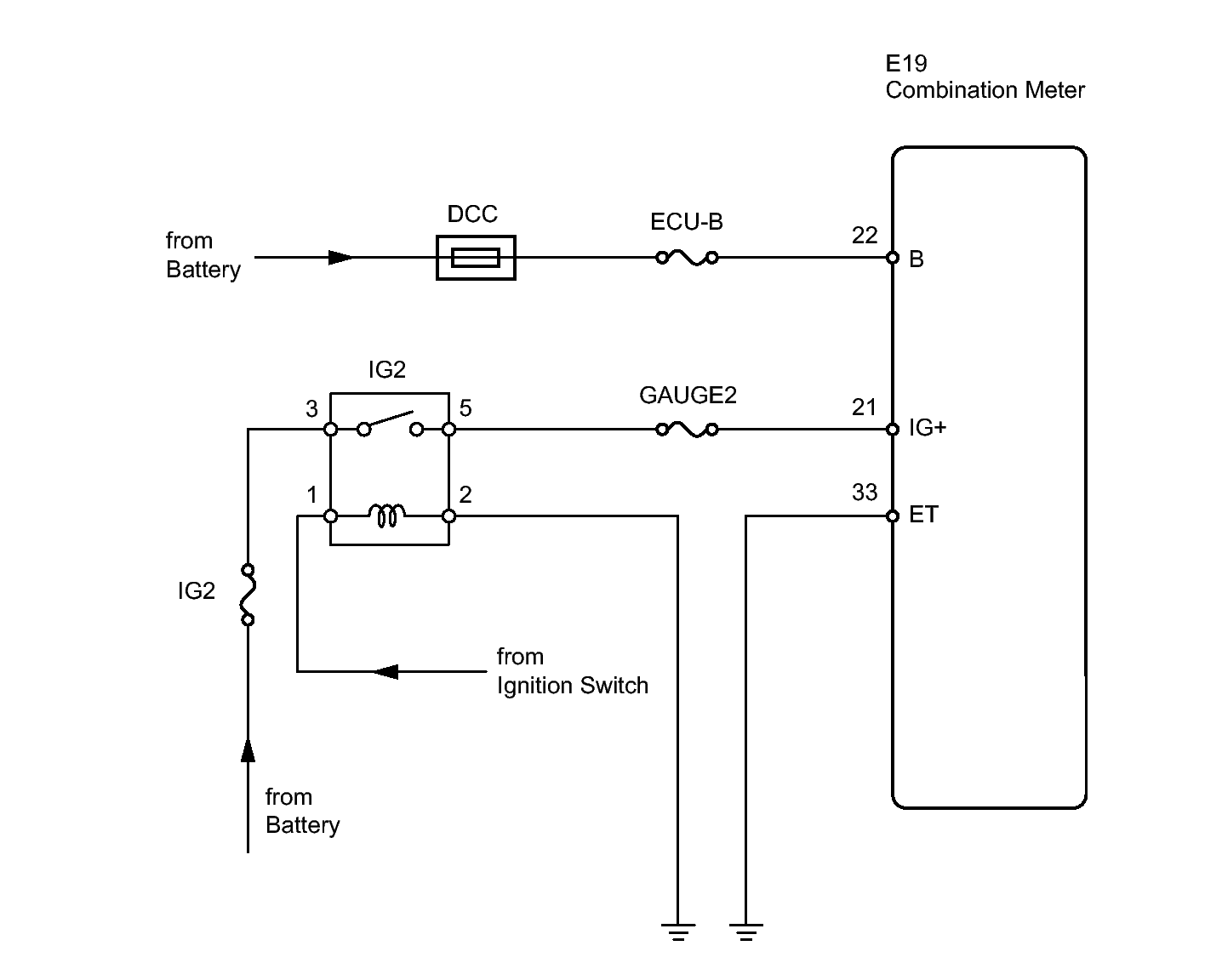

Fig 1: Combination Meter Circuit Wiring Diagram

GTY246264

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
