Upper Instrument Panel: Installation: Installation

  1. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY
    1. Attach the 6 clips and 5 claws to install the instrument panel.

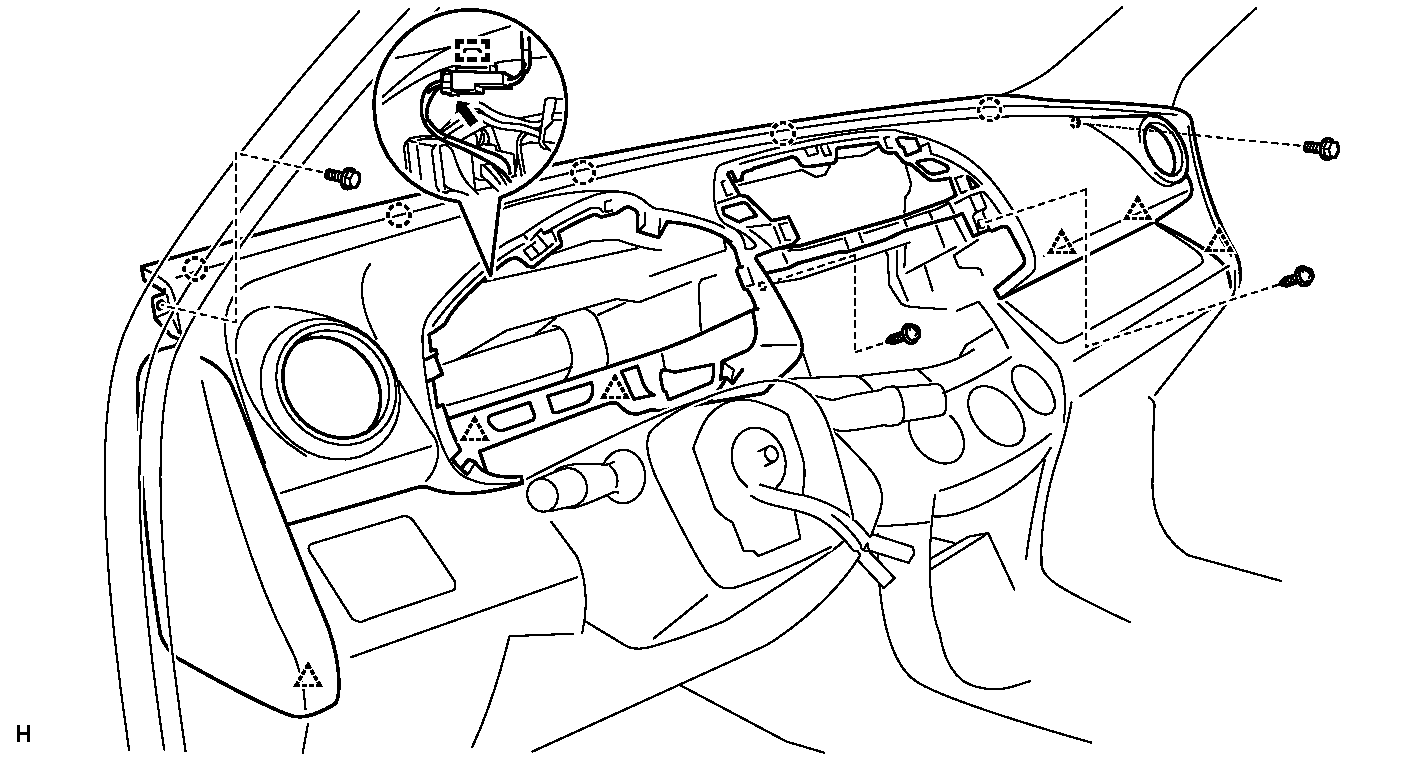

      Fig 1: Identifying Upper Instrument Panel Sub-Assembly Bolts And Screws
      GTY242418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector and attach the clamp.
    3. Install the 2 bolts and 2 screws.
    4. Connect the passenger airbag connector.
    5. Install the 2 bolts to the passenger airbag.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

      Fig 2: Locating Passenger Airbag Bolts
      GTY239744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
    1. Attach the 2 hinges to install the door.
      Fig 3: Installing Glove Compartment Door Assembly
      GTY235639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the claw to the glove compartment door stopper.
      Fig 4: Identifying Glove Compartment Door Stopper
      GTY213573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. While pushing in the sides of the glove compartment door in the direction indicated by the arrows in the illustration, close the door to engage it to the 2 stoppers.
  3. INSTALL FRONT PILLAR GARNISH LH  . Refer to INSTALLATION - Step 60
  4. INSTALL FRONT PILLAR GARNISH RH  . Refer to INSTALLATION - Step 61
  5. INSTALL INSTRUMENT PANEL REGISTER ASSEMBLY CENTER
    1. Attach the 5 clips to install the instrument panel register.
      Fig 5: Locating Instrument Panel Register Assembly Clips
      GTY216607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL NAVIGATION RECEIVER ASSEMBLY WITH BRACKET (w/ Navigation System)
    1. w/ CD Player:

      Install the navigation receiver assembly with bracket. Refer to INSTALLATION - Step 4 .

    2. w/ DVD Player:

      Install the navigation receiver assembly with bracket. Refer to INSTALLATION - Step 4 .

  7. INSTALL RADIO RECEIVER ASSEMBLY WITH BRACKET (w/o Navigation System)  . Refer to INSTALLATION - Step 5
  8. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL CENTER
    1. Connect the connector.
      Fig 6: Installing No. 1 Instrument Cluster Finish Panel Center
      GTY242585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the 3 clips and 2 claws to install the cluster finish panel.
  9. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL CENTER
    1. Connect the connector.
      Fig 7: Installing No. 2 Instrument Cluster Finish Panel Center
      GTY242586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the 3 clips and 2 claws to install the cluster finish panel.
  10. INSTALL COMBINATION METER ASSEMBLY
    1. Connect the connector.
      Fig 8: Installing Combination Meter Assembly
      GTY227793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the 2 clips to install the combination meter.
    3. Install the 2 screws.
  11. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Attach the 4 clips and 6 claws to install the instrument cluster finish panel.
      Fig 9: Locating Instrument Cluster Finish Panel Clips & Claws
      GTY239742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL STEERING WHEEL ASSEMBLY  . Refer to INSTALLATION - Step 12
  13. INSTALL STEERING WHEEL PAD ASSEMBLY  . Refer to INSTALLATION - Step 1
  14. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  15. CHECK SRS WARNING LIGHT
    1. Check the SRS warning light. Refer to DIAGNOSIS SYSTEM .
