Lower Instrument Panel: Removal: Removal

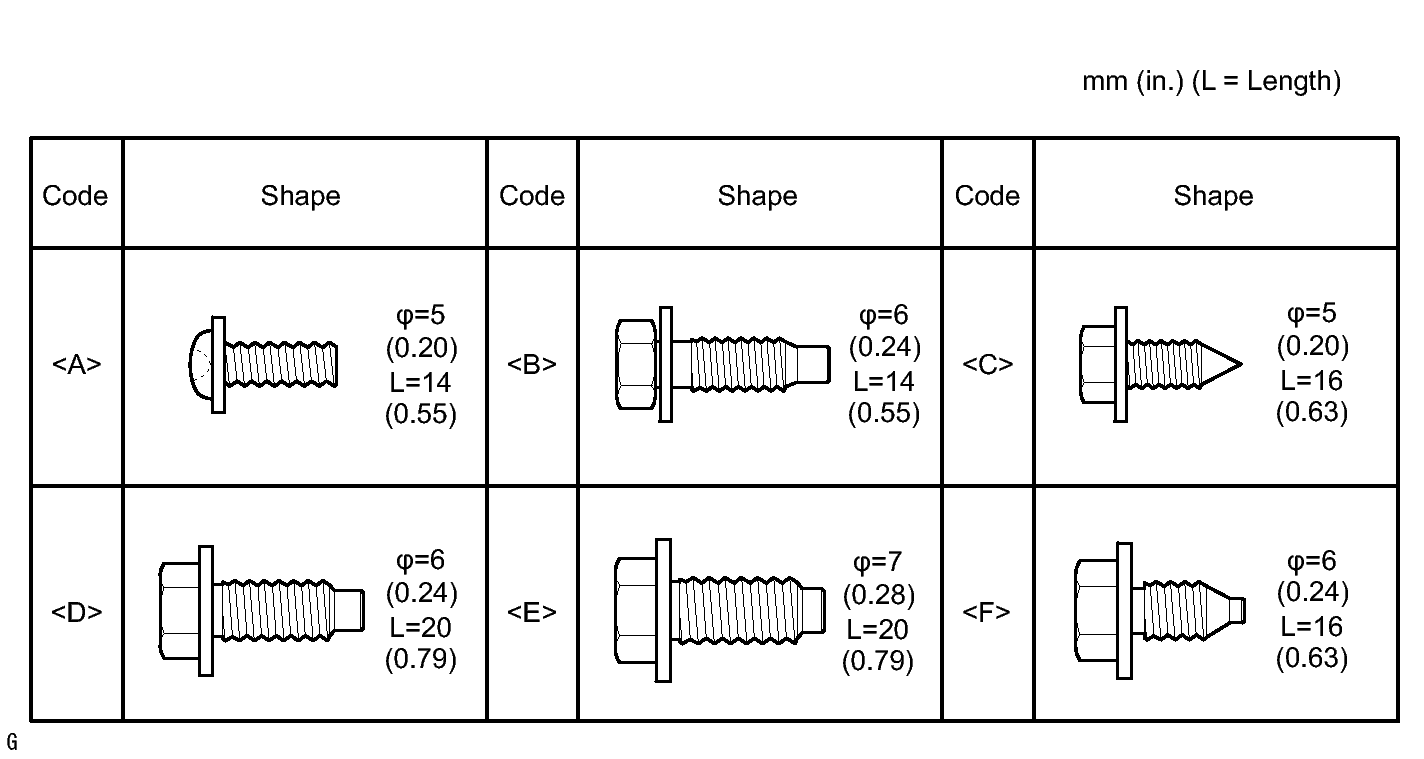

- TABLE OF BOLT, SCREW AND NUT
HINT:
All bolts, screws and nuts relevant to installing and removing the instrument panel are shown along with their alphabet codes in the table below.
- PRECAUTION NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work. Refer to PRECAUTION .
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
- REMOVE UPPER INSTRUMENT PANEL SUB-ASSEMBLY
- Remove the upper instrument panel. Refer to REMOVAL .
- REMOVE STEERING COLUMN COVER . Refer to REMOVAL - Step 5
- REMOVE SPIRAL CABLE SUB-ASSEMBLY . Refer to REMOVAL - Step 6
- REMOVE COMBINATION SWITCH ASSEMBLY . Refer to REMOVAL - Step 7
- REMOVE HEATER CONTROL SUB-ASSEMBLY (for Automatic Air Conditioning System) . Refer to REMOVAL - Step 5
- REMOVE HEATER CONTROL SUB-ASSEMBLY (for Manual Air Conditioning System) . Refer to REMOVAL - Step 5
- REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
- Twist the shift lever knob in the direction indicated by the arrow and remove it.

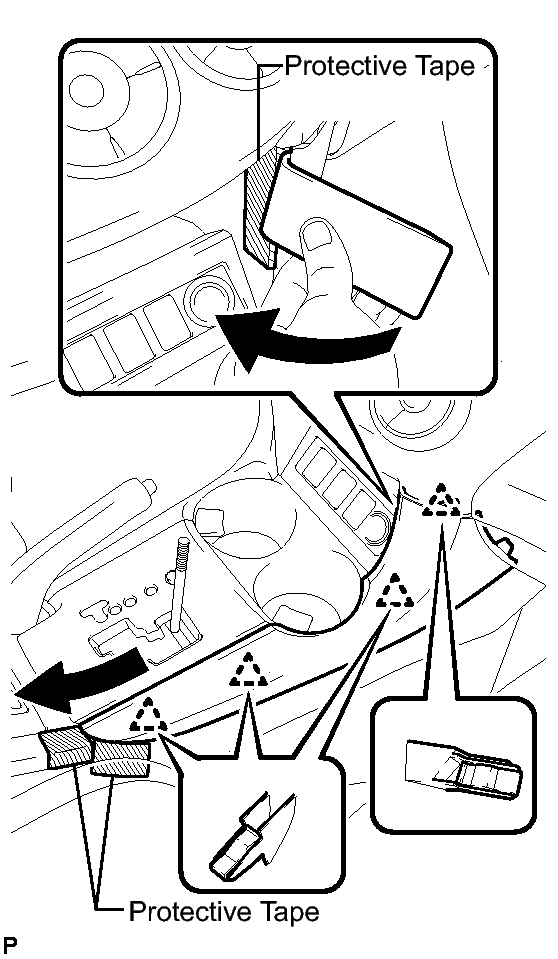

- REMOVE NO. 1 CONSOLE UPPER PANEL GARNISH
- Place protective tape shown as the in illustration.
- Using a moulding remover, detach the 4 clips and upper panel garnish.

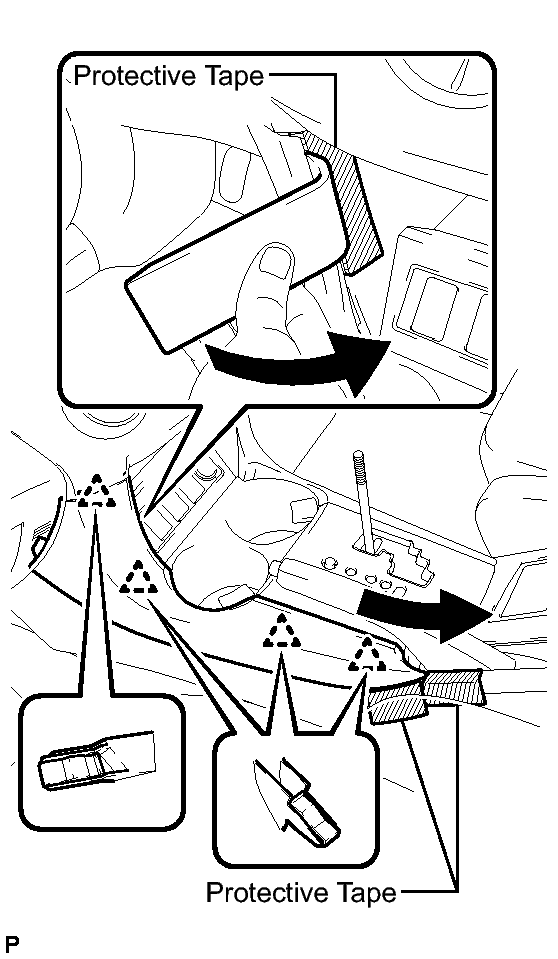

- REMOVE NO. 2 CONSOLE UPPER PANEL GARNISH
- Place protective tape as shown in the illustration.
- Using a moulding remover, detach the 4 clips and remove the upper panel garnish.

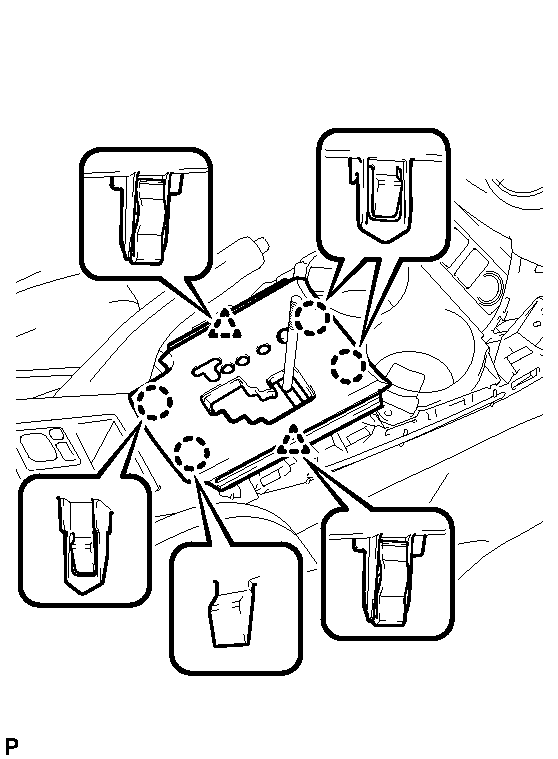

- REMOVE FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY
- Using a screwdriver, detach the 2 clips and 4 claws, and then remove the floor shift position indicator housing.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HINT:
Tape the screwdriver tip before use.

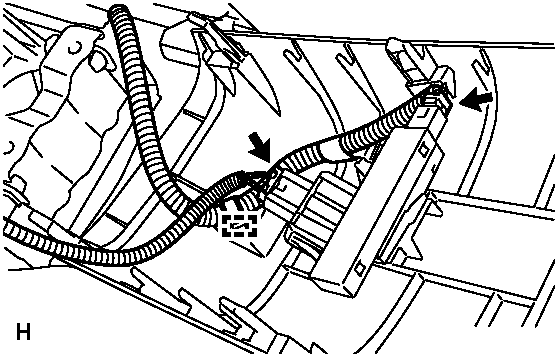

- Disconnect the connector.
- Using a screwdriver, detach the 2 clips and 4 claws, and then remove the floor shift position indicator housing.
- REMOVE SWITCH BASE
- Detach the 2 clips and 2 claws.
- Disconnect the connectors and remove the switch base.
- REMOVE CONSOLE CUP HOLDER BOX
- Remove the 2 screws.
- Detach the 2 clips and remove the cup holder box.
- REMOVE UPPER REAR CONSOLE PANEL SUB-ASSEMBLY
- Using a screwdriver, detach the 4 clips.
HINT:
Tape the screwdriver tip before use.
- Disconnect the connectors and remove the upper rear console panel.
- Using a screwdriver, detach the 4 clips.
- REMOVE CONSOLE REAR END PANEL
- Using a screwdriver, detach the 6 claws and remove the console rear end panel.
HINT:
Tape the screwdriver tip before use.
- for AC Power Supply:
- Using a screwdriver, detach the 4 claws and 2 clips, and then remove the console rear end panel.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HINT:
Tape the screwdriver tip before use.
- Disconnect the connectors and detach the wire harness clamp.
- Using a screwdriver, detach the 4 claws and 2 clips, and then remove the console rear end panel.
- Using a screwdriver, detach the 6 claws and remove the console rear end panel.
- REMOVE NO. 1 INSTRUMENT PANEL BRACKET COVER INNER RH
- Detach the 2 claws and remove the instrument panel bracket cover.
- REMOVE NO. 1 INSTRUMENT PANEL BRACKET COVER INNER LH
- Detach the 2 claws and remove the instrument panel bracket cover.
- REMOVE CONSOLE BOX CARPET
- Remove the console box carpet.

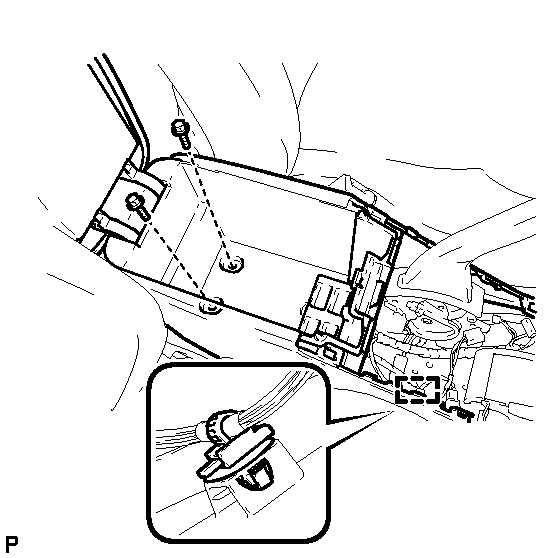

- REMOVE REAR CONSOLE BOX SUB-ASSEMBLY
- Remove the 2 bolts and detach the wire harness clamp.
- Remove the 2 screws and rear console box.
- REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Remove the 2 screws.
- Detach the 2 claws and 2 guides and remove the cover.
- REMOVE LOWER INSTRUMENT PANEL FINISH PANEL
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Remove the 2 screws.
- Using a screwdriver, detach the 8 claws and remove the lower instrument panel finish panel.
HINT:
Tape the screwdriver tip before use.
- REMOVE FRONT DOOR SCUFF PLATE INSIDE LH . Refer to REMOVAL - Step 3
- REMOVE FRONT DOOR SCUFF PLATE INSIDE RH . Refer to REMOVAL - Step 4
- REMOVE COWL SIDE TRIM BOARD LH . Refer to REMOVAL - Step 5
- REMOVE COWL SIDE TRIM BOARD RH . Refer to REMOVAL - Step 6
- REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
- Detach the 3 claws and remove the instrument panel under cover.
- REMOVE NO. 1 SWITCH HOLE BASE
- Using a screwdriver, detach the 4 clips.
HINT:
Tape the screwdriver tip before use.
- Disconnect the connectors and remove the switch hole base.
- Using a screwdriver, detach the 4 clips.
- REMOVE INSTRUMENT PANEL BOX
- Remove the screw.
- Using a screwdriver, detach the 6 clips and remove the instrument panel box.
HINT:
Tape the screwdriver tip before use.
- REMOVE POWER STEERING ECU ASSEMBLY
- Disconnect the connectors.

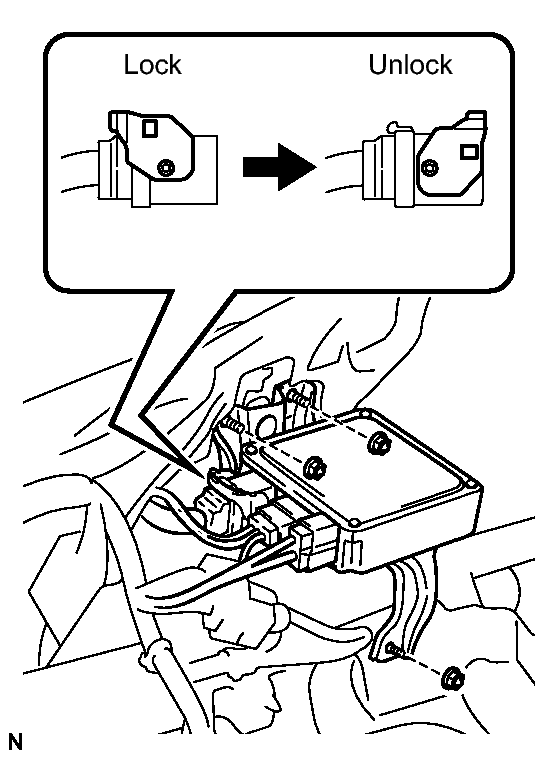

NOTE:
Be sure to release the lock of the connector as shown in the illustration.
- Remove the 3 nuts and ECU.
- Disconnect the connectors.
- REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
- Detach the 3 claws and remove the hood lock control lever.

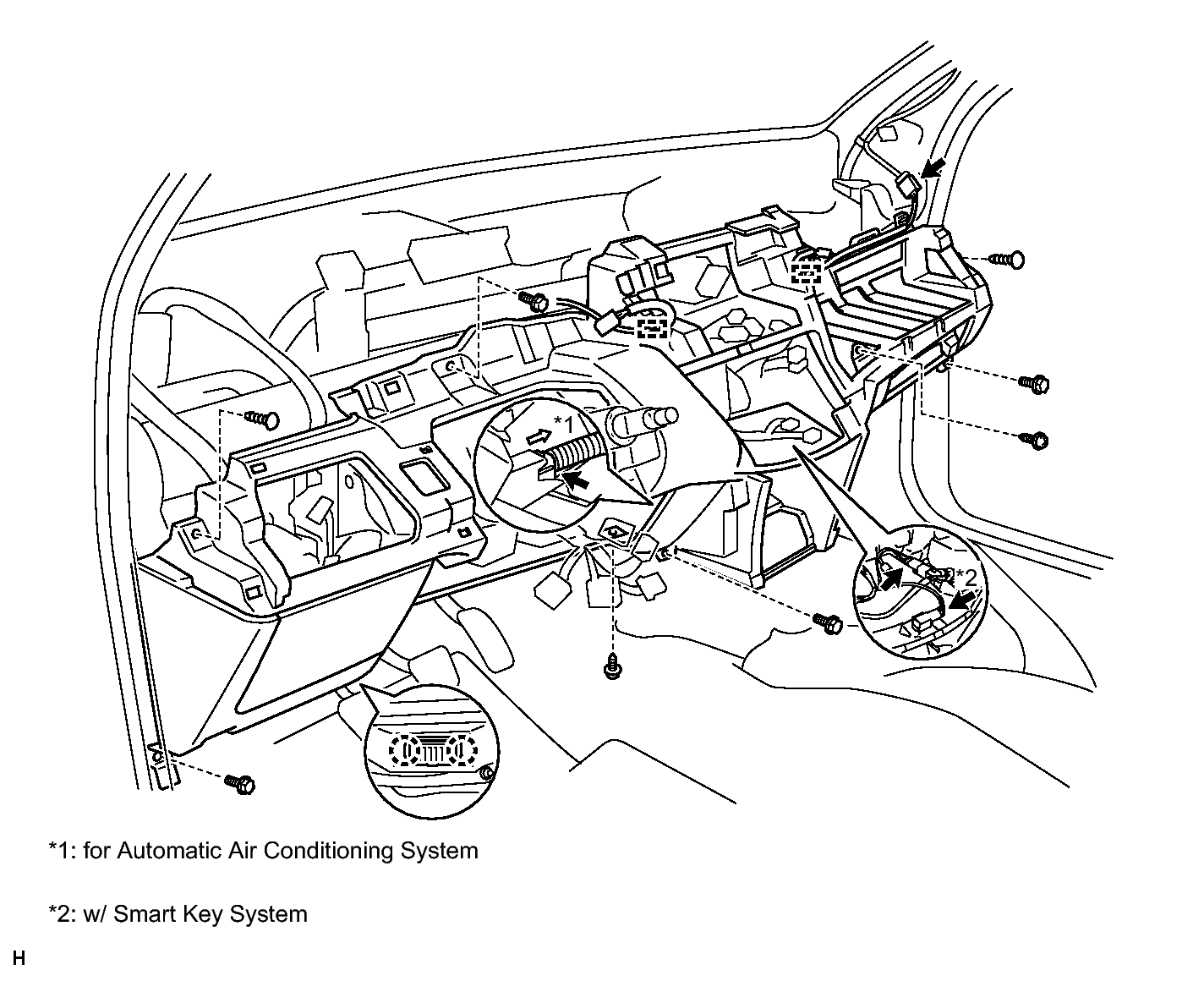

- REMOVE LOWER INSTRUMENT PANEL
- Remove the 4 bolts, 2 screws and 2 clips.
- Detach the claws and remove the DLC3.
- for Automatic Air Conditioning System:
Disconnect the connector and remove the cooler thermistor hose.
- w/ Smart Key System:
Disconnect the connector.
- Disconnect the connectors, detach the clamps and remove the lower instrument panel.
