DTC P324E-788: MG-ECU Power Relay Intermittent Circuit: Wiring Diagram

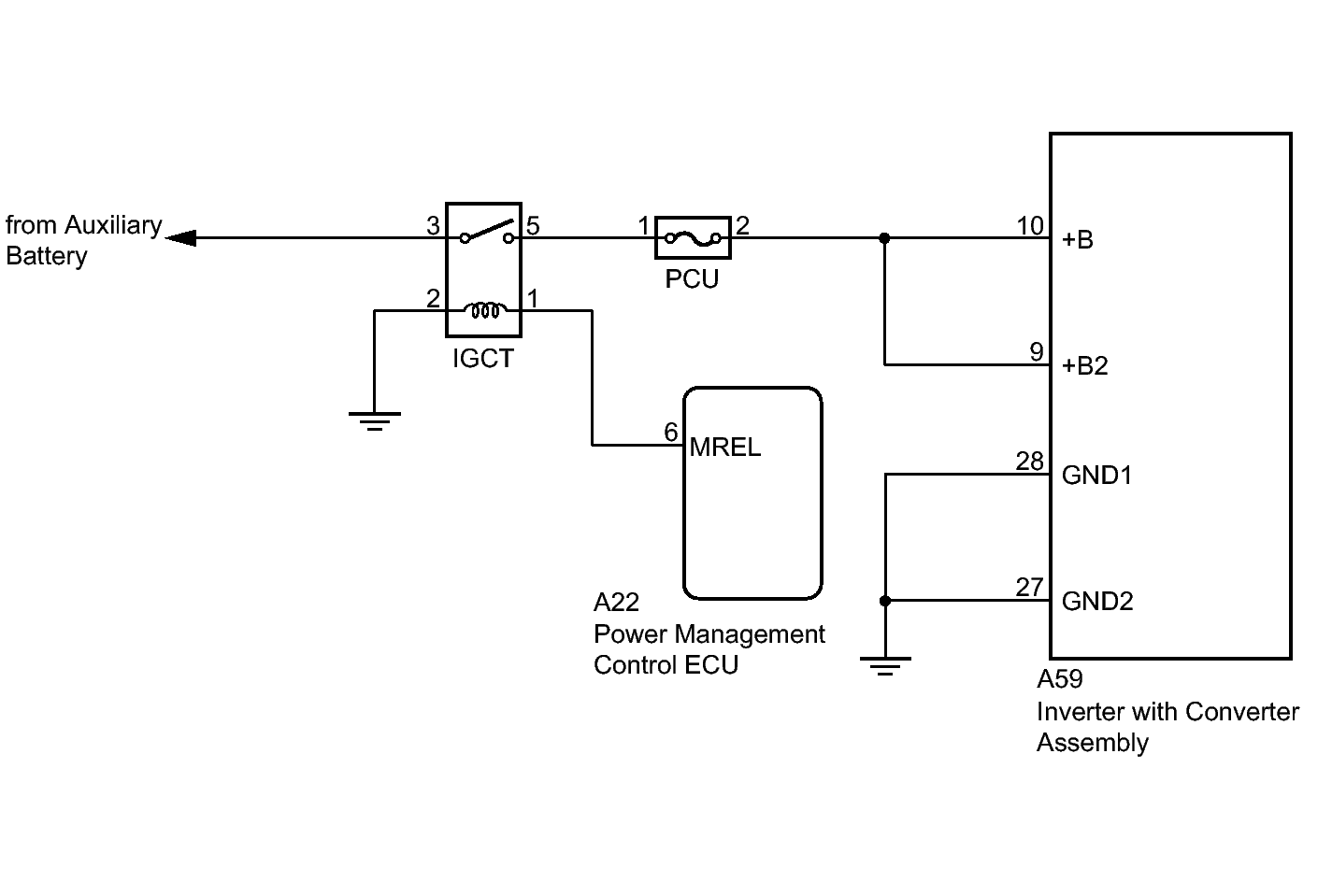

Fig 1: Power Management Control ECU Circuit Wiring Diagram

GTY334220

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
