DTC P3110-223: IGCT Relay Malfunction: Wiring Diagram

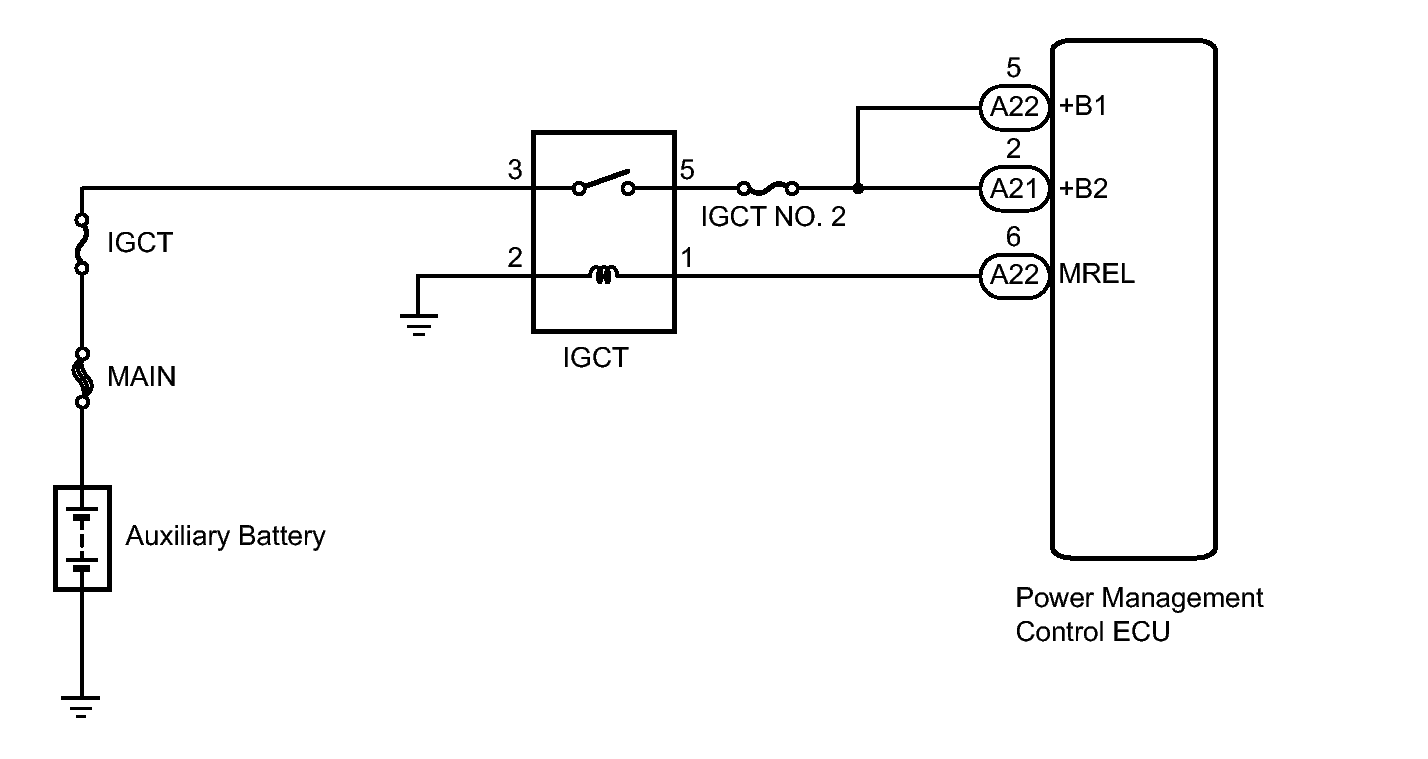

Fig 1: IGCT Relay Circuit Wiring Diagram

GTY334548

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
