DTC P3108-536: Lost Communication with A/C System Control Module: Wiring Diagram

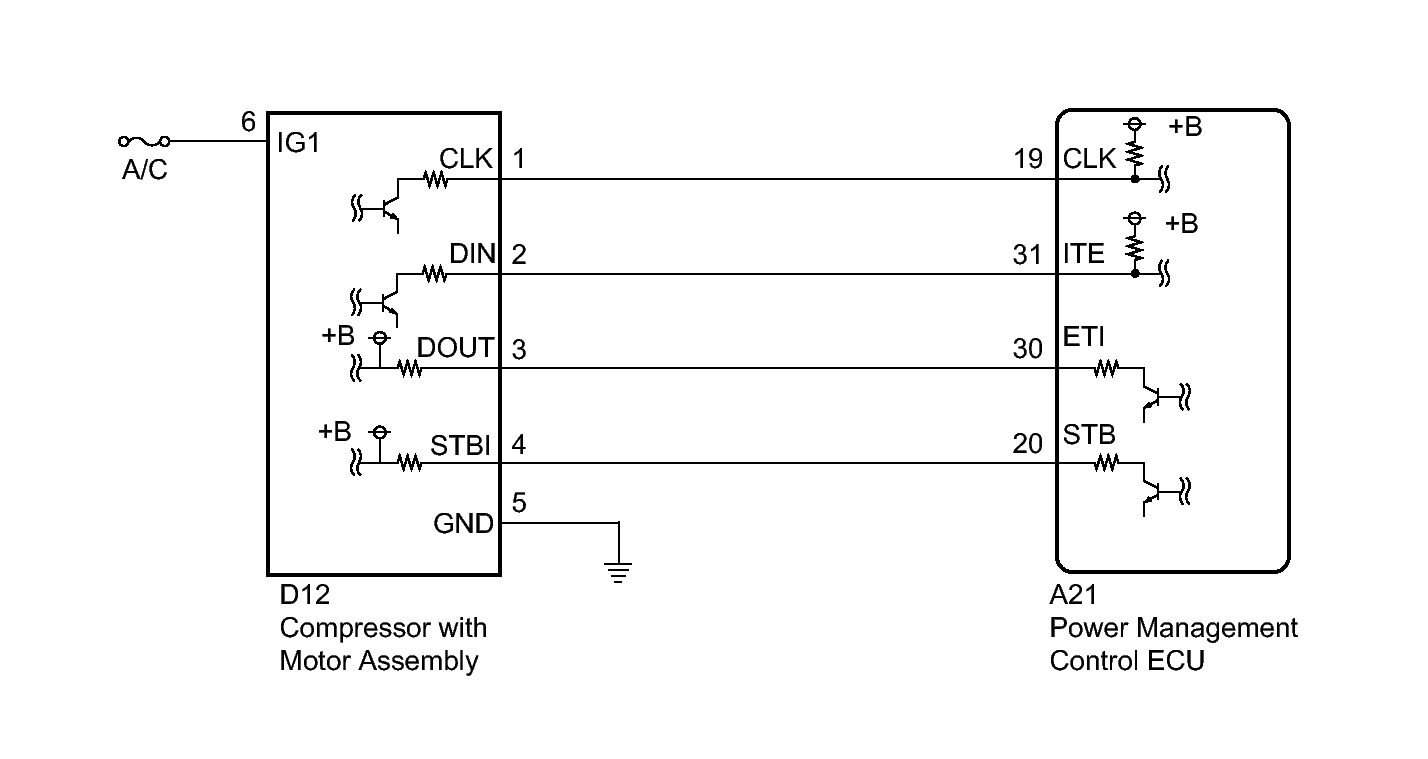

Fig 1: Compressor With Motor Assembly Circuit Wiring Diagram

GTY343768

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
