DTC P0AFC-150: Hybrid Battery Pack Sensor Module: Wiring Diagram

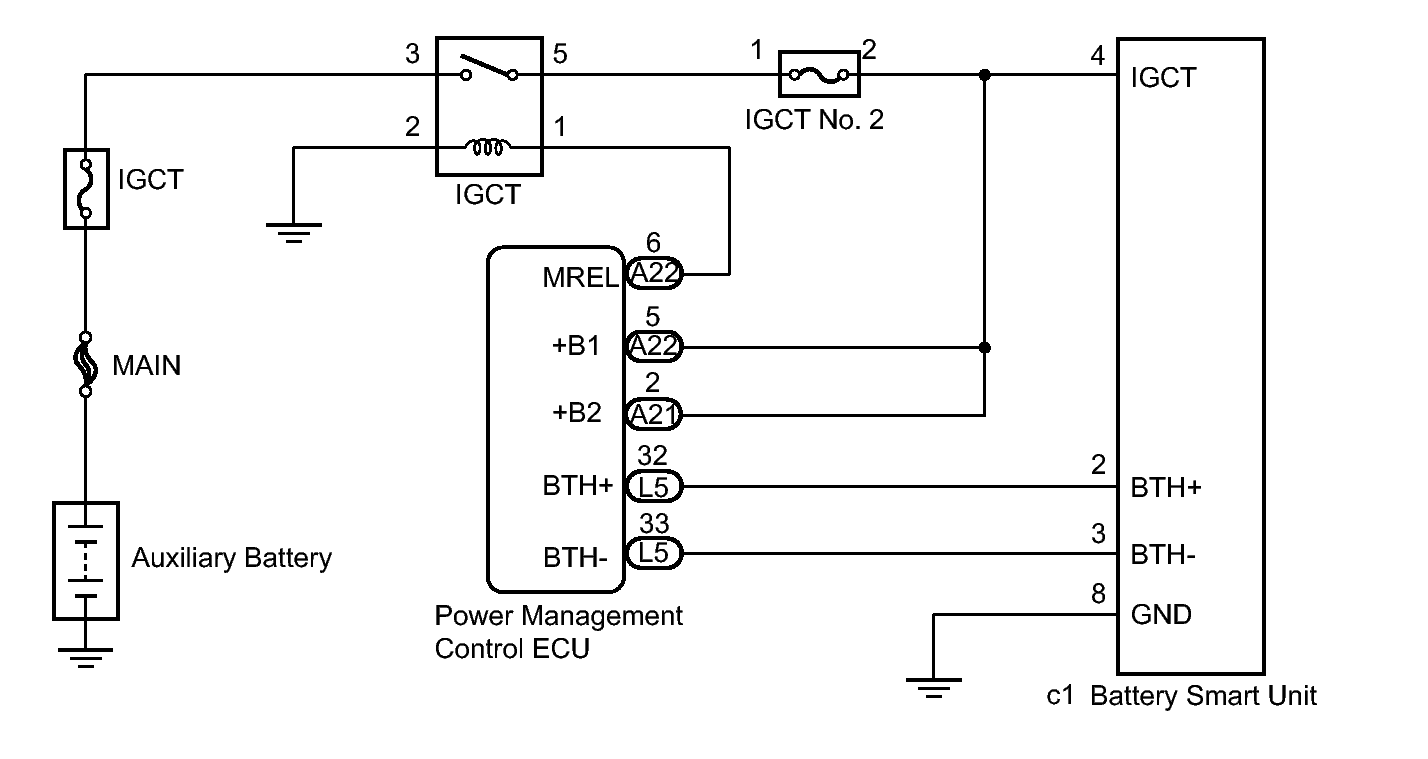

Fig 1: Battery Smart Unit Circuit Wiring Diagram

GTY324330

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
