DTC P0ADC-226: Hybrid Battery Positive Contactor Control Circuit High: Procedure

  1. READ VALUE USING TECHSTREAM (SMRB STATUS)
    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG).
    3. Enter the following menus: Powertrain / Hybrid Control / Data List / SMRB Status.
    4. Read the Data List.

      OK

      Tester Display Switch Condition Specified Condition
      SMRB Status Power switch on (IG) OFF
    5. Turn the power switch off.

    NG → See step   4

    OK: Go to next step

  2. CHECK CONNECTOR CONNECTION CONDITION (POWER MANAGEMENT CONTROL ECU CONNECTOR)
    1. Check the connector connections and contact pressure of the relevant terminals for the power management control ECU connectors. Refer to ELECTRONIC CIRCUIT INSPECTION PROCEDURE .
      Fig 1: Checking Connector Connection Condition (Power Management Control ECU)
      GTY333075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK

      The connectors are connected securely and there are no contact pressure problems.

    NG → CONNECT SECURELY

    OK: Go to next step

  3. CHECK CONNECTOR CONNECTION CONDITION (HYBRID BATTERY JUNCTION BLOCK ASSEMBLY CONNECTOR)
    WARNING:

    Be sure to wear insulated gloves.

    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair information because this may cause a malfunction.

    2. Remove the upper hybrid battery cover sub-assembly. Refer to REMOVAL - Step 19 .
    3. Check the connector connections and contact pressure of the relevant terminals for the hybrid battery junction block assembly connector. Refer to ELECTRONIC CIRCUIT INSPECTION PROCEDURE .

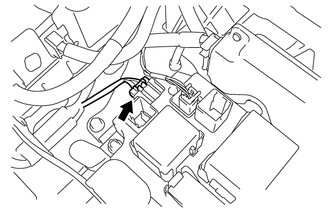

      Fig 2: Checking Connector Connection Condition (Hybrid Battery Junction Block Connector)
      GTY291159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK

      The connector is connected securely and there are no contact pressure problems.

    4. Install the upper hybrid battery cover sub-assembly.

    NG → CONNECT SECURELY

    OK → See step   11

  4. CHECK HARNESS AND CONNECTOR (SMRB VOLTAGE)
    1. Turn the power switch on (IG).
    2. Measure the voltage according to the value(s) in the table below.
      Fig 3: Checking Harness And Connector (SMRB Voltage)
      GTY327319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      L5-4 (SMRB) - Body ground Power switch on (IG) Below 1 V
      TEXT IN ILLUSTRATION

      *a Component with harness connected
      (Power Management Control ECU)
    3. Turn the power switch off.

    NG → See step   6

    OK: Go to next step

  5. CHECK CONNECTOR CONNECTION CONDITION (POWER MANAGEMENT CONTROL ECU CONNECTOR)
    1. Check the connector connections and contact pressure of the relevant terminals for the power management control ECU connectors. Refer to ELECTRONIC CIRCUIT INSPECTION PROCEDURE .
      Fig 4: Checking Connector Connection Condition (Power Management Control ECU)
      GTY333075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK

      The connectors are connected securely and there are no contact pressure problems.

    NG → CONNECT SECURELY

    OK → See step   12

  6. CHECK HARNESS AND CONNECTOR (POWER MANAGEMENT CONTROL ECU - BODY GROUND)
    1. Disconnect connector L5 from the power management control ECU.
    2. Measure the resistance according to the value(s) in the table below.
      Fig 5: Checking Harness And Connector (Power Management Control ECU - Body Ground)
      GTY336384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      L5-4 (SMRB) - Body ground Power switch off 19.0 to 35.5 Ω
      TEXT IN ILLUSTRATION

      *a Rear view of wire harness connector
      (to Power Management Control ECU)
    3. Connect the power management control ECU connector.

    NG → See step   8

    OK: Go to next step

  7. CHECK HARNESS AND CONNECTOR (SHORT TO POWER SUPPLY WIRES)
    WARNING:

    Be sure to wear insulated gloves.

    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair information because this may cause a malfunction.

    2. Remove the IGCT NO. 2 and AM2 fuses from the engine room relay block and junction block assembly.
      Fig 6: Identifying Engine Room Relay Block And Junction Block Assembly, IGCT No. 2 Fuse & AM2 Fuse
      GTY339526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Engine Room Relay Block and Junction Block Assembly
      *2 AM2 fuse
      *3 IGCT NO. 2 fuse
    3. Remove the upper hybrid battery cover sub-assembly. Refer to REMOVAL - Step 19 .
    4. Disconnect connector c3 from the hybrid battery junction block assembly.
    5. Disconnect all the connectors from the power management control ECU.
    6. Measure the resistance according to the value(s) in the table below.
      Fig 7: Checking Resistance Of Power Management Control ECU
      GTY343936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      L5-4 (SMRB) - A21-2 (+B2) Power switch off 10 kΩ or higher
      L5-4 (SMRB) - A22-5 (+B1) Power switch off 10 kΩ or higher
      L5-4 (SMRB) - L5-1 (AM22) Power switch off 10 kΩ or higher
      L5-4 (SMRB) - L6-7 (AM21) Power switch off 10 kΩ or higher
      L5-4 (SMRB) - A22-6 (MREL) Power switch off 10 kΩ or higher
      L5-4 (SMRB) - A22-1 (IG2) Power switch off 10 kΩ or higher
      L5-4 (SMRB) - L6-1 (ACCD) Power switch off 10 kΩ or higher
      L5-4 (SMRB) - L6-2 (IG1D) Power switch off 10 kΩ or higher
      L5-4 (SMRB) - A22-2 (IG2D) Power switch off 10 kΩ or higher
      L5-4 (SMRB) - L5-14 (SPDI) Power switch off 10 kΩ or higher
      L5-4 (SMRB) - A21-16 (GI) Power switch off 10 kΩ or higher
      L5-4 (SMRB) - A21-4 (FCTL) Power switch off 10 kΩ or higher
      TEXT IN ILLUSTRATION

      *a Rear view of wire harness connector
      (to Power Management Control ECU)
    7. Connect the power management control ECU connectors.
    8. Connect the hybrid battery junction block assembly connector.
    9. Install the upper hybrid battery cover sub-assembly.
    10. Install the IGCT NO. 2 and AM2 fuses.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   12

  8. CHECK HARNESS AND CONNECTOR (POWER MANAGEMENT CONTROL ECU - HYBRID BATTERY JUNCTION BLOCK)
    WARNING:

    Be sure to wear insulated gloves.

    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair information because this may cause a malfunction.

    2. Remove the upper hybrid battery cover sub-assembly. Refer to REMOVAL - Step 19 .
    3. Disconnect connector c3 from the hybrid battery junction block assembly.
    4. Disconnect connector L5 from the power management control ECU.
    5. Measure the resistance according to the value(s) in the table below.
      Fig 8: Checking Harness And Connector (Power Management Control ECU - Hybrid Battery Junction Block)
      GTY324435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance (Check for Open)

      Tester Connection Switch Condition Specified Condition
      L5-4 (SMRB) - c3-4 (SMRB) Power switch off Below 1 Ω

      Standard Resistance (Check for Short)

      Tester Connection Switch Condition Specified Condition
      L5-4 (SMRB) and c3-4 (SMRB) - Body ground and other terminals Power switch off 10 kΩ or higher
      TEXT IN ILLUSTRATION

      *a Rear view of wire harness connector
      (to Power Management Control ECU)
      *b Rear view of wire harness connector
      (to Hybrid Battery Junction Block Assembly)
    6. Connect the power management control ECU connector.
    7. Connect the hybrid battery junction block assembly connector.
    8. Install the upper hybrid battery cover sub-assembly.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  9. CHECK HARNESS AND CONNECTOR (HYBRID BATTERY JUNCTION BLOCK ASSEMBLY- BODY GROUND)
    WARNING:

    Be sure to wear insulated gloves.

    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair information because this may cause a malfunction.

    2. Remove the upper hybrid battery cover sub-assembly. Refer to REMOVAL - Step 19 .
    3. Disconnect connector c3 from the hybrid battery junction block assembly.
    4. Measure the resistance according to the value(s) in the table below.
      Fig 9: Checking Harness And Connector (Hybrid Battery Junction Block Assembly- Body Ground)
      GTY334523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      c3-2 (GND) - Body ground Power switch off Below 1 Ω
      TEXT IN ILLUSTRATION

      *a Rear view of wire harness connector
      (to Hybrid Battery Junction Block Assembly)
    5. Connect the hybrid battery junction block assembly connector.
    6. Install the upper hybrid battery cover sub-assembly.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  10. INSPECT HYBRID BATTERY JUNCTION BLOCK ASSEMBLY
    WARNING:

    Be sure to wear insulated gloves.

    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair information because this may cause a malfunction.

    2. Remove the hybrid battery junction block assembly. Refer to COMPONENTS .
    3. Measure the resistance according to the value(s) in the table below.
      Fig 10: Inspecting Hybrid Battery Junction Block Assembly With C3 Connector End View
      GTY324005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Condition Specified Condition
      c3-4 (SMRB) - c3-2 (GND) -40 to 80 °C (-40 to 176°F) 19.0 to 35.5 Ω
      TEXT IN ILLUSTRATION

      *1 Hybrid Battery Junction Block Assembly
    4. Install the hybrid battery junction block assembly.

    NG → See step   13

    OK → See step   11

  11. CHECK FOR INTERMITTENT PROBLEMS. Refer to  CHECK FOR INTERMITTENT PROBLEMS
  12. REPLACE POWER MANAGEMENT CONTROL ECU. Refer to  COMPONENTS
  13. REPLACE HYBRID BATTERY JUNCTION BLOCK ASSEMBLY. Refer to  COMPONENTS
