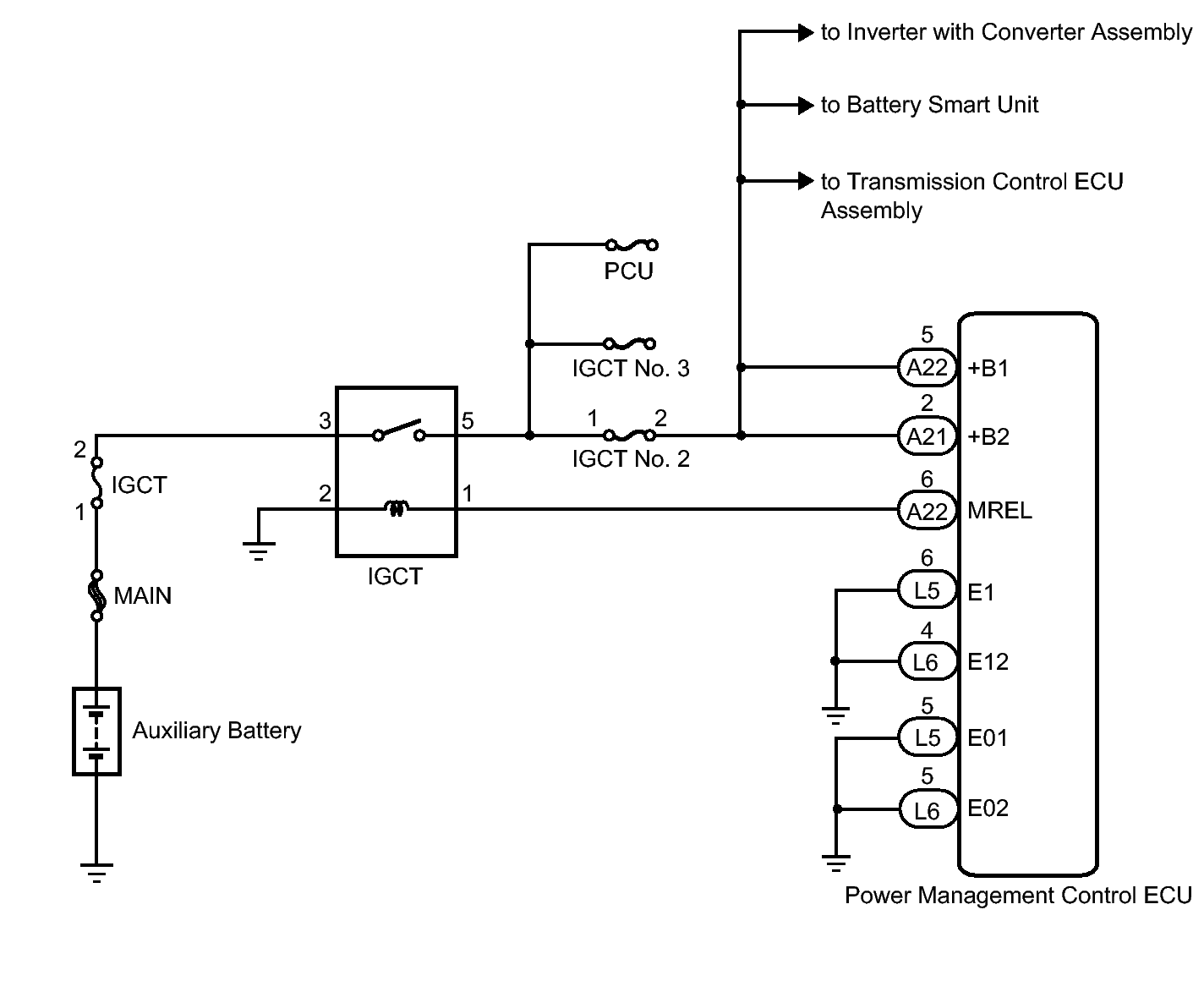

Home >> Toyota >> 2012 >> Prius V >> Repair and Diagnosis >> Hybrid/Electric Powertrain >> Testing and Diagnosis >> Hybrid Control System [Diagnostic Codes (P0AA4-232 - U0424-537) & Circuit Tests] >> Hybrid Control System >> Circuit Tests >> ECU Power Source Circuit >> Wiring Diagram
