DTC P0A0F-238: Engine Failed to Start: Description

If the power management control ECU (HV CPU) detects that the engine or transaxle gear has seized, the power management control ECU (HV CPU) will perform fail-safe control. Also, if a substance or object is preventing the engine or transaxle internal components from rotating, the power management control ECU (HV CPU) will perform fail-safe control.

DTC No. INF Code DTC Detection Condition Trouble Area
P0A0F 238 Engine does not start even though it is being cranked (transaxle input malfunction [engine system])
  • Hybrid vehicle transaxle assembly
  • Transmission input damper assembly
  • Power management control ECU
  • Engine

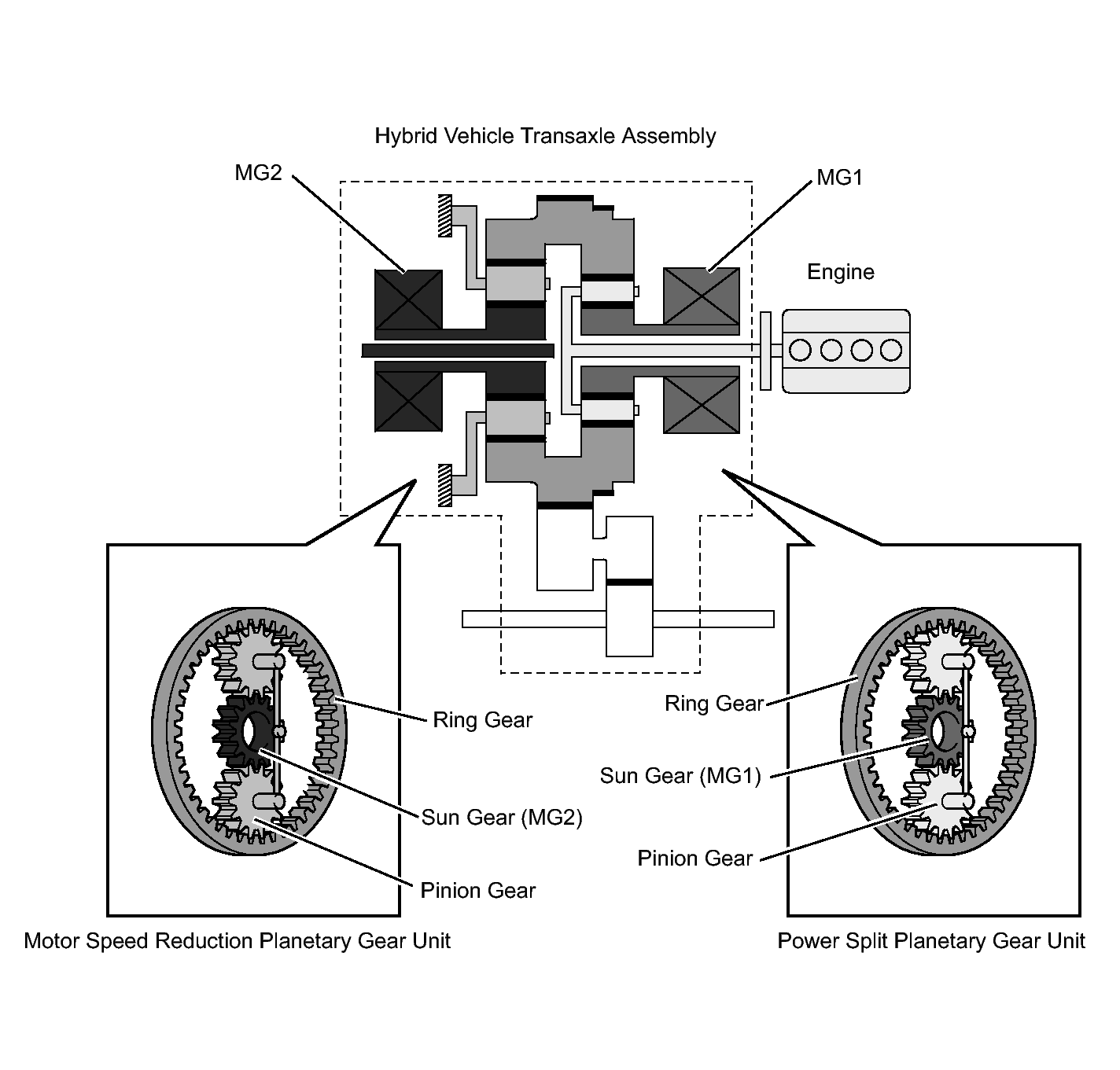

Fig 1: Hybrid Vehicle Transaxle Assembly Diagram
GTY230615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
