DTC P0A09-591: DC / DC Converter Status Circuit Low Input: Wiring Diagram

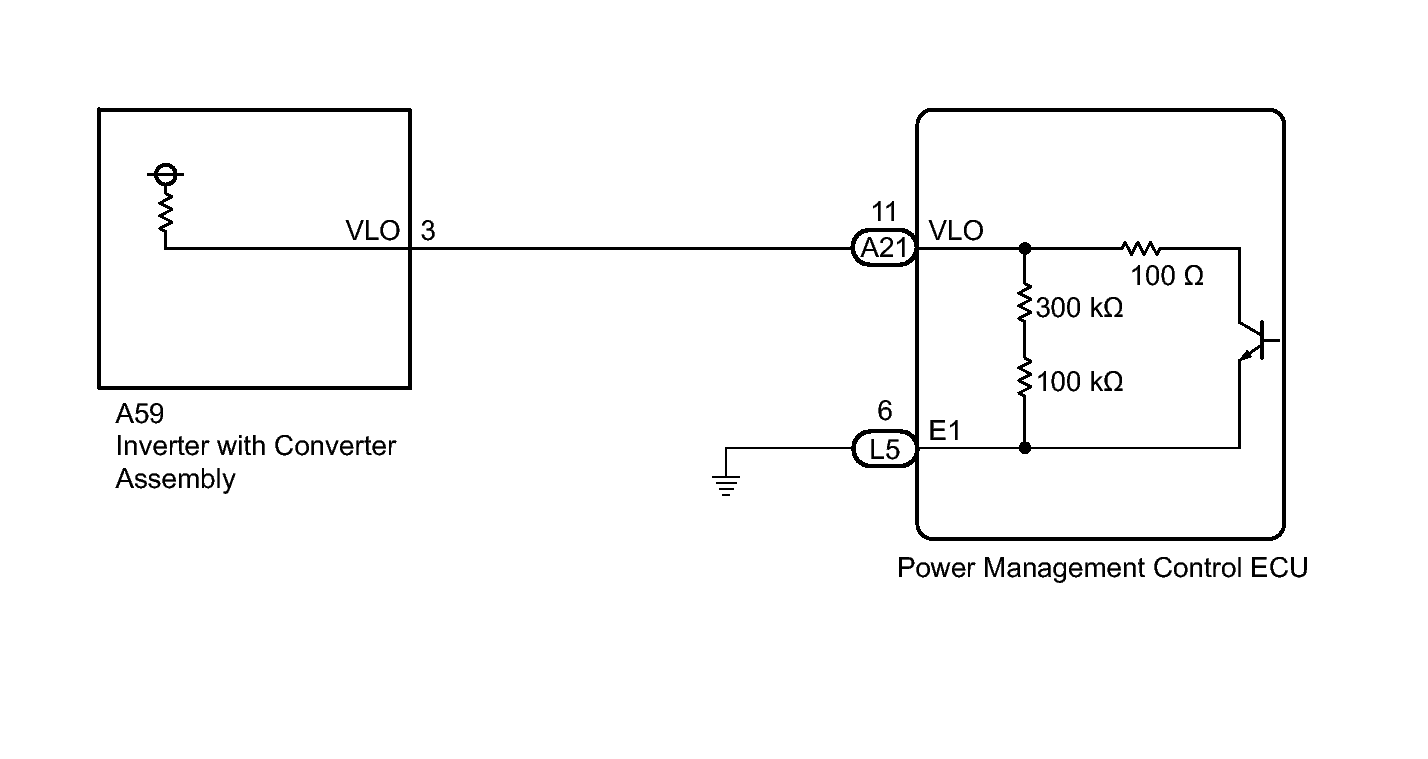

Fig 1: Inverter With Converter Assembly Circuit Wiring Diagram

GTY337773

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
