DTC P0340-886: Camshaft Position Sensor "A" Circuit: Wiring Diagram

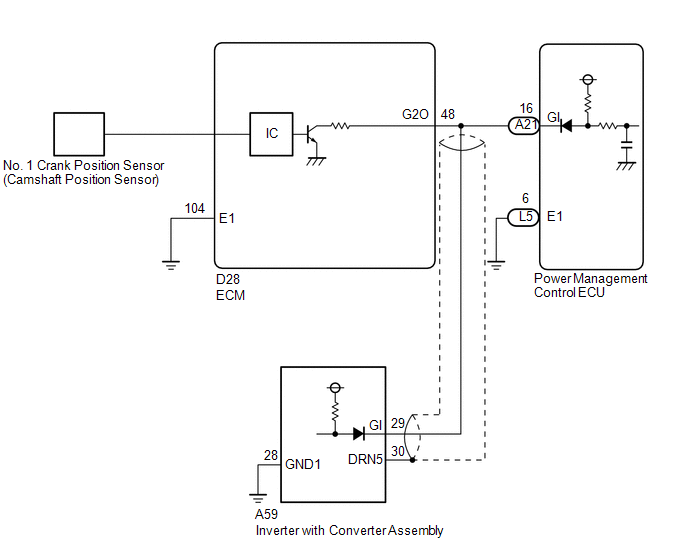

Fig 1: Camshaft Position Sensor "A" Circuit Wiring Diagram

GTY331984

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
